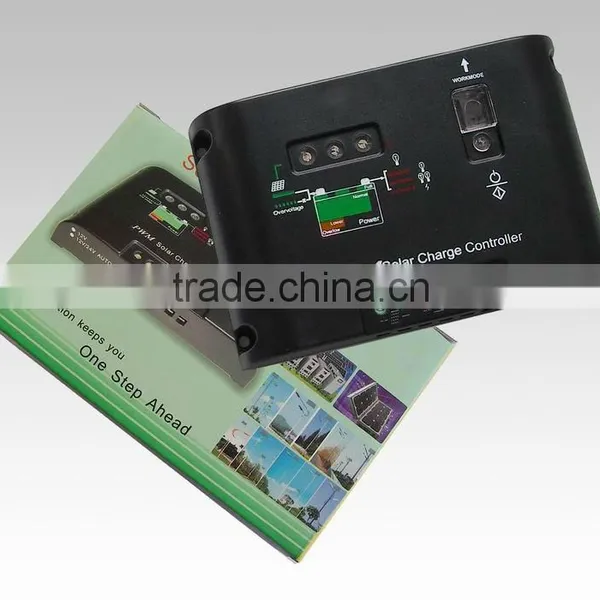

DC12/24V 10A/20A PWM 12/24/48V 30A/40//50/60/80A CE RoHS Passed Solar Led Controller

Name: DC12/24V 10A/20A PWM 12/24/48V 30A/40//50/60/80A CE RoHS Passed Solar Led Controller
Brand: PETC
SKU: 134137929

US$ 7.5 - 8.5 MOQ: 30 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

PETC

Model Number:

PETC-K01

Shenzhen Mini Electronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen/HK

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name PETC

Model Number PETC-K01

Application Other, Solar System Controller, Solar light ,solar power sytem

Rated Voltage Other, 12V/24V

Maximum Current 10A

Specifications

1.Solar charger controller
2.System voltage 12V 24V/12V AUTO
3. PWM control model
4.Lighting and timing control
5.CE Rohs

ROSH approved solar controller wind generator battery charge controller

Technical parameters of the Solar Charge Controller :

Items	Solar Charge Controller
Model	EPRC - 10LED – W EPRC - 20LED - W
Rated Charge Current	10A, 20A(12V/24V Auto)
Rated Load Power	10A Rated Voltage:12V:≤50W Rated Voltage:24V:≤100W 10A Rated Voltage:12V:≤100W Rated Voltage:24V:≤200W Note:Depend on the power of LEDs
Constant power control precision	>5%
Overload, short circuit protection	1.25 times rated current 60 seconds. 1.5 times rated current 5 seconds overload protection.
System Voltage	12V/24V Auto
No-load Consumption	≤6mA
Recharge circuit reduction voltage	≤0.26V
Discharge circuit reduction voltage	≤0.15V
Overpressure protection	17V, ×2/24V
Ascending recharging voltage	1.46 V, X 2/24V, Time 10min, (only when the discharge calls)
Balanced recharging voltage	14.4 V, X 2/24V, Maintain time :10min
Floating charging	13.6 V, X 2/24V, maintain Time: (until) voltage recharge returns
Charging return volatage	13.2v; ×2/24V(ascension, straight, floating and charging returns voltage compensation),
Overcharging return volatage	12.6 V, X 2/24V
Out of volatage	12.0V; ×2/24V;
Overdischarge voltage	11.1 V - the discharge rate consumption initial Over discharge voltage (no-load voltage), X 2/24V
Temperature compensation	-5mv/°C/2V
Working temperature	Industry-specific:-35°C~55°C(suffix I)
Control Type	Charging: PWMpulse width modulation, Output: Constant power
Function	Timer and light controlled
Fit for	Solar Home System,Solar Energy system,Solar Light, Solar Garden Light, Solar Power Supply, etc.
Warranty	One-year quality warranty
