Specifications
12v 24v auto time and light solar charger controller1.Solar charger controller
2..12v 24v auto charger
3. 10A-20A
12v 24v auto time and light solar charger controller to protect devices
Technical parameters of the Solar Charge Controller
Items |
Solar Charge Controller |
Model |
EPRC - 10LED – W EPRC - 20LED - W |
Rated Charge Current |
10A, 20A(12V/24V Auto) |
Rated Load Power |
10A Rated Voltage:12V:≤50W Rated Voltage:24V:≤100W 10A Rated Voltage:12V:≤100W Rated Voltage:24V:≤200W Note:Depend on the power of LEDs |
Constant power control precision |
>5% |
Overload, short circuit protection |
1.25 times rated current 60 seconds. 1.5 times rated current 5 seconds overload protection. |
System Voltage |
12V/24V Auto |
No-load Consumption |
≤6mA |
Recharge circuit reduction voltage |
≤0.26V |
Discharge circuit reduction voltage |
≤0.15V |
Overpressure protection |
17V, ×2/24V |
Ascending recharging voltage |
1.46 V, X 2/24V, Time 10min, (only when the discharge calls) |
Balanced recharging voltage |
14.4 V, X 2/24V, Maintain time :10min |
Floating charging |
13.6 V, X 2/24V, maintain Time: (until) voltage recharge returns |
Charging return volatage |
13.2v; ×2/24V(ascension, straight, floating and charging returns voltage compensation), |
Overcharging return volatage |
12.6 V, X 2/24V |
Out of volatage |
12.0V; ×2/24V; |
Overdischarge voltage |
11.1 V - the discharge rate consumption initial Over discharge voltage (no-load voltage), X 2/24V |
Temperature compensation |
-5mv/°C/2V |
Working temperature |
Industry-specific:-35°C~55°C(suffix I) |
Control Type |
Charging: PWMpulse width modulation, Output: Constant power |
Function |
Timer and light controlled |
Fit for |
Solar Home System,Solar Energy system,Solar Light, Solar Garden Light, Solar Power Supply, etc. |
Warranty |
One-year quality warranty |
Function & Feature of the Solar Charge Controller
1. Voltage: 12V/24Vdc
2. Current: 5A/10A/15A/20A/25A/30A for option
3. Solar controller water proof
4. Easy installation
5. Expected 10 years lifetime
6.2 year warranty
Control of the Solar Charge Controller
1. Charge and discharge control
2. Light Control
3. Time Control
4. Light and Time control
5. PWM Control
Electrical parameters of the Solar Charge Controller
1.System voltage:12/24VDC Auto work
2.Nominal battery current: 5A 10A 15A 20A 30A
3.Charge circuit voltage drop less than 0.26V
4.Discharge circuit voltage drop: less than0.15V
5.Self consumption: less than5mA
6.Battery voltage parameters
Applications of the Solar Charge Controller
Ideal for off grid solar system that loads are normally on or controlled by manual
1. Solar home system
2. Solar CCTV system
3. Solar traffic system
4. Wild automatic detection equipment.
5. Solar water pump system
6. Intelligent solar controller
7. For solar water heating system
8. etc
Photos of the Solar Charge Controller for refer
Our related solar items connected with the solar controller :
solar power system kit , there is a 10A solar controller

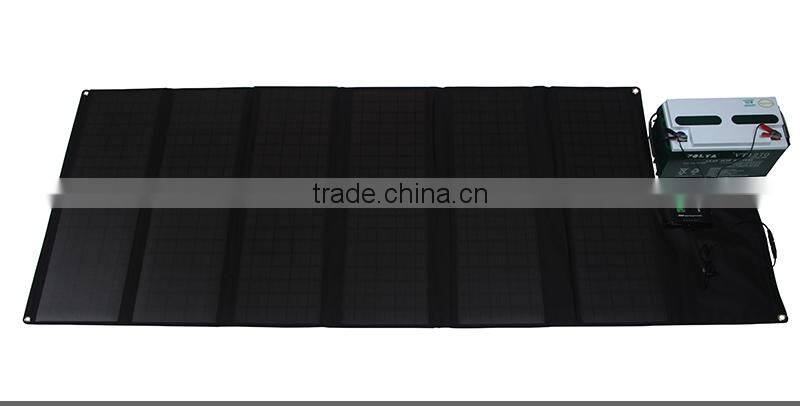

100W mono solar folding panel
40W mono folding panel charger
60W sunpower charging for the 12V car battery connected with the 10A controller
