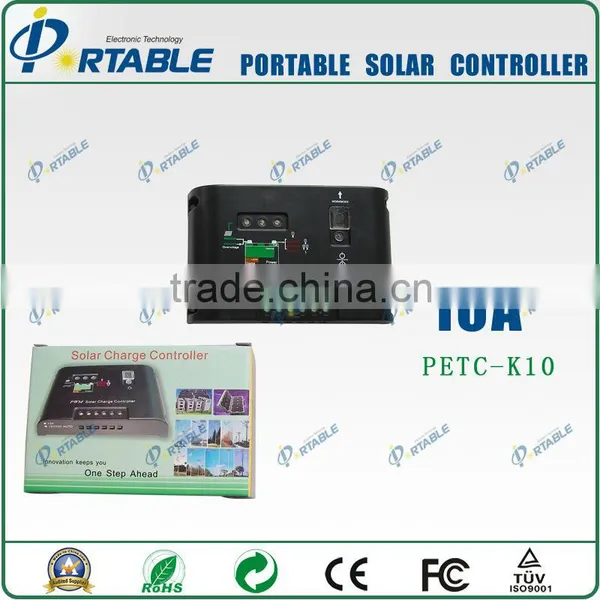

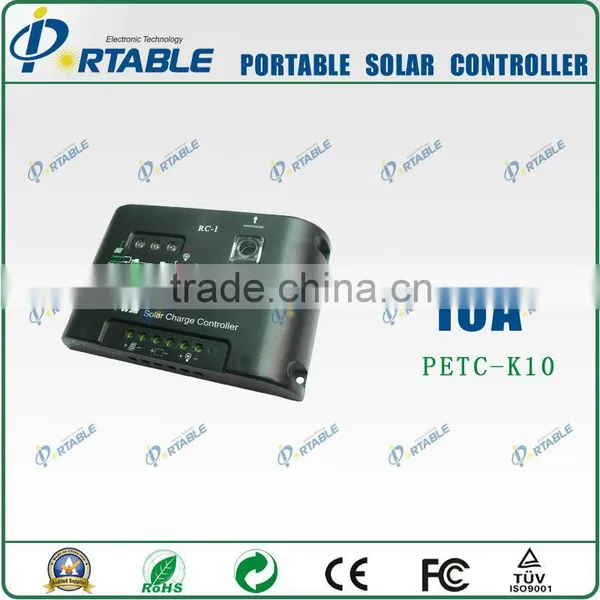

PWM Solar Controller With Timer and Lighting Controlled 10A

PWM solar controller with Timer and Lighting Controlled 10A

Technical parameters of  PWM solar controller

Features of PWM solar controller  :

1, Intelligent control. Specially designed for the constant power control output for LED light source, more advanced than output ways of constant-current control, more efficient, control conversion efficiency can reach above 90%. And can output power through the setup and fine-tune LED light source. At the same time, it can achieve half power (-TH) of timing, or adjust LED light source output power (- A) automaticlly according to the actual power of the battery, greatly improving the supply power rate of system. (also can realize constant current output control).

2, Soft start-up function and continuous stepless adjustment light function.

3, Fixed accurate discharge control by using discharge rate features of battery. The discharge end voltage is the control point which is fixed by discharge rate curve, eliminating the inaccurate of the pure control to the valtage overdischarging, according with the inherent characteristics of battery namely different discharge rate has different end voltage.

4, Complete protection: fully automatic control and protection of overcharging, over discharging, short circuit, overload, unique counter-attack connect, reverse current, reverse polarity, lighting, etc. All above protection without causing damage to any component, not burning insurance.

5, Tandem PWM charging main circuit, can reduce the 50% loss of the charging circuit than using diode recharging circuit, charging efficiency is 3% - 6% higher than non-PWM, increased the using power time. Ascending charging after overdischarging restore, normal balance charging, floating charging of automatic control mode can extend battery life, high precision temperature compensation.

6, LED displays the relevant parameters of solar charge controller and work status.

7, All control use industrial chip (only to suffix I-industry-specific controller), operation free in high temperature, moisture environment. Use crystals timing control, realize accurate timing control.

8, Flash memory make each work control point recorded, cancel potentiometer adjust control setting point, making setting digitization and eliminate factors which reduce the accuracy and reliability, such as the deviation of potentiometer vibration.

9, Digital LED display and setting a key type to complete all Settings, very convenient.

10, Controller has moisture-proof function.

11, Convenient wiring, simple installation without Day-to-day maintenance, service life is up to 20 years

Dimension: 140×90×26mm
Weight: 0.26KG

Warranty of PWM solar controller :

1 year, but has no obvious dismantling machine or high breakdown.

2 controller is of low-voltage, project installation shall comply with the principles of safety, avoiding personal safety accidents.

Payment of  PWM solar controller

1)T/T, West Union,Paypal are the payment methods we accept at present.If you need.

2)30% advanced payment,70% balance payment before delivery.

Shipping of solar charger controller

Important information of   PWM solar controller

1) All our solar controller following IEC6125, IEC61730 standard, Have CE, TUV Certifications.

2)The IC is imported from Ereic in America

If you want to learn more PWM solar controller , please contact us !!!
