Specifications
Mechanical OTR tyre vulcanizer1.Mechanical Type
2.BOM
3.88"-122"

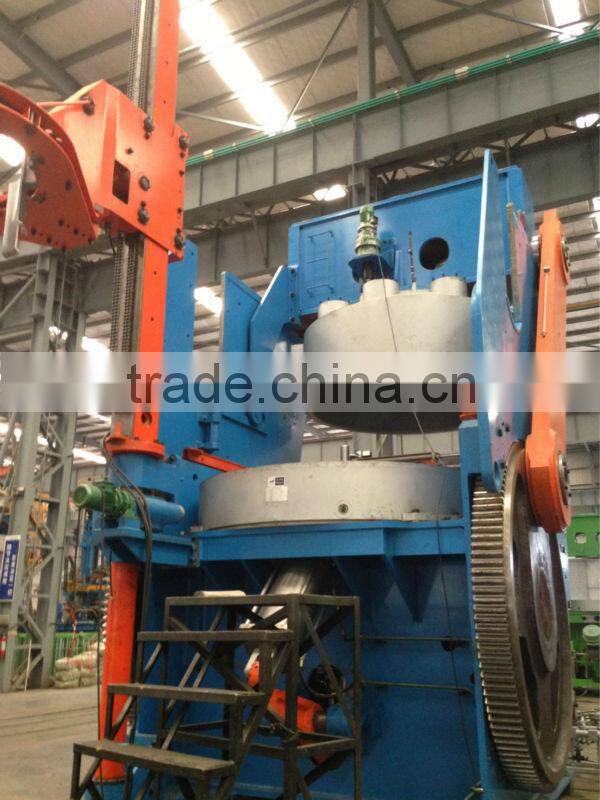

Mechanical OTR tyre vulcanizer
We are one of the best suppliers for new OTR tyre vulcanizer. Our machines are supplied for many famous tyre factories aroud the world.
Type: Mechanical type and Hydraulic type
Our curing presses are supplied for many famous tyre factories around the world, like Michelin, Bridgestone, etc.

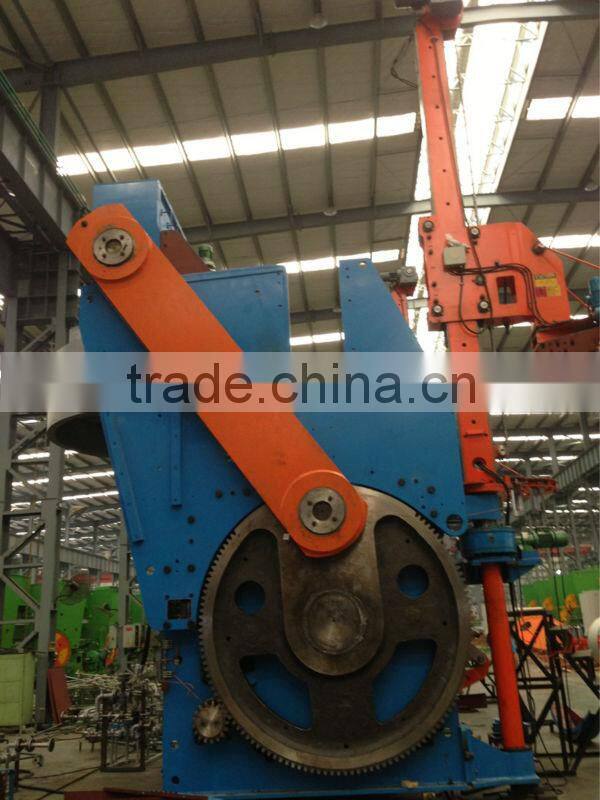

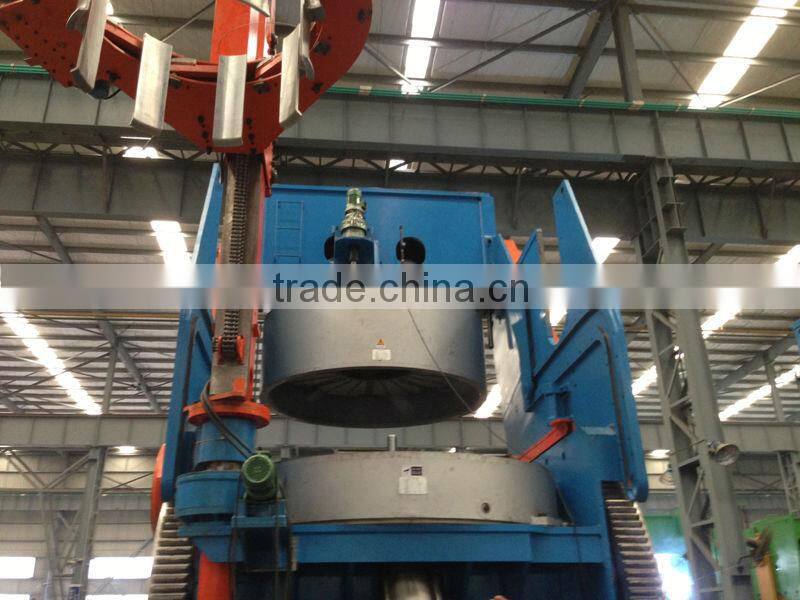

This Curing Press is a mechanical type, the beam moves vertically and horizontally for tyre loading and unloading. The center mechanism is BOM type and the curing mould is heated by Steam Dome. Other features of this type are: Single-Column Vertical Chuck for both tyre loading and unloading, Pro-Bar Style Mould Stripping Unit. As per Customer’s request, Auto Mould-Adjusting Device, SMO Drive Device, PCI and Green Tyre Holder are available. Curing Piping can also be made to order.
This Curing Press uses PLC for Real-time Control, and industrial PC for Human-Machine Operation Interface. All parameters can be re-set during Curing Cycle, and Real-time data collection / preservation, Alarming, as well as data back dating can also be realized through this system. With Ethernet interface, Curing Press Group-Management is available.
Below is example parameter for mechanical type OTR tyre vulcanizer
Item |
|
Parameter |
||||
2250(88") |
2410(95") |
2667(105") |
3000(118") |
|||
Curing Cavity No. |
|
1 |
1 |
1 |
1 |
|
|
Steam Dome Nominal Diameter |
mm |
Φ2250 |
2410 |
Φ2667 |
Φ3000 |
|
Max. Squeezing Force |
kN |
9510 |
9510 |
13685 |
16000 |
|
Mould Height |
mm |
550-920 |
650-940 |
660-1070 |
800-1250 |
|
Center Mechanism |
|
BOM |
BOM |
BOM |
BOM |
|
Tyre Bead Diameters |
in |
24-33 |
24-33 |
24-46 |
25-46 |
|
Max. O.D. of Cured Tyre |
SGM |
mm |
Φ1450 |
1813 |
Φ1981 |
Φ2295 |
2-Piece Mould |
mm |
Φ1800 |
|
Φ2286 |
|
|
Max. Section Width of Cured Tyre |
mm |
595 |
665 |
745 |
840 |
|
Max Green Tyre Height |
mm |
1200 |
1200 |
1800 |
1900 |
|
Designed Mould Open/Close Time |
s |
106 |
129 |
129 |
155 |
|
Max. Load of VCL |
kg |
600 |
800 |
1060 |
1500 |
|
Max Mould Weight |
kg |
|
|
25000 |
|
|
Max. External Pressure |
MPa |
0.9 |
0.9 |
0.91 |
0.9 |
|
Max. Internal Pressure |
MPa |
3.0 |
3 |
2.8 |
3 |
|
Hydraulic Water Pressure |
MPa |
2.1-2.5 |
2.5 |
1.8-2.1 |
2.1-2.5 |
|
Compressed Air Pressure |
MPa |
0.7 |
|
0.7 |
0.7 |
|
Control Air Pressure |
MPa |
0.35 |
|
0.35 |
|
|
If you need more details, please contact us!
We welcome your visiting to our factory.
