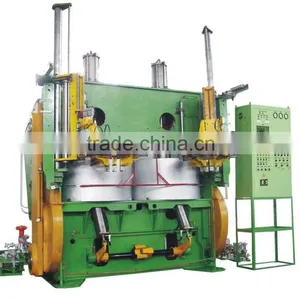

Tire Vulcanizing Machine

Name: Tire Vulcanizing Machine
Brand: PLASTSEA
SKU: 134087263
Availability: InStock

US$ 70,000 - 360,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

PLASTSEA

Qingdao Plastsea International Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO SEAPORT

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name PLASTSEA

Model Number 85"

Voltage 380V

Certification CE

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Tire Vulcanizing machine
1.Size:43",47",51",52",65",etc.
2.Type: BOM
3.Hydraulic and Mechanical
4.Perfect after-sale service

Tire Vulcanizer

Hydraulic tyre and Mechanical type

Vertical motion of curing press;

Adopt segmented mold used fo curing radial tire;

For Curing the high performance tire and flattened tire with high precision

Item		Unit	Specification
			B1145	B1220
Curing cavity No.			2	2
ID of Mould shield		MM	Φ1145	Φ1220
Max squeezing force		KN	1360x2	1960x2
Height of mould		MM	220-440	300-560
Center Mechanism			BOM(Oil hydraulic)	BOM(water hydraulic)
Diameter of suitable tyre bead		Inch	13-18	13-20
Max O.D. of cured tyre	Segmented mold	MM	Φ760	Φ860
	Two piece mold	MM	Φ820	Φ900
Max section width of cured tyre		MM	300	350
Max height of green tyre		MM	440	600
Designed mould open/close time		S	30/26	30/26
Max load of VCL		Kg	50	80
Max weight of mold		Kg	2700	4500
High pressure oil pressure		Mpa	16
Low pressure oil pressure		Mpa	7
Max external pressure		Mpa	1.4
Max internal pressure		Mpa	2.8
Hydraulic water pressure		Mpa		2.1
Compressed air pressure		Mpa	0.7
Control air pressure		Mpa	0.35
PCI inflation pressure		Mpa	0.7
PCI rim width		Mm	100-280		100-330
