Specifications
1.Professional motorcycle/cycle tyre making machines2.Spring Turn-Over Wrap type
3.Good quality with competitive price

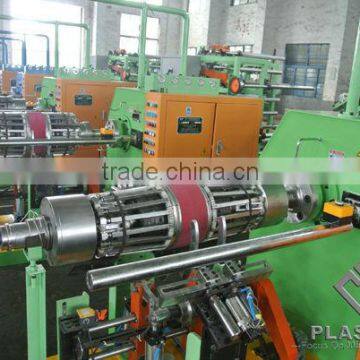

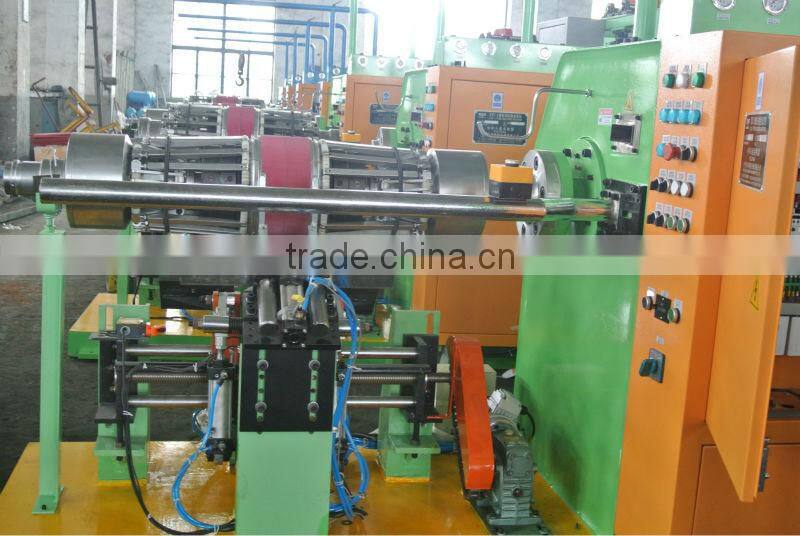

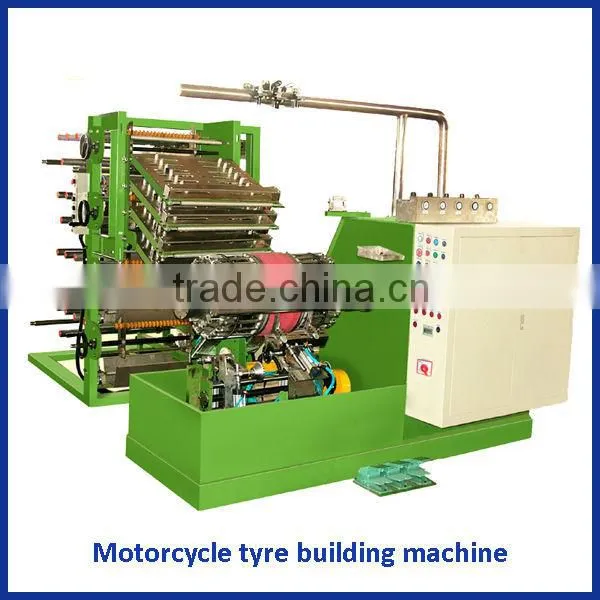

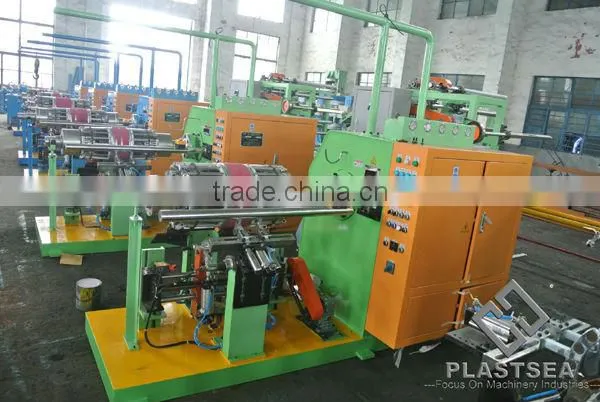

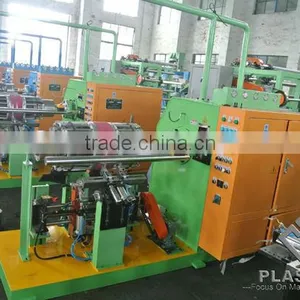

Motorcycle Tyre Building Machine
(spring turn-up building machine)
Application
This building machine is commonly used for tire building equipment in domestic & overseas at present, mainly used for produce motorcycle tire and motorcycle tubeless green tire building. Integration of PLY applying, bead applying & cord turm-up, high degree of automation, good quality green tire building, easy and simple operation, it is advanced tire building equipment in China.
Structure features
It consists of building drum, down compression roller, bead suction device, cord fabric, tread infrared centering device, compacting mechanism, servicer etc.
Technical parameter
Product Type | M/C-STB0815 | M/C-STB1621 |
Forming mode | Flat drum expansion | Flat drum expansion |
Applicable tire size(inches) | 8-15" | 16-21" |
Ply width(mm) | 4 | 4 |
Ply roll diameter(mm) | ≤500 | ≤500 |
Liner cloth diameter | ≤450 | ≤450 |
Liner cloth diameter(mm) | ≤250 | ≤250 |
Building machine speed(r/min) | 35/120 | 35/120 |
Motor power(kw) | Host 2.2 servicer 0.75×4 | Host 2.2 servicer 0.75×4 |
Dimension(L×W×H)(mm) | 3800×2260×1930 | 3800×2260×1930 |
Weight(kg) | 3300 | 3300 |

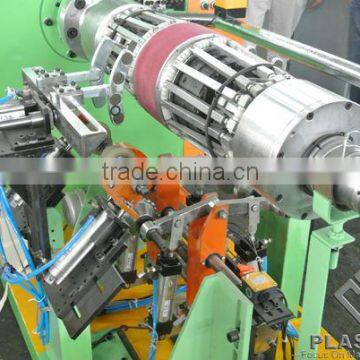

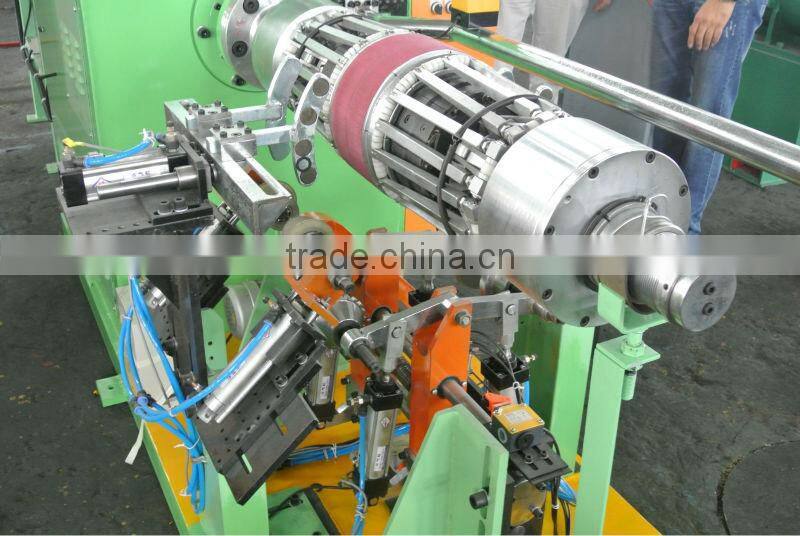

Building Drum
Motorcycle Tyre Building Machine
If You have such inquiry, Welcome you to send us your detailed requirement.
