Specifications
Motorcycle tyre press1. Hydraulic type
2. Six Presses with one hydraulic station
3. Working Layer:6

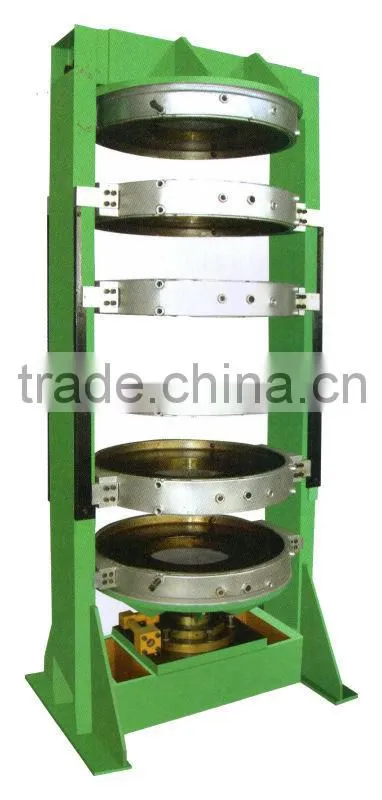

Motorcycle tyre hydraulic curing press (multi-layer)
We are the leading motorcycle/bicycle tyre machines supplier in China.
Welcome your visiting to our factory for further discussion.
Application
For various electric vehicles, motorcycle tire curing, except man operated tire loading and removal, the entire curing process is automatically controlled.
Structure features
The machine is of side frame structure, with two side boards harden into one integral upper and down beams. The hot plate is placed between the upper and lower beams. The whole machine is fixed stable with small noise and small quantity of consumable parts. Electrical parts used linkage, manual, single exchange system and PLC control system, which is simple, safe and reliable.
Technical parameter
Product Type |
YLL-760 |
YLL-600 |
Nominal mold clamping force(KN) |
60 |
60 |
Working layers(layer) |
6 |
6 |
Inner diameter of steam chamber(hot plate outer diameter)(mm) |
Φ760 |
Φ600 |
Plunger diameter(mm) |
Φ200 |
Φ200 |
Steam working pressure(Mpa) |
0.6-0.8 |
0.6-0.8 |
Inner pressure working pressure(Mpa) |
1.0-1.2 |
1.0-1.2 |
Motor Power(kw) |
18~22 |
18~22 |
Dimension(L×W×H)(mm) |
1090×870×2800 |
1090×870×2800 |
Weight(kg) |
4500 |
4000 |

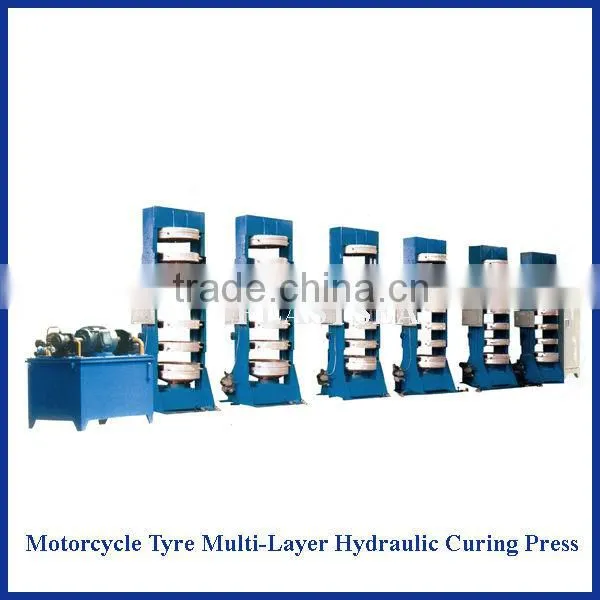

Six curing presses are driven by one set of hydraulic station.
Stable quality with competitive price
