Specifications
Tube curing press1.Six unit each group
2.Double daylight each press
3.Closing Force: 20Tons

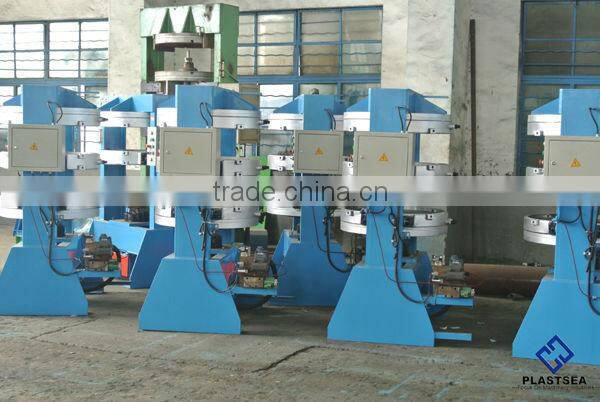

Hydraulic motorcycle tyre Inner Tube curing press
Two-day-light tube curing press
Application
For various bicycle, motorcycle tube curing, except man operated tube loading and removal, the entire curing process is automatically controlled.
Structure features
LLN-25/2 two-day-light hydraulic tube curing press is according to the technic characteristics of inner tube curing, takes hydraulic plunger vertically for the lower, hot plate, a hydraulic station can control six double inner tube curing machine. In order to increasing the clamping(clamping) force, getting stable and reliable machine operation with low noise, its electrical parts adopts two ways of manual and linkage, equipped with PLC control system, thus ensuring simple, and reliable operation.
Technical parameter
Product Type | LLN-25/2 |
Vulcanized tube specifications | 28”(The following) |
Maximum clamping force(KN) | 255 |
Maximum diameter of hot plate(mm) | 760 |
Applicable mold height(mm) | 70~120 |
Hot plate opening and closing time(s) | 4 |
Motor Power(kw) | 7.5 |
Hot plate steam pressure(Mpa) | 0.8 |
Tube curing inner pressure(Mpa) | 0.8-1.0 |
Dimension(L×W×H)(mm) | 1280×900×1770 |
Weight(kg) | 1600 |

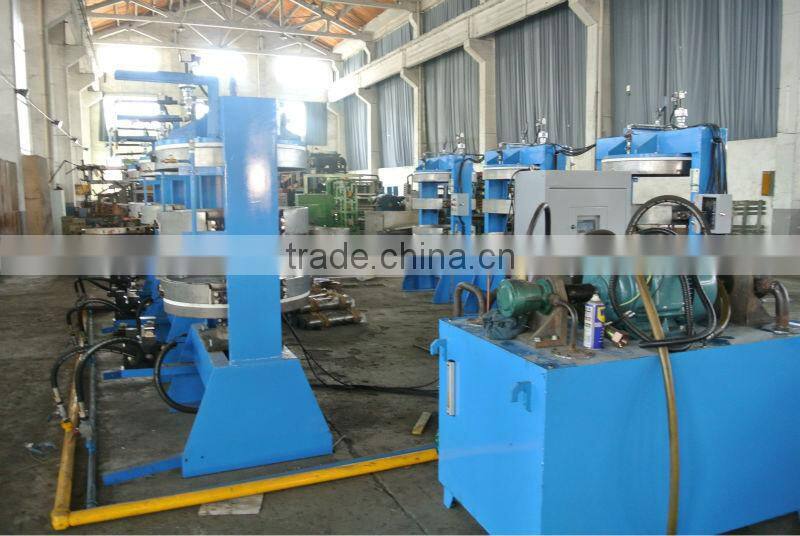

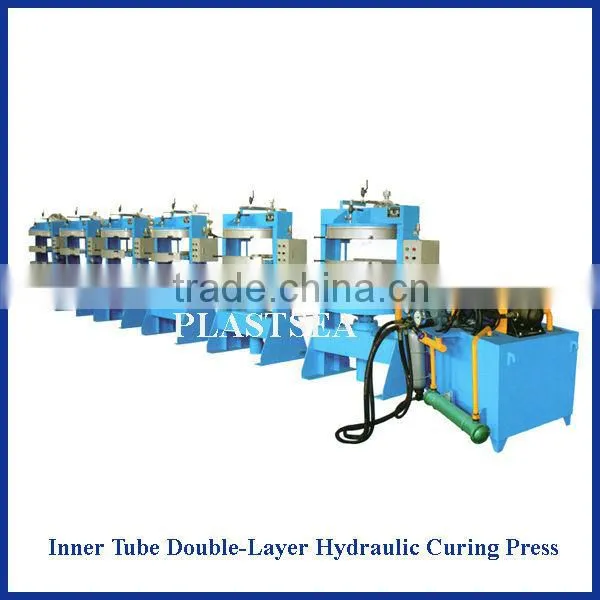

Six sets of presses are driven by one hydraulic station.
Two working layers
Stable performance and reliable quality
Welcome your visiting to our factory!
