Specifications
Inner Tube Production Line for Motorcycle/Bicycle Tyre1. Automatic operation
2.Stable quality with competitive price
Automatic Cycle Tube Production Line
Application
This production line is used for making the inner tube with rubber base tube valve, also can be used for common valve of bicycle and motorcycle inner tube production.
Structure
This line is mainly composed of cooling shrinkage dry, sensor length measurement &cutting device, automatic hole punching & Valve fixing device, both inside and outside release agent powder spraying device & Pick-up.
Main Parameter
Type | Motorcycle/Bicycle Inner Tube | Tyre Inner Tube |
Width of double layer tube (mm) | <200 | <420 |
Linear speed (m/min) | 10-34 | 8-35 |
Punching Diameter (mm) | 6-8 | 8-10 |
Air pressure (Mpa) | 0.6 | 0.7 |
Total Capacity (KW) | 14 | 22 |
Overall size (LxWxH) m | 23.5x1x0.85 | 35x1.3x0.85 |
Weight (kg) | Approx 5000 | Approx 7000 |
|
|
|

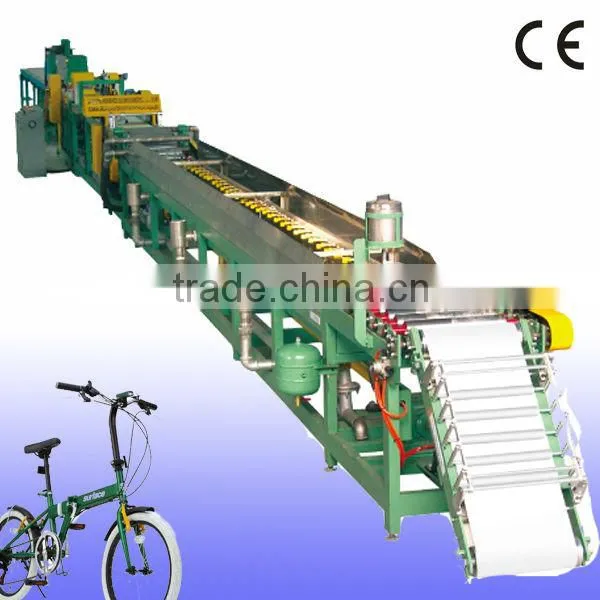

Whole Production Line
Tube valve punching device
Dry Device
Cutting Device
Electric Control Panel
