p8 Outdoor Led Display,P8/p6/p10 Smd Outdoor Led Screen

Name: p8 Outdoor Led Display,P8/p6/p10 Smd Outdoor Led Screen
Brand: tenbull
SKU: 134083225
Availability: InStock

US$ 39.5 - 40 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

tenbull

Model Number:

Shenzhen Tenbull Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name tenbull

Model Number P8

Usage Outdoor

Tube Chip Color Other, RGB

Display Function Video

Pixels Other, 8MM

Screen Dimension 256*128MM

Specifications

p8 outdoor led display

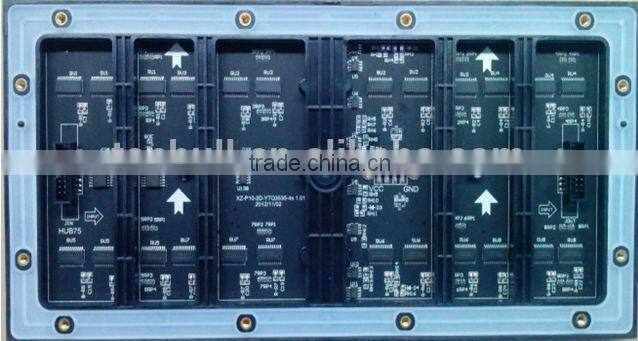

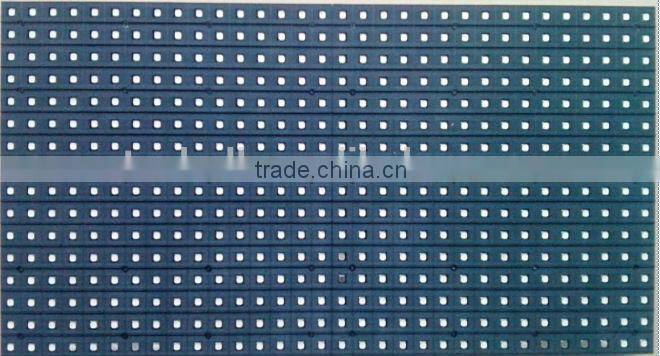

P8 led module Size:256*128MM
Resolution:32*16dots
Density:15625dots m
Scanning:1/4

p8 outdoor led display Parameter
Module Technical parameters		UNIT	parameters values
Pixel pitch		MM	8
Panel size		MM	L:256 X H:128X13
Physical density		/M²	15625
Pixel configuration		R/G/B	1,1
Driving method			1/4 Constant current 1/4scan
LED Encapsulation		SMD	3535
Display resolution		DOTS	32X16=512ots
Module weight		KG	0.20
Module port			HUB75-B
Module working voltage		VDC	5
Module consumption		W	25
Cabinets Technical parameters
Viewing angle	Deg.		H120 V120
Option distance	M		8-120
Driving device			2016/5020
Every square metre module	PCS		30.5
Maximum power	W/ M²		762
Frame Frequency	HZ/S		≥60
Refresh frequency	HZ/S		≥1200
Equilibrium brightness	CD/ M²		≥5500
Working environment temperature	⁰C		-10~60
Working environment humidity	RH		10%~70%
Display working voltage	VAC		AC46~54HZ,220V±15%/110V±15%
Colour temperature			9500K-11500K
Gray scale/color			≥16.7M color
nput signal			RF S-Video RGB etc
Control system			PCTV nonlinearity card, display card,Linsn control system
Mean free error time	HOURS		>5000
Life	HOURS		100000
Lamp failure frequency			<0.0001
Antijam			IEC801
Safety			GB4793
Resist the electricity			1500V last 1min No breakdown
Steel box weight	KG/ M²		25(standard steel box)
Earth leakage current	mA
IP rating			The back IP40,The front IP50
Steel box size	mm		L768XH768X100
