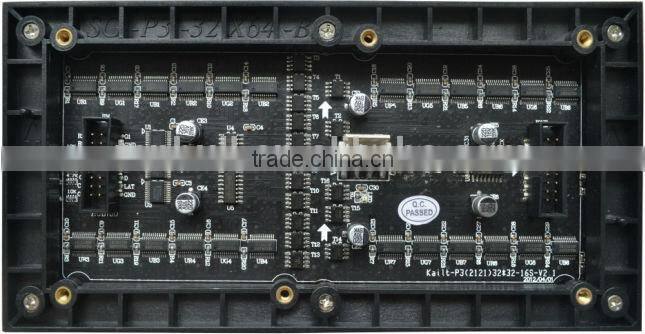

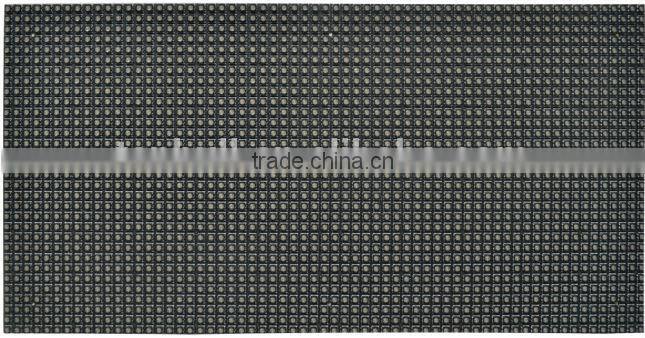

P3 Led Screen Panel Indoor Full Color

P3-SMD Indoor  Module and Cabinet Specification

Parameter(Module)

Parameter(Cabinet)

Item

Parameter

Item

Simple Cabine

standard  Cabinet

rent aluminum  Cabinet

Pixel Pitch

3mm

Cabinet size

960mm*960mm

960mm*960mm

576*576mm

Best Viewing Distance

10-25m

Cabinet Resolution

320 dot*320 dot

320dot*320dot

192dot*192 dot

Density

111111 dot/sq

Cabinet Weight

18.6kg

18.6kg

8kg

Brightness

≥1200nite

Protection Degree

IP63

IP65

IP30

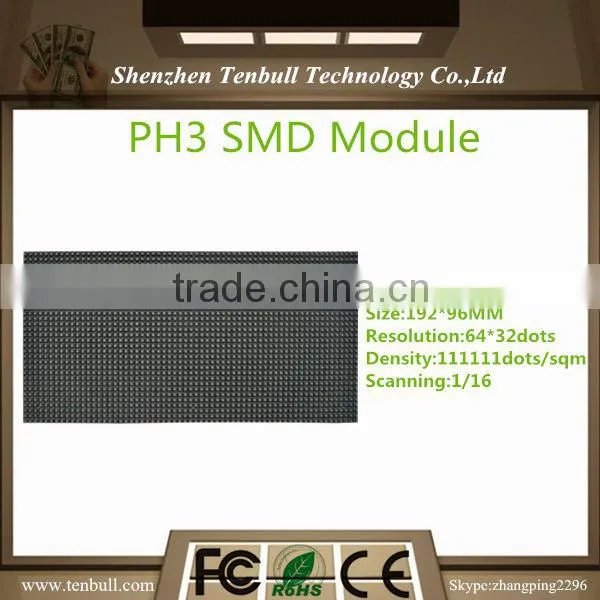

Module Resolution

64dot*32dot

Refresh Rate

1000-4000Hz

LED Standard

SMD2121 1R1G1B

MTTF

>5000 hours

Driving method

1/16 Scan

Malfunction dot rate

<0.0001

Viewing Angle(H/V)

H: 120° V: 100°

Life Span

>100000 hours

Module Size

192mm*96mm*11mm

Operating Voltage

110V-240V AC±10%50-60Hz

Module Power

40W

Working Temperature

-30°C---+50°C / 10%-90% RH

Module Weight

320g

Working  Humidity

-40°C---+60°C / 10%-90% RH

quantity module/sqm

54.25

Input Signal

RF, S-VIDEO, RGBHV, YUN, YC & COMPOSITION, etc

Useage

indoor

Communication Link

CAT5 Cable(Length≤1430m);Optical (Length≤20Km)Optional

Remarks:The above-mentioned data only for reference,they can be adjusted according to

customers needs.
