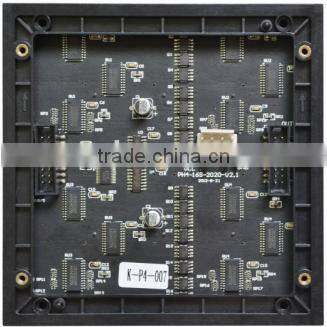

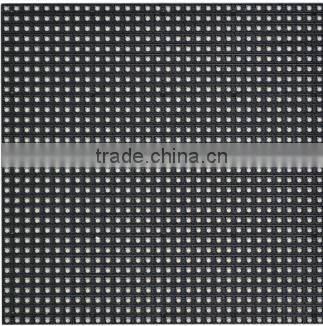

P4 Led Screen Panel Indoor Full Color

Name: P4 Led Screen Panel Indoor Full Color
Brand: tenbull
SKU: 134083199
Availability: InStock

US$ 22 - 22.5 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

tenbull

Model Number:

Shenzhen Tenbull Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name tenbull

Model Number P4

Usage Indoor

Tube Chip Color Other, RGB

Display Function Video

Pixels Other, 4MM

Screen Dimension 128*128MM

Specifications

P4 led screen panel indoor full color
P4 led module Size:128*128MM
Resolution:32*32dots
Density:62500dots/sqm
Scanning:1/16

P4 led screen panel indoor full color

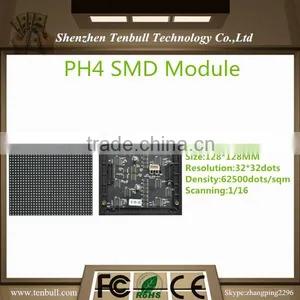

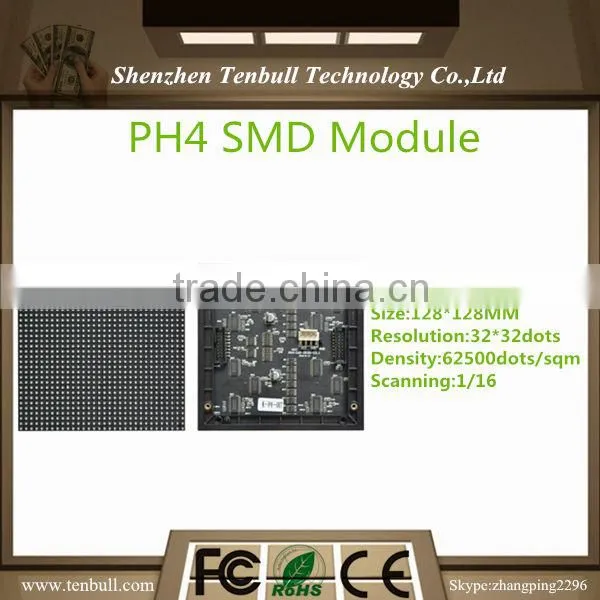

P4-SMD Indoor Module and Cabinet Specification
Parameter(Module)		Parameter(Cabinet)
Item	Parameter	Item	Simple Cabine	standard Cabinet	rent aluminum Cabinet
Pixel Pitch	4mm	Cabinet size	512mm*512mm (Customizable)	512mm*512mm (Customizable)	512mm*512mm (Customizable)
BestViewing Distance	4-10m	Cabinet Resolution	128 dot*128 dot	128 dot*128 dot	128 dot*128 dot
Density	62500 dot/sq	Cabinet Weight	15kg	16kg	8kg
Brightness	≥1500nite	Protection Degree	IP63	IP65	IP30
Module Resolution	32dot*32dot	Refresh Rate	1000-4000Hz
LED Standard	SMD2121 1R1G1B	MTTF	>5000 hours
Driving method	1/16 Scan	Malfunction dot rate	<0.0001
Viewing Angle(H/V)	H: 120° V: 100°	Life Span	>100000 hours
Module Size	128mm128mm11mm	Operating Voltage	110V-240V AC±10%50-60Hz
Module Power	40W	Working Temperature	-30°C---+50°C / 10%-90% RH
Module Weight	320g	Working Humidity	-40°C---+60°C / 10%-90% RH
quantity module/sqm	30.51	Input Signal	RF, S-VIDEO, RGBHV, YUN, YC & COMPOSITION, etc
Useage	indoor	Communication Link	CAT5 Cable(Length≤1430m);Optical (Length≤20Km)Optional
Remarks:The above-mentioned data only for reference,they can be adjusted according to customers needs.
