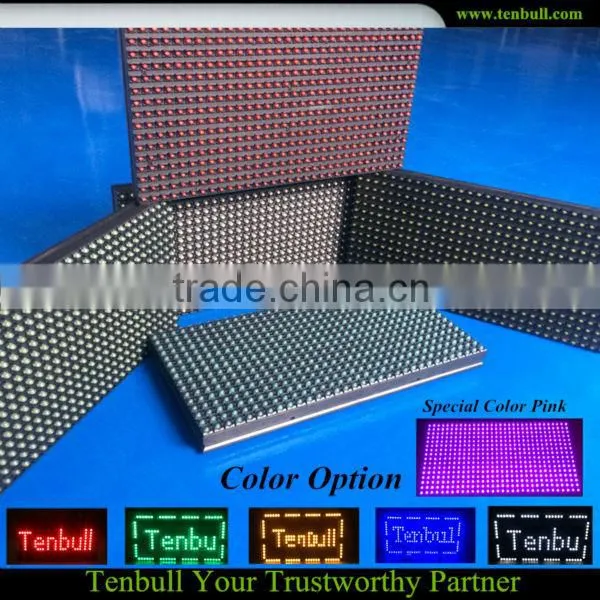

p10(1r)-v701c outdoor led module, p10 single color red/white/green/yellow/blue option

P10-RED Outdoor Module Specification

Item

Parameter

Pixel Pitch

100mm

Resolution of Module

32×16dots

Module Size

320×160mm

Led Package

DIP Oval 546 Lamp

Pixel Configuration

R/1G/1B/1W/1Y Optional

Chip Brand of LEDs

TaiWan/Silan/Epistar/Cree/Nichia

Module Weight

0.59kgs/pcs

Pixel Density

10,000dots/sqm

Brightness (White Balance)

2500nits(cd/sq.m)

Scan Mode

1/4 Scan

The best viewing distance(m)

5-100M

The best viewing angle:

110deg.

Module Maximum Power

20W

Max. Power Consumption

400W/sq.m

Avg. Power Consumption

100-250W/sq.m

Working Voltage

40A 5V

Power Supply

AC 110/220V

Waterproof Grade

IP65

Refresh Rate

300Hz/S

Frame Rate

Hz/S≥ 60

Gray Scale

256 grade

Display Function

Texts

Input Signal

RS232/485, USB,Ethernet

Defective Dot Rate

 <0.0001

Life Span

 hours≥100,000

MTBF

 hours≥5,000

Operating Temperature

 -20°C~+60°C

Working Humidity

10%-90%RH

Control System

Asynchronous or Synchronous

Quality Certificate

CE,RoHS,FC,ISO9001:2008

Warrenty

1 Year

Note: The above parameter is just for reference. Changes can be made according to customers' requirements.
