Specifications
p10 Yellow led moduleP10 led module Size:320*160MM
Resolution:32*16dots
Density:10000dots/sqm

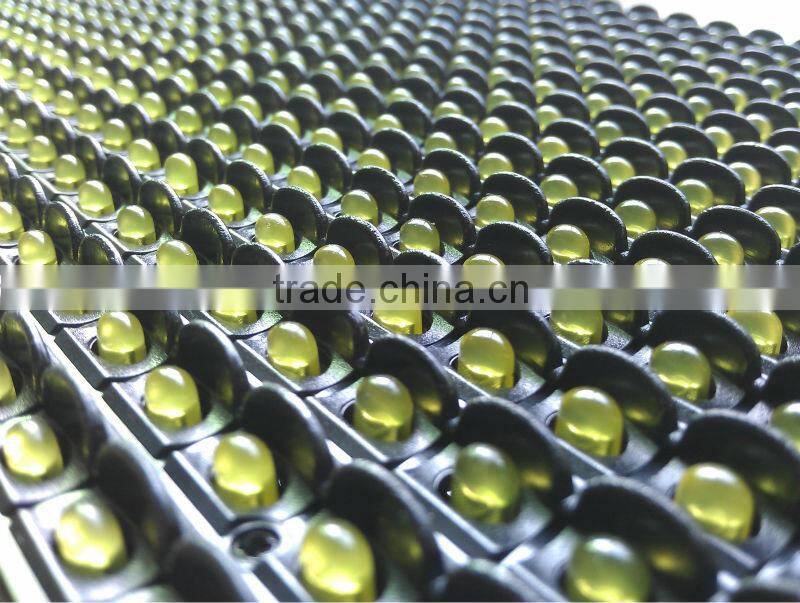

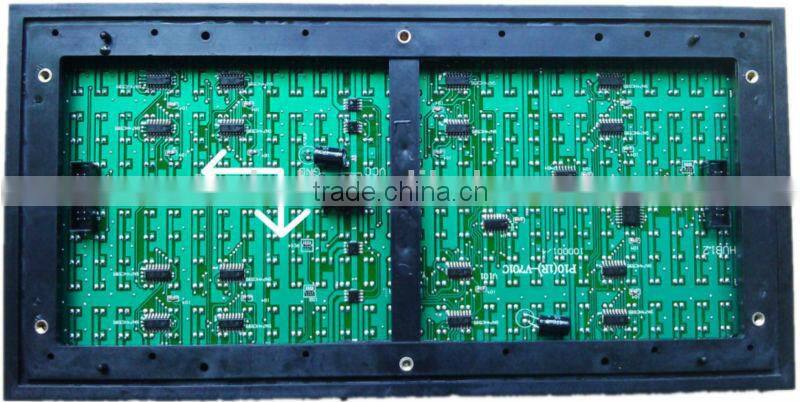

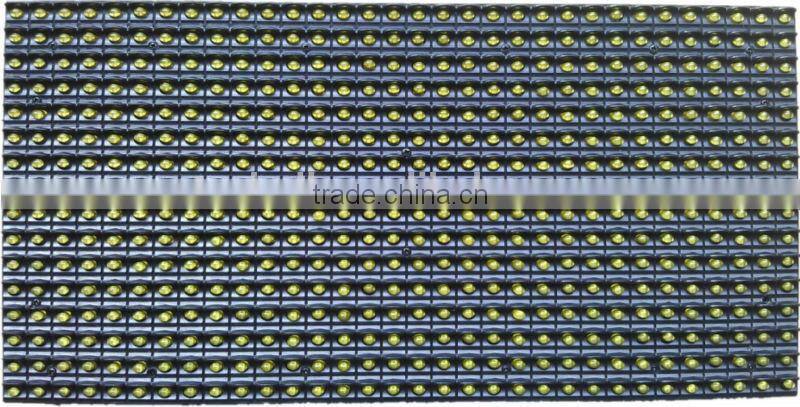

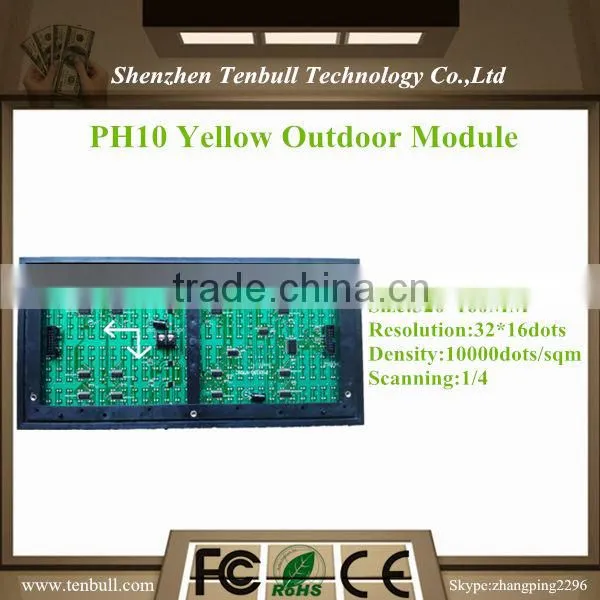

p10 Yellow led module
P10-Yellow Outdoor Module Specification | |
Item |
Parameter |
Pixel Pitch |
100mm |
Resolution of Module |
32×16dots |
Module Size |
320×160mm |
Led Package |
DIP Oval 546 Lamp |
Pixel Configuration |
R/1G/1B/1W/1Y Optional |
Chip Brand of LEDs |
TaiWan/Silan/Epistar/Cree/Nichia |
Module Weight |
0.59kgs/pcs |
Pixel Density |
10,000dots/sqm |
Brightness (White Balance) |
2000nits(cd/sq.m) |
Scan Mode |
1/4 Scan |
The best viewing distance(m) |
5-100M |
The best viewing angle: |
110deg. |
Module Maximum Power |
20W |
Max. Power Consumption |
400W/sq.m |
Avg. Power Consumption |
100-250W/sq.m |
Working Voltage |
40A 5V |
Power Supply |
AC 110/220V |
Waterproof Grade |
IP65 |
Refresh Rate |
300Hz/S |
Frame Rate |
Hz/S≥ 60 |
Gray Scale |
256 grade |
Display Function |
Texts |
Input Signal |
RS232/485, USB,Ethernet |
Defective Dot Rate |
<0.0001 |
Life Span |
hours≥100,000 |
MTBF |
hours≥5,000 |
Operating Temperature |
-20°C~+60°C |
Working Humidity |
10%-90%RH |
Control System |
Asynchronous or Synchronous |
Quality Certificate |
CE,RoHS,FC,ISO9001:2008 |
Warrenty |
1 Year |
Note: The above parameter is just for reference. Changes can be made according to customers' requirements. | |
Professional LED screens& LED Displays Module Manufacturer
-----SMD: p3/p4/p5/p6/p7.62/p10 indoor full color led module and led display.
-----Single Color:P10 red outdoor/P10 White outdoor/P10 Blue outdoor/P10 Green outdoor/P10 Yellow outdoor&SIMI-outdoor led module and led screen
-----Double Color:P10 double color/p16 double color/p20 double color SIMI-outdoor&outdoor led module and led screen
-----all of our led module has highly resolution, good image effect,and easy to install and convenient to carry;
----- Resonable price, good uniformity, stable capability and high brightness;
-----Aluminum alloy material both for fixed installation and hanging rental;
-----Own Unique Design LED Screen
