Product Details
Place of Origin: | Guangdong, China | Brand Name: | tenbull | Model Number: | P10 |
Usage: | Outdoor | Tube Chip Color: | Green | Display Function: | Other, Text |
Pixels: | Other, 10MM | Screen Dimension: | 320*160MM |
Product Description
Specifications

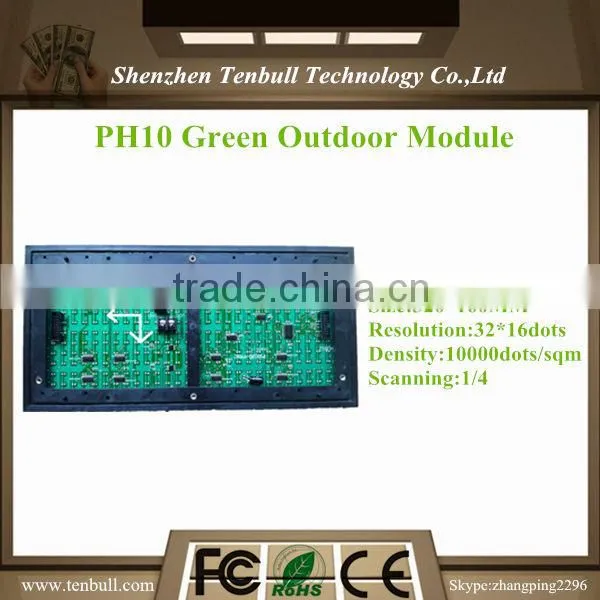

p10 single color green outdoor waterproof moduleP10 led module Size:320*160MM
Resolution:32*16dots
Density:10000dots/sqm

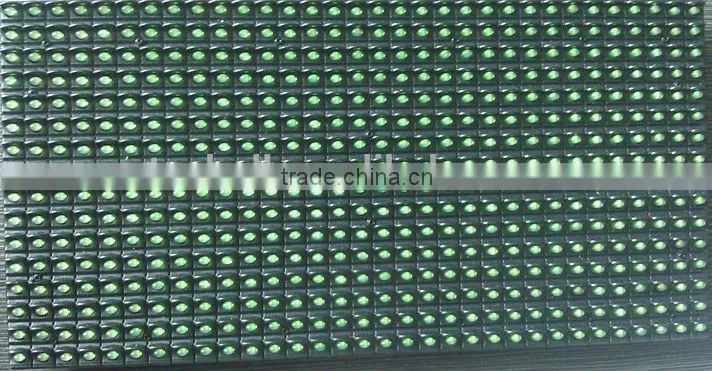

p10 single color green outdoor waterproof module

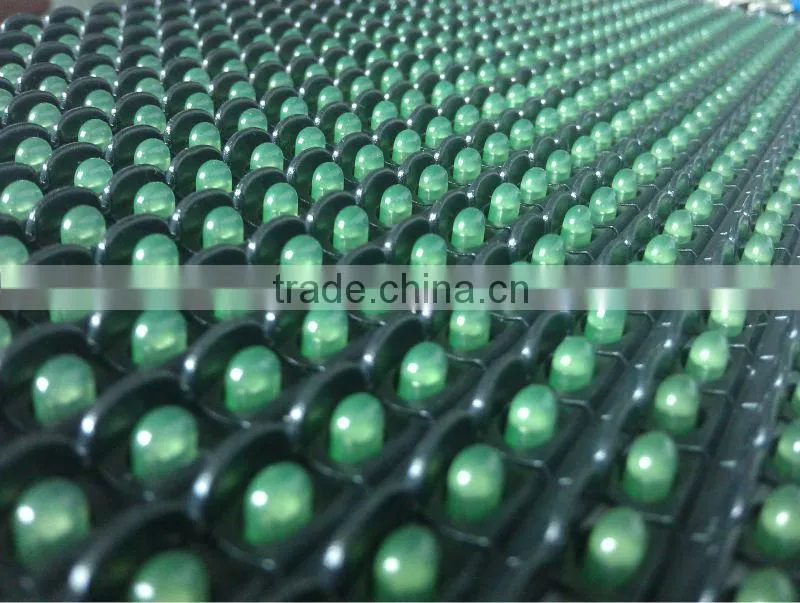

Green LED Parameter
Parameter | Symbol | min | average | max | units | Test condition |
Brightness | Iv | 2100 | 2250 | 2400 | mcd | IF=20mA (Note 1) |
Angle | 2θ1/2 | 55 | 60 | 70 | Deg | Note 2 |
| X | 0.24 | 0.26 | 0.28 |
| IF=20mA |
| Y | 0.25 | 0.27 | 0.29 |
| IF=20 mA |
wavelength | TC | 519 | 520.5 | 522 | nm |
|
VF | VF | 3.2 | 3.3 | 3.4 | V | IF=20mA |
IR | IR | --- | --- | 10 | µA | VR=5V |

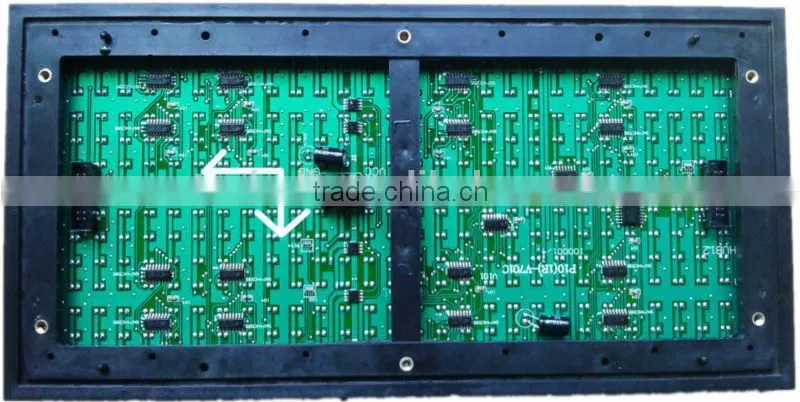

P10-Green Outdoor Module Specification | |
Item | Parameter |
Pixel Pitch | 100mm |
Resolution of Module | 32×16dots |
Module Size | 320×160mm |
Led Package | DIP Oval 546 Lamp |
Pixel Configuration | R/1G/1B/1W/1Y Optional |
Chip Brand of LEDs | TaiWan/Silan/Epistar/Cree/Nichia |
Module Weight | 0.59kgs/pcs |
Pixel Density | 10,000dots/sqm |
Brightness (White Balance) | 2000nits(cd/sq.m) |
Scan Mode | 1/4 Scan |
The best viewing distance(m) | 5-100M |
The best viewing angle: | 110deg. |
Module Maximum Power | 20W |
Max. Power Consumption | 400W/sq.m |
Avg. Power Consumption | 100-250W/sq.m |
Working Voltage | 40A 5V |
Power Supply | AC 110/220V |
Waterproof Grade | IP65 |
Refresh Rate | 300Hz/S |
Frame Rate | Hz/S≥ 60 |
Gray Scale | 256 grade |
Display Function | Texts |
Input Signal | RS232/485, USB,Ethernet |
Defective Dot Rate | <0.0001 |
Life Span | hours≥100,000 |
MTBF | hours≥5,000 |
Operating Temperature | -20°C~+60°C |
Working Humidity | 10%-90%RH |
Control System | Asynchronous or Synchronous |
Quality Certificate | CE,RoHS,FC,ISO9001:2008 |
Warrenty | 1 Year |
Note: The above parameter is just for reference. Changes can be made according to customers' requirements. |
Professional LED screens& LED Displays Module Manufacturer
-----SMD: p3/p4/p5/p6/p7.62/p10 indoor full color led module and led display.
-----Single Color:P10 red outdoor/P10 White outdoor/P10 Blue outdoor/P10 Green outdoor/P10 Yellow outdoor&SIMI-outdoor led module and led screen
-----Double Color:P10 double color/p16 double color/p20 double color SIMI-outdoor&outdoor led module and led screen
-----all of our led module has highly resolution, good image effect,and easy to install and convenient to carry;
----- Resonable price, good uniformity, stable capability and high brightness;
-----Aluminum alloy material both for fixed installation and hanging rental;
-----Own Unique Design LED Screen
