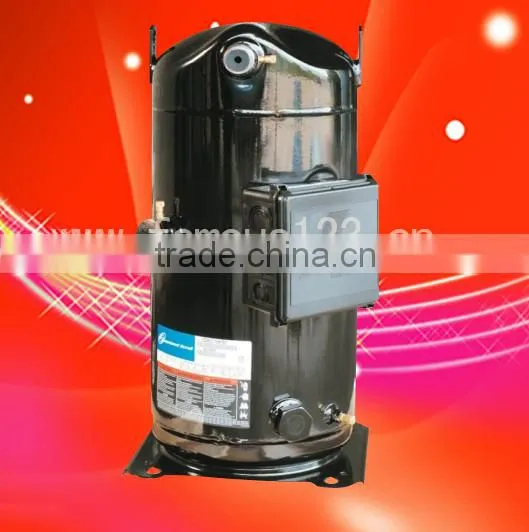

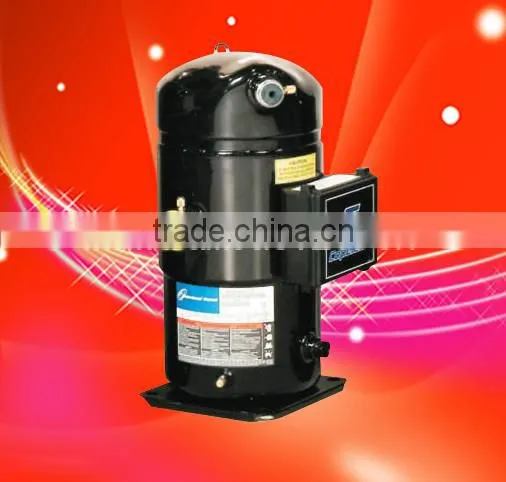

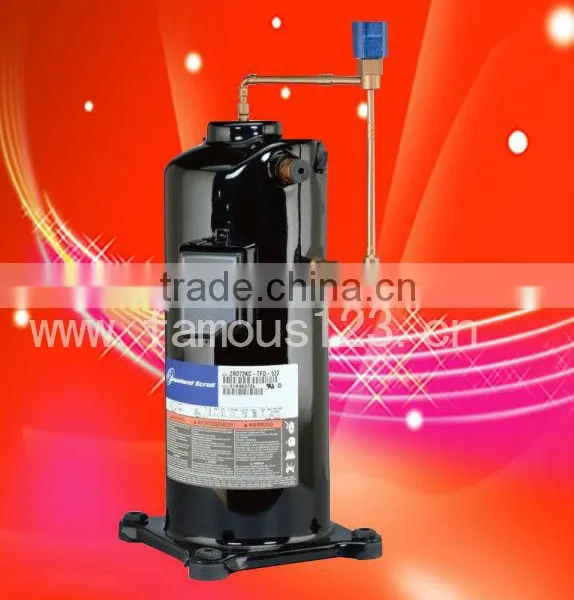

Copeland Compressor
Model: ZR125KCE-TFD
Technical data
| Displacement [m³/h]: | 29,1 | |
| Sound power [dBA]: | 74 | |
| Sound pressure level [dB]: | 63 | |
| Net Weight [kg]: | 61,2 | |
| Gross Weight [kg]: | 72 | |
| Oil charge [dm³]: | 3,3 | |
| Maximum high pressure [bar]: | 32 | |
| Maximum standstill pressure [bar]: | 20 | |
| Minimal lowside temperature [°C]: | -35 | |
| Maximum lowside temperature [°C]: | 52 | |
| PED category: | 2 |
Electrical data
| Power supply [V/~/Hz]: | 380-420/3/50Hz | |
| Locked rotor current [A]: | 118 | |
| Max. operating current [A]: | 19,6 | |
| Winding resistance [Ω]: | 1,2 |

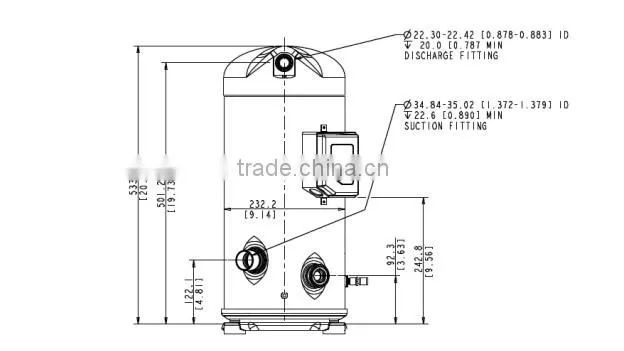

Connections
| inches | |||
| Suction connection with supplied sleeve: | 1 3/8" | ||
| Discharge connection with supplied sleeve: | 7/8" |

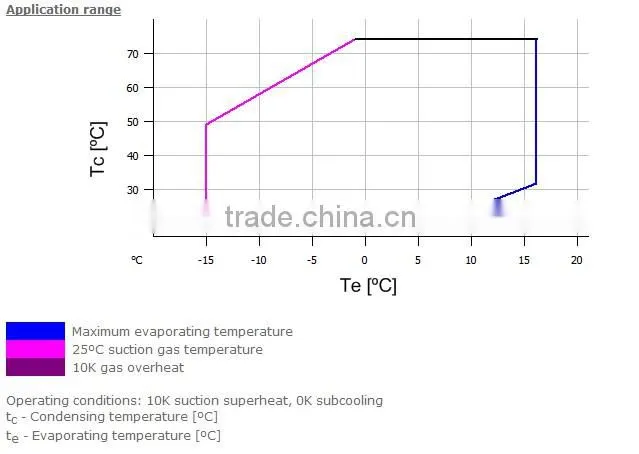

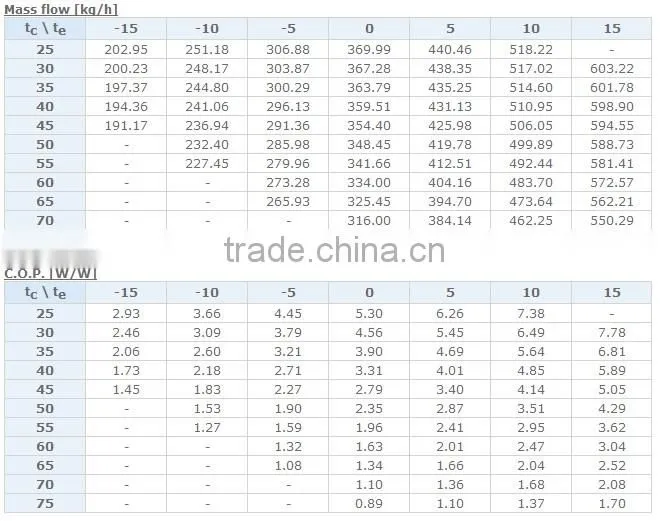

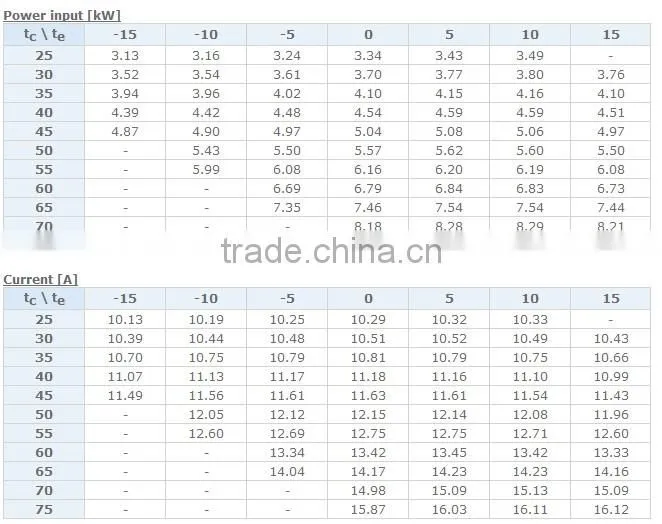

| tc te | -15 | -10 | -5 | 0 | 5 | 10 | 15 |
| 25 | 9.19 | 11.59 | 14.43 | 17.72 | 21.50 | 25.76 | - |
| 30 | 8.66 | 10.95 | 13.68 | 16.86 | 20.51 | 24.64 | 29.28 |
| 35 | 8.12 | 10.30 | 12.90 | 15.96 | 19.48 | 23.47 | 27.96 |
| 40 | 7.58 | 9.63 | 12.11 | 15.03 | 18.40 | 22.24 | 26.57 |
| 45 | 7.05 | 8.97 | 11.30 | 14.07 | 17.28 | 20.96 | 25.12 |
| 50 | - | 8.30 | 10.48 | 13.08 | 16.13 | 19.63 | 23.61 |
| 55 | - | 7.63 | 9.64 | 12.07 | 14.94 | 18.26 | 22.05 |
| 60 | - | - | 8.81 | 11.05 | 13.73 | 16.85 | 20.44 |
| 65 | - | - | 7.97 | 10.02 | 12.50 | 15.41 | 18.78 |
| 70 | - | - | - | 8.98 | 11.24 | 13.94 | 17.08 |
| 75 | - | - | - | 7.94 | 9.98 | 12.44 | 15.34 |
