Scroll Compressor

Scroll Compressor thumbnail-1
Scroll Compressor thumbnail-2
Scroll Compressor thumbnail-3
Scroll Compressor thumbnail-4
Scroll Compressor thumbnail-5
Scroll Compressor thumbnail-6
Scroll Compressor photo-1
Scroll Compressor photo-2
Scroll Compressor photo-3
Scroll Compressor photo-4
Scroll Compressor photo-5
Scroll Compressor photo-6
US$ 875 - 1,075 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Thailand
Brand Name:
Copeland
Model Number:
ZR144KCE-TFD
Contact Supplier Request Quote Chat Now
Dongguan Famous Refrigerant Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Thailand
Brand Name Copeland
Model Number ZR144KCE-TFD
Type Other, Refrigeration Compressor, Hermetic scroll compressors
Application Refrigeration Parts
Certification Other, RoHS
Copeland Refrigeration Compressor ZR18K3,ZR20K3,ZR22K3,ZR24K3,ZR26K3,ZR28K3,ZR30K3,ZR32K3,ZR34K3,ZR36K3,ZR40K3,ZR42K3,ZR47K3 etc

Type: Hermetic piston compressors
Producer: Copeland
Series: ZR

Model: ZR144KCE-TFD

Technical data

Displacement [m³/h]: 33,2
Sound power [dBA]: 75
Sound pressure level [dB]: 64
Net Weight [kg]: 61,2
Gross Weight [kg]: 72
Oil charge [dm³]: 3,3
Maximum high pressure [bar]: 32
Maximum standstill pressure [bar]: 20
Minimal lowside temperature [°C]: -35
Maximum lowside temperature [°C]: 52
PED category: 2

Electrical data

Power supply [V/~/Hz]: 380-420/3/50Hz
Locked rotor current [A]: 118
Max. operating current [A]: 22,3
Winding resistance [Ω]: 1,2

Connections



    inches
Suction connection with supplied sleeve:   1 3/8"
Discharge connection with supplied sleeve:   7/8"



     Capacity: R134a     R407C
Cooling capacity [kW]
tc  te -15 -10 -5 0 5 10 15
25 13.02 15.78 19.04 22.73 26.75 31.04 -
30 12.49 15.17 18.35 21.97 25.93 30.16 34.57
35 11.83 14.41 17.50 21.03 24.91 29.06 33.41
40 11.07 13.53 16.51 19.94 23.72 27.79 32.05
45 10.22 12.55 15.41 18.72 22.40 26.35 30.52
50 - 11.50 14.23 17.40 20.95 24.79 28.84
55 - 10.41 12.98 16.01 19.42 23.12 27.04
60 - - 11.70 14.56 17.81 21.37 25.14
65 - - 10.40 13.09 16.17 19.56 23.17
70 - - - 11.62 14.51 17.72 21.16
75 - - - 10.18 12.87 15.88 19.13

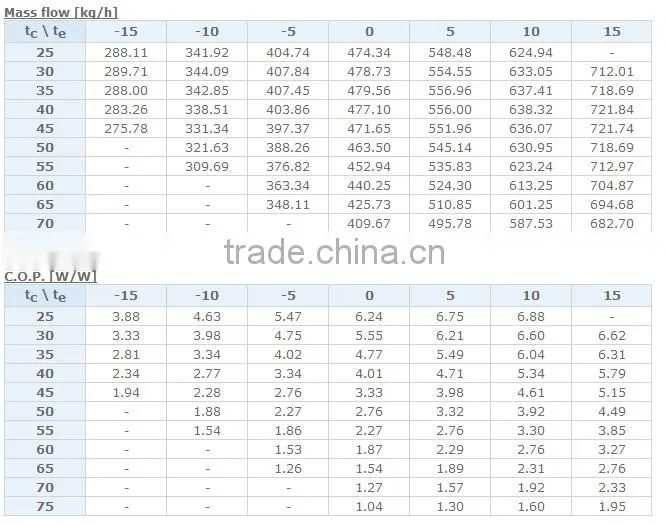

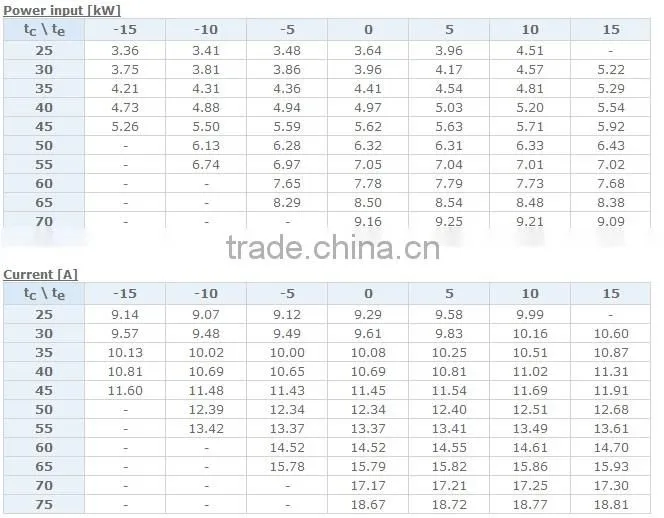

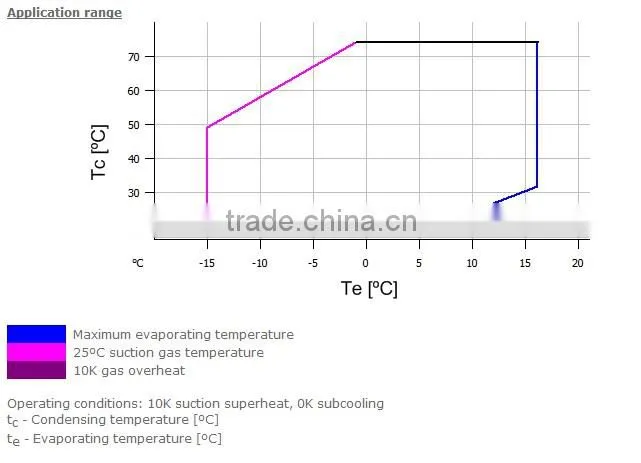

Scroll CompressorScroll CompressorScroll Compressor

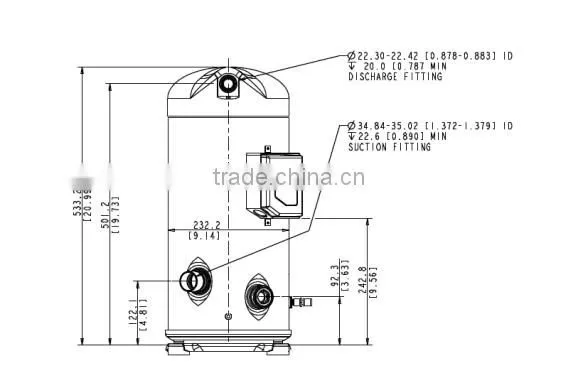

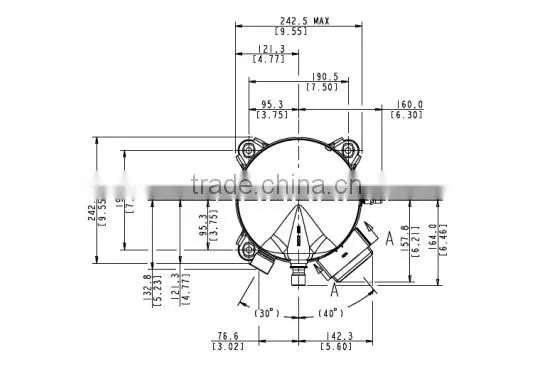

Drawing:

Scroll CompressorScroll Compressor

Pictures:

Scroll Compressor




Scroll CompressorScroll CompressorScroll CompressorScroll Compressor
