Refrigerator Compressor
US$ 825 - 1,085
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Thailand
Brand Name:
Copeland
Model Number:
ZR90K3E-TWD
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ZR Copeland Scroll Compressor ZR22K3-TFDUS$ 100 - 1,000MOQ: 1 Unit -
ZR28K3-TFD CopelandUS$ 100 - 1,000MOQ: 1 Unit
-
ZR32K3-TFD CompressorUS$ 100 - 1,000MOQ: 1 Unit
-
Hermetic Refrigerator Compressor ZR40K3-TFDUS$ 100 - 1,000MOQ: 1 Unit
-
Hermetic Copeland Compressor ZR54KC-TFD-522US$ 100 - 1,000MOQ: 1 Unit
Place of Origin
Thailand
Brand Name
Copeland
Model Number
ZR90K3E-TWD
Type
Other, Refrigeration Compressor, Hermetic piston compressors
Application
Refrigeration Parts
Certification
Other, RoHS
Copeland Refrigeration Compressor ZR18K3,ZR20K3,ZR22K3,ZR24K3,ZR26K3,ZR28K3,ZR30K3,ZR32K3,ZR34K3,ZR36K3,ZR40K3,ZR42K3,ZR47K3 etc
Type: Hermetic piston compressors
Producer: Copeland
Series: ZR
Model: ZR90K3E-TWD
Technical data
| Nominal motor power [HP]: | 7,5 | |
| Displacement [m³/h]: | 20,9 | |
| Sound pressure level : | 66 | |
| Gross/Net weight [kg]: | 105/94 | |
| Oil charge [dm³]: | 4,1 |
Electrical data
| Power supply [V/~/Hz]: | 380-420/3/50Hz | |
| Locked rotor current [A]: | 99 | |
| Max. operating current [A]: | 17 | |
| Winding resistance [Ω]: | 1,45 |
Connections
| milimeters | inches | ||
| Suction Rotolock valve connection: | 1 3/4" | ||
| Discharge Rotolock valve connection: | 1 1/4" | ||
| Suction connection with supplied sleeve: | 1 3/8" | ||
| Discharge connection with supplied sleeve: | 7/8" |

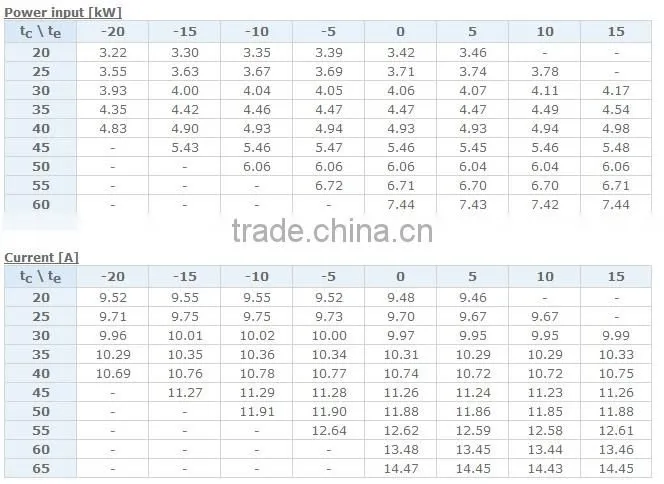

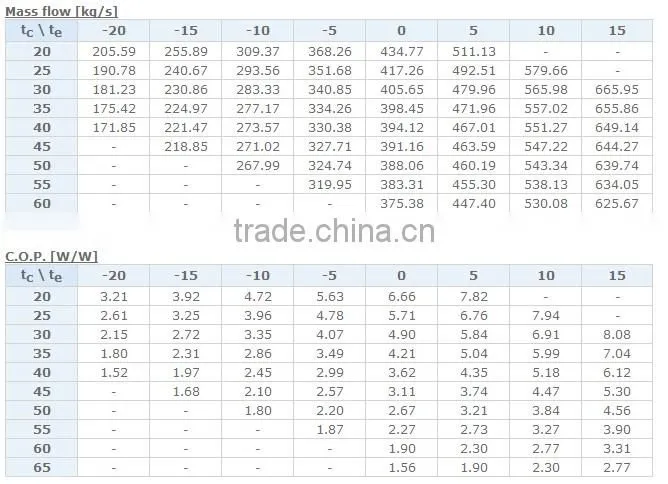

Capacity: R22 R134a R407C
Cooling capacity [kW]
| tc te | -20 | -15 | -10 | -5 | 0 | 5 | 10 | 15 |
| 20 | 10.32 | 12.95 | 15.83 | 19.06 | 22.76 | 27.04 | - | - |
| 25 | 9.25 | 11.78 | 14.54 | 17.64 | 21.18 | 25.27 | 30.03 | - |
| 30 | 8.45 | 10.89 | 13.54 | 16.50 | 19.88 | 23.80 | 28.35 | 33.65 |
| 35 | 7.84 | 10.20 | 12.74 | 15.57 | 18.80 | 22.54 | 26.89 | 31.97 |
| 40 | 7.36 | 9.64 | 12.08 | 14.78 | 17.87 | 21.43 | 25.60 | 30.46 |
| 45 | - | 9.13 | 11.48 | 14.06 | 17.00 | 20.41 | 24.38 | 29.03 |
| 50 | - | - | 10.87 | 13.34 | 16.15 | 19.39 | 23.18 | 27.63 |
| 55 | - | - | - | 12.55 | 15.22 | 18.31 | 21.92 | 26.17 |
| 60 | - | - | - | - | 14.16 | 17.09 | 20.53 | 24.58 |
| 65 | - | - | - | - | 12.88 | 15.67 | 18.94 | 22.81 |
Drawing:
Pictures:
