HUAWEI MA5616 Double GE CCUC CCUE ADLE ADPE ADSL VDSL MINI IP DSLAM

HUAWEI MA5616 Double GE CCUC CCUE ADLE ADPE ADSL VDSL MINI IP DSLAM photo-1

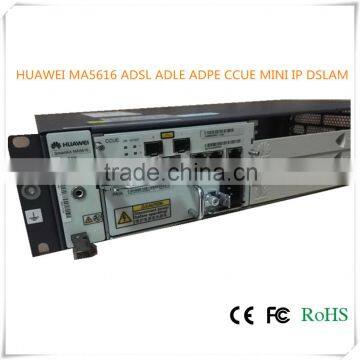

HUAWEI MA5616 Double GE CCUC CCUE ADLE ADPE ADSL VDSL MINI IP DSLAM photo-2
US$ 500 - 600 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Huawei
Model Number:
MA5616
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Huawei
Model Number MA5616

 HUAWEI MA5616 Double GE CCUC CCUE ADLE ADPE ADSL MINI IP DSLAM









     SmartAX MA5616



 The SmartAX MA5616 (the MA5616 for short) is an industry-leading remote multi dwelling unit (MDU) launched by Huawei, which supports flexible configurations and provides broadband services on Fiber To The Building (FTTB) and Fiber To The Curb (FTTC) networks. The MA5616 is a box-type device measuring 2-U high and 19-inch wide and providing two GPON or GE uplink ports and ADSL2+, VDSL2, SHDSL, POTS, ISDN, FE and GE ports. The MA5616 features a high access density, high processing capability, high reliability, easy maintenance, environment-friendlily and energy conservation, and future-oriented architecture design and can be used in corridors, cabinets, indoor, and outdoor usage scenarios.

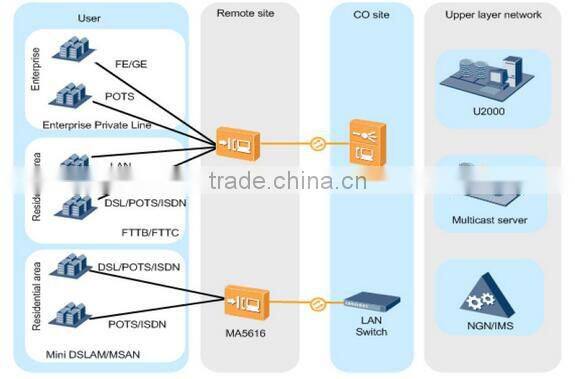

  Position of the MA5616 on the network



 HUAWEI MA5616 Double GE CCUC CCUE ADLE ADPE ADSL VDSL MINI IP DSLAM



DSL: digital subscriber line                                         FE: fast Ethernet
GE: gigabit Ethernet                                                   IMS: IP multimedia subsystem
LAN: local area network                                             NGN: next generation network
OLT: optical line terminal                                           POTS: plain old telephone service











 Device Appearance



 The MA5616 chassis is 2 U (88.9 mm) high and consists of six board slots and a fan tray. Two mounting ears are equipped for fixing the device in a 19-inch cabinet or rack.

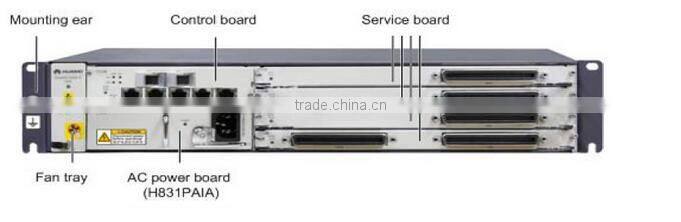

    Figure 2-1 Appearance and structure of the MA5616 (AC-powered, configured with CCUB control board)





HUAWEI MA5616 Double GE CCUC CCUE ADLE ADPE ADSL VDSL MINI IP DSLAM

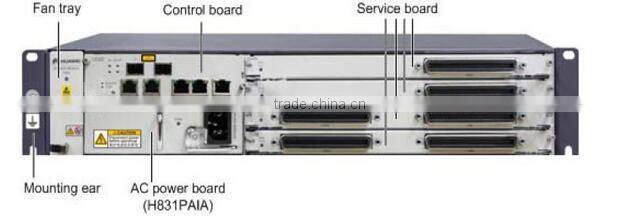

Figure 2-2 Appearance and structure of the MA5616 (AC-powered, configured with CCUC control board)



HUAWEI MA5616 Double GE CCUC CCUE ADLE ADPE ADSL VDSL MINI IP DSLAM

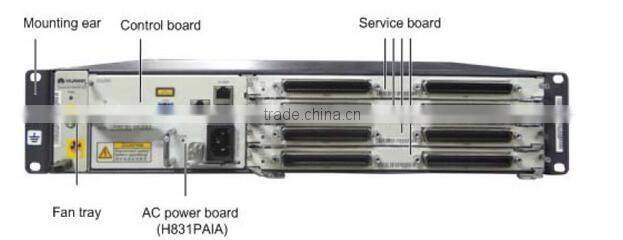

Figure 2-3 Appearance and structure of the MA5616 (AC-powered, configured with CCUDG control board)



HUAWEI MA5616 Double GE CCUC CCUE ADLE ADPE ADSL VDSL MINI IP DSLAM

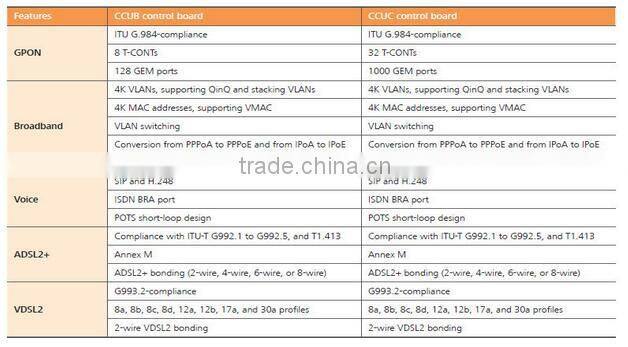

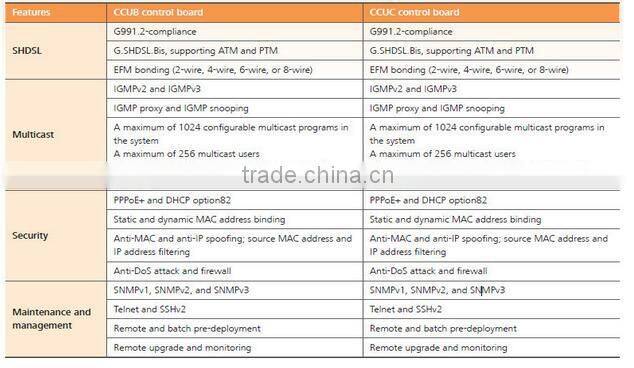

Features:



  HUAWEI MA5616 Double GE CCUC CCUE ADLE ADPE ADSL VDSL MINI IP DSLAMHUAWEI MA5616 Double GE CCUC CCUE ADLE ADPE ADSL VDSL MINI IP DSLAM

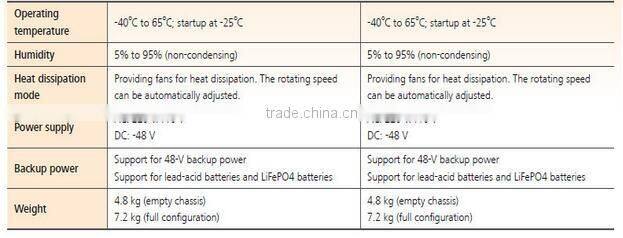

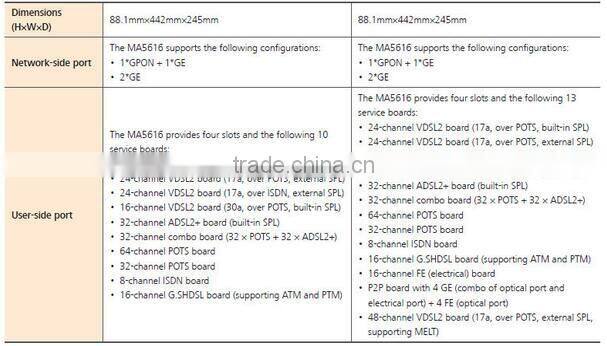

Specifications:





HUAWEI MA5616 Double GE CCUC CCUE ADLE ADPE ADSL VDSL MINI IP DSLAMHUAWEI MA5616 Double GE CCUC CCUE ADLE ADPE ADSL VDSL MINI IP DSLAM

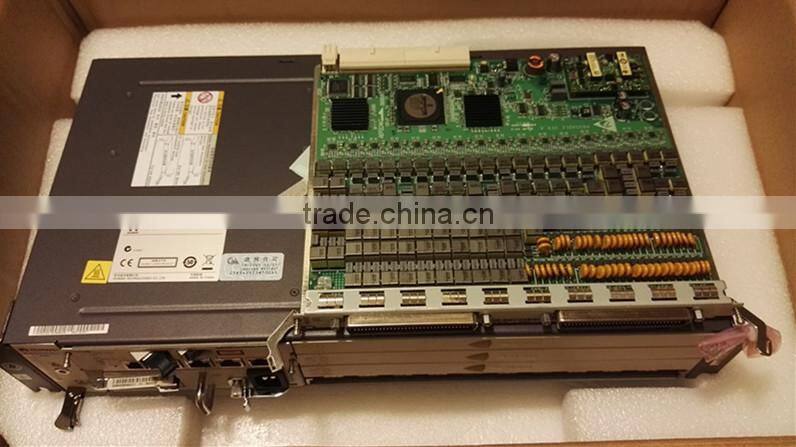

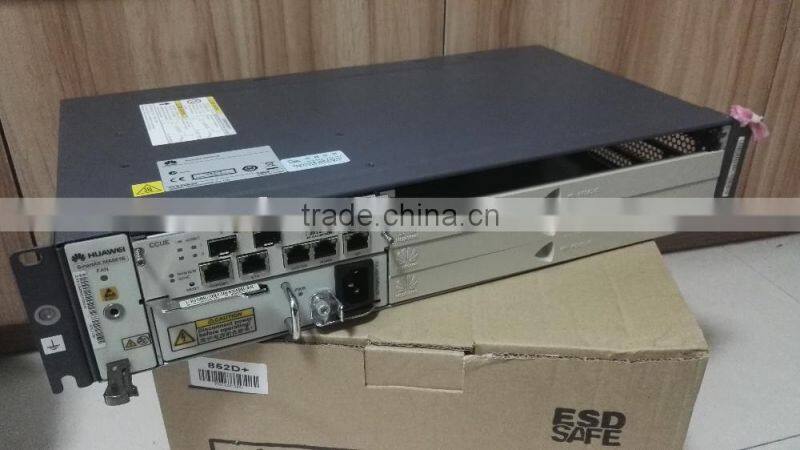

Products Picure:

  HUAWEI MA5616 Double GE CCUC CCUE ADLE ADPE ADSL VDSL MINI IP DSLAMHUAWEI MA5616 Double GE CCUC CCUE ADLE ADPE ADSL VDSL MINI IP DSLAM



















Shipping information:

   We have many International Express partn ers  and according to clients requirement to choice best way service our costumers
