HUAWEI fixed Access UA5000 HABA IPMD PVMD A32 A64 CSRB CSMB IP DSLAM
Product Positioning:
The UA5000 Universal Access Unit (referred to as the UA5000) is a device for accessing both the narrowband and broadband services.
Product Features:
To meet the customer and market requirements, Huawei launches the UA5000, which has a perfect and mature system design, and features flexible networking, abundant service, and powerful functions. The UA5000 complies with the RoHS directive, supports the seamless evolution from PSTN to NGN or IMS, and also supports the upstream PON networking

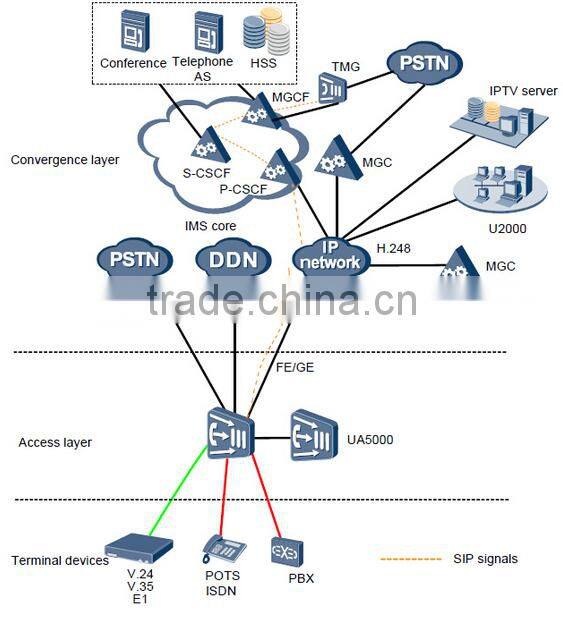

Positioning of the UA5000 in an entire-network solution:

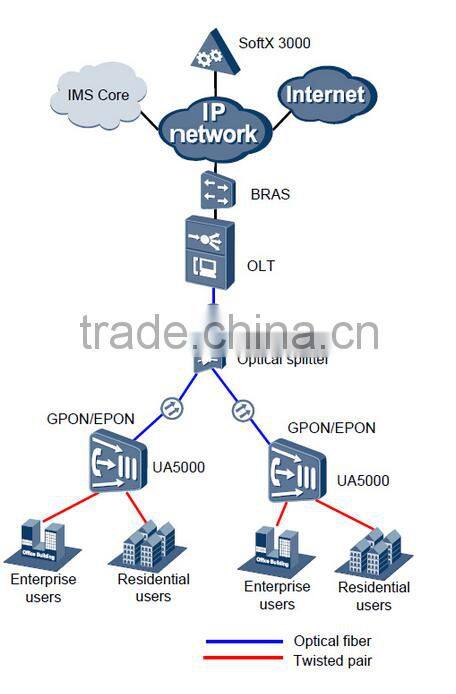

Positioning of the UA5000 on a PON
Cabinet:
Major cabinet types of the UA5000:
Shelves
Types and applications of the shelves supported by the UA5000:
| Shelf Model | Type | Number of Slots for Service Boards/Total Slots |
| HABA | Rear-access maintenance shelf | 30/36 |
| HABD | Front-access maintenance shelf | 12/18 |
| HABF | Front-access slave shelf | 18/18 |
| HABL | Front-access maintenance shelf | 6/12 |
| HABM | Front-access maintenance shelf | 6/9 |

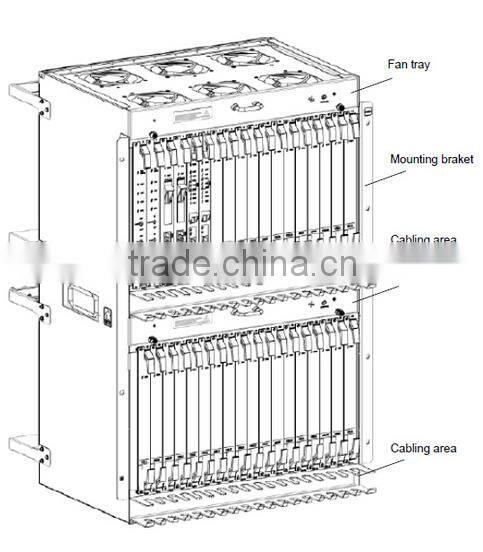

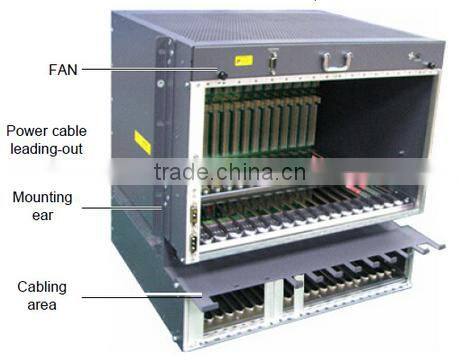

Appearance of the HABA shelf

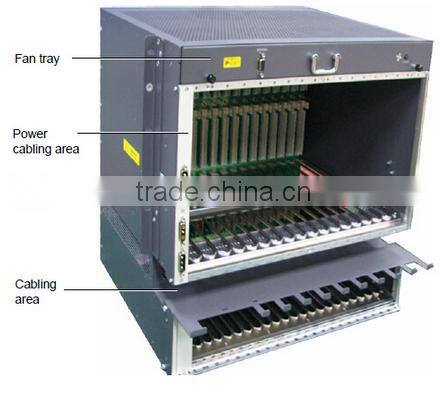

Appearance of the HABD shelf:

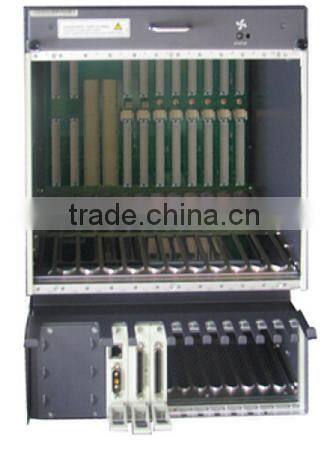

Appearance of the HABF shelf:
Appearance of the HABL shelf:

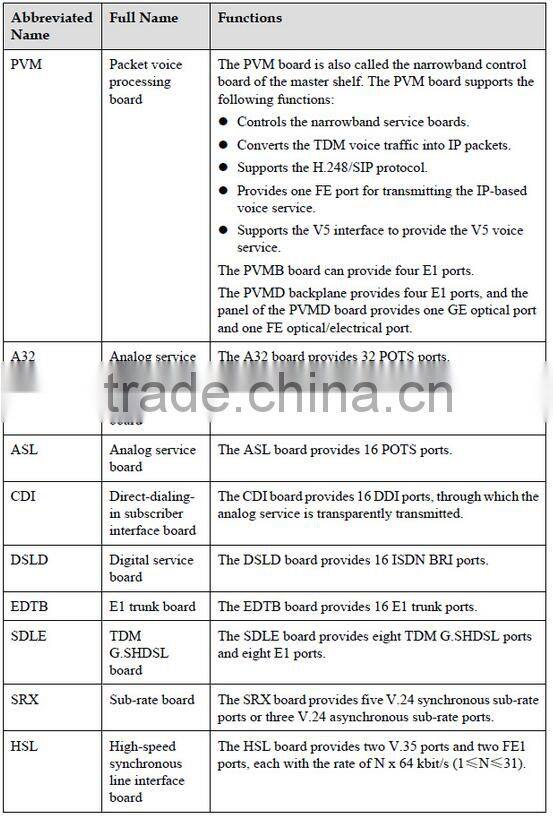

List of narrowband boards:

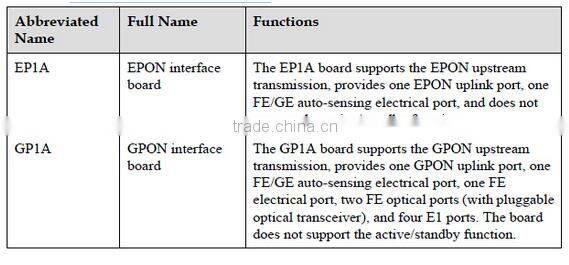

List of the xPON upstream boards

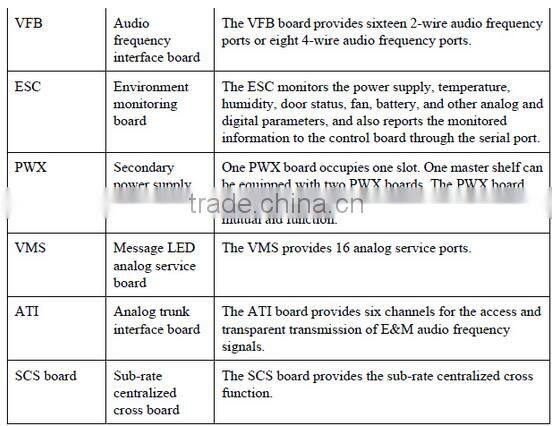

Boards supported by the PV8 service shelf

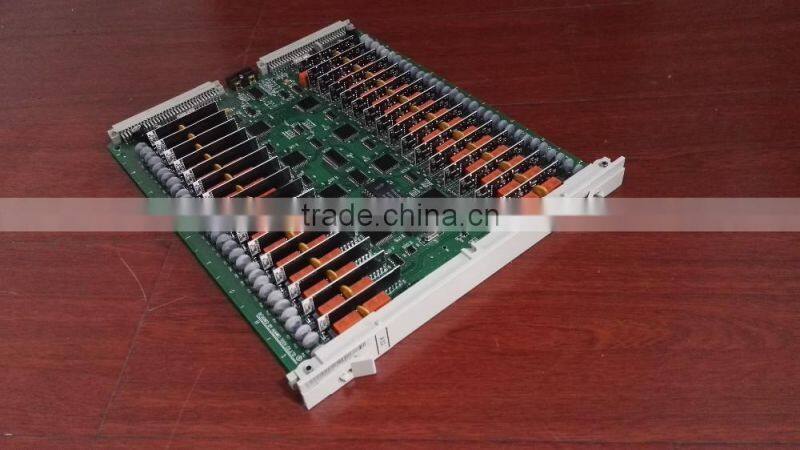

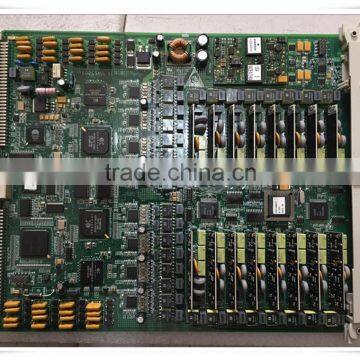

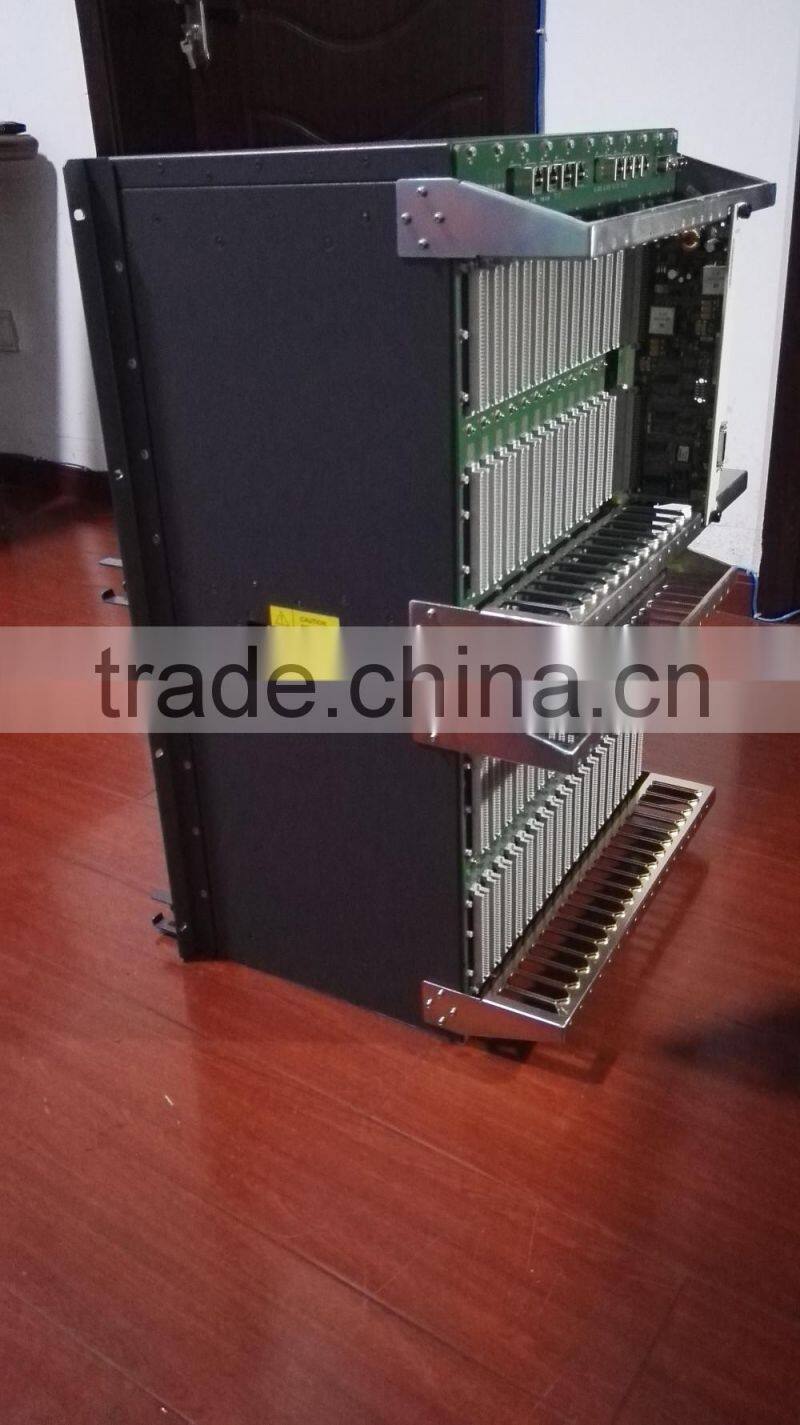

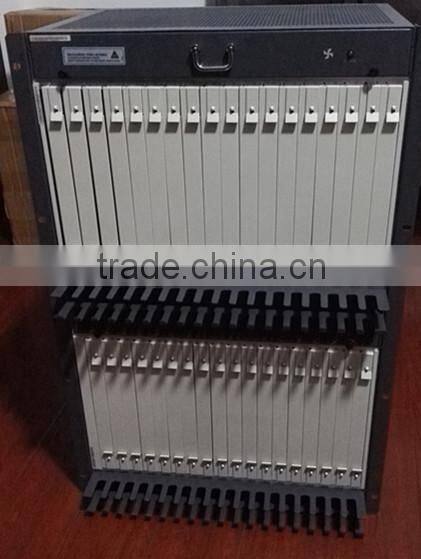

Product pictures
Shipping information:
We have many International Express partn ers and according to clients requirement to choice best way service our costumers
