New products!! T grid system good sale in the world
Galvanized Steel Specification.
Pls kindly check our regular size as below,if you need other special size and thickness,pls contact us we will try our best to follow you or your engineer.
Specification of Ausralia market
All Australia products wil be made by G550 galvanized sheet with zinc coating 275g/m2
Partition
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| Stud | 51x33.5x35.5 | 0.5--0.75 |
2700,3000, 3600,4200, 4800,6000 |
| 64x33.5x35.5 | |||
| 76x33.5x35.5 | |||
| 92x33.5x35.5 | |||
| Track | 52x32/28 | 0.5--0.75 | 3000 |
| 65x32/28 | |||
| 77x32/28 | |||
| 93x32/28 | |||
| MPW 10 H Stud | 12.5X40 | 0.3-0.5 | 3000-6000 |
| MPW 10 H Stud | 25X35 | ||
| MPW 10 U Kap | 15X25 | ||
| MPW 10 π Track | 55X25 | ||
| V-angle bead | 30X30 | ||
| L -angle bead | 30X6 | ||
| L-angle bead | 30X10 | ||
| L -angle bead | 30X13 | ||
| L -angle bead | 30X16 | ||
| J -angle bead | 30X10X13 | ||
| Z -angle bead | 30X10X10 | ||
| Z -angle bead | 30X10X6 |
Roof and Ceiling
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| Main channel | 25x21 | 0.75 | 3600,4800,6000 |
| Furring channel | 51x38x28 | 0.5 |
2700,3000,3600, 4800,6000 |
| 51x38x16 | |||
| C channel | 36x16 | 0.45 | 3000,3600 |
| Wall angle | 35x16x13 | 0.5 | 3000 |
| 35x28x20 | |||
| Batten | 94x42x40 | 0.55/0.75 | 4800,6000 |
Specification of South America market
Partition
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| Stud | 41*32 | 0.4--1 | 3050 |
| 64*32 | |||
| 76*32 | |||
| 92*32 | |||
| 92*41 | |||
| 100*35 | |||
| Track | 41*25--40 | 0.4--1 | 3050 |
| 64*25--40 | |||
| 76*25--40 | |||
| 92*25--40 | |||
| 100*25--40 | |||
| Corner bead | 32*32 | 0.3--0.5 | 3050 |
Ceiling
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| Main channel | 38*12 | 0.4--0.8 | 3660 or any other length |
| 37*20 | |||
| Furring channel | 58*34*16 | ||
| 64*32*22 | |||
| 47*17 | |||
| 52*25*15 |
Specification of Malaysia market
Partition
Component name |
Specification (mm) | Thickness (mm) | Length (mm) |
| U channel | 41*23 | 0.3-0.5 | 2440, 2740, 3050 |
| 44*22 | |||
| 48*22 | |||
| 50*23 | |||
| 75*24 |
Roof and Ceiling
| Component name | Specificaion (mm) | Thickness (mm) | Length (mm) |
| C section | 75*34*36 | 0.7--1 | 3660--5800 |
| 100*50 | |||
| Batten | 58*35*23 | 0.5--0.8 | 3660-5800 |
| 65*32*26 | |||
| 84*30*32 | |||
| Furring Channel | 30*9 | 0.25-0.3 | 3660 |
| 34*11 |
Specification of Middle East market
Partition
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| Stud | 50*35/40 | 0.5--1 | 3000 |
| 70*32/35 | |||
| 75*35/40 | |||
| 100*35 | |||
| Track | 50*25--50 | 0.5--1 | 3000 |
| 70*25--50 | |||
| 100*25---50 |
Ceiling
| Component name | Spceification (mm) | Thickness (mm) | Length (mm) |
| Main channel | 38*10--12 | 0.38--0.5 | 3000 |
| Furring channel | 64*32*22 | ||
| 70*35*22 | |||
| 80*48*22 | 0.7 | 4000 |
Specification of Eastern Europe market
Partition
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| Stud | 50*50 | 0.3--0.7 | 3000 |
| 75*50 | |||
| 100*50 | |||
| Track | 50*25--50 | ||
| 75*25--50 | |||
| 100*25--50 |
Ceiling
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| Furring channel | 60*27 | 0.5--0.7 | 3000 |
| Wall angle / Track | 28*27 | 0.5--0.7 | 3000 |
Specification of Myanmar market
Partition
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| Stud | 75x35 | 0.4--0.6 | 2900 |
| 65x32 | |||
| Track |
76x25 | ||
| 66x25 |
Roof and Ceiling
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| C sectionC section | 75x34x36 | 0.7--1.5 | 5800 |
| 100x50x50 | |||
| BattenBatten | 64x24x24 | 0.4--0.6 | 5800 |
| 65x32x26 | |||
| Furring channel / C-line | 35x12 |
0.3--0.5 | 3960 |
| Main channel | 18x28 | 0.5--0.8 | 3050 |
| Furring channel | 50x17 | 0.4-0.5 |
Specification of Thailand market
Partition
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| Stud | 75x35 | 0.4--0.55 | 2400, 3000 |
| 65x32 | |||
| Track | 76x25 | ||
| 66x25 |
Roof and Ceiling
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| C section | 75x34x36 | 0.7-1.5 | 6000 |
| 100x50x50 | |||
| Batten | 65x25x26.5 | 0.4-0.6 | |
| 65x32x26 | |||
| Furring channel / C-line | 35x12 | 0.3-0.5 | 4000 |
Specification of Philippin market
Partition
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| Stud | 50*32 | 0.4--0.8 | 3000 |
| 64*32 | |||
| 75*35 | |||
| 92*35 | |||
| 100*35 | |||
| Track | 50*25--50 | 0.4--0.8 | 3000 |
| 64*25--50 | |||
| 75*25--50 | |||
| 92*25--50 | |||
| 100*25--50 |
Roof and Ceiling
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| C section | 100*50 | 0.7--1.5 | 3000 |
| 150*50 | |||
| Main channel | 38*12 | 0.5--0.8 | 3000 |
| Furring channel | 50*19 | 0.4--0.5 | 3000 |

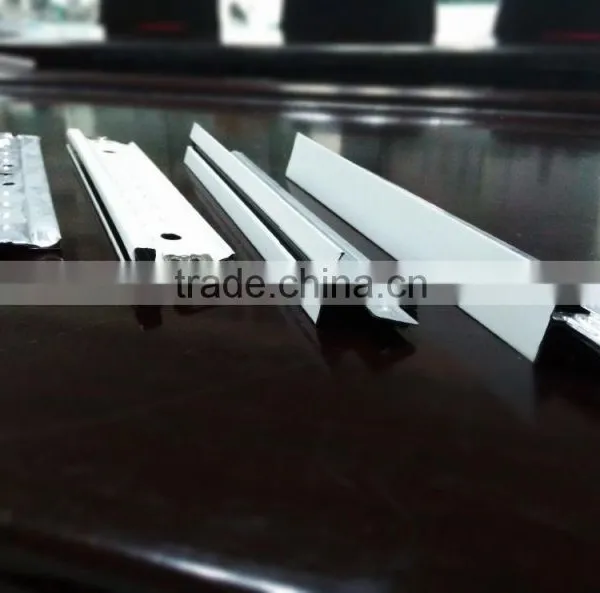

The show of products
Application
Galvanized Steel Production.
Our loading
Canton Fair
Certificated.We get the SGS CE certificated & ISO,It also helps us to gain more projects, like government office ,hospital ,school, commercial building, airport, metro.
Our company
Guangzhou Jianli New type Partition Co.,Ltd is a leading professional manufacturer of ceiling and drywall partition system in China. Our sales network cover the martet of Australia,New Zealand, South East Asia, The Middle East, Europe and South Ameiriaca.
Guangzhou Jianli New type Partition Co.,Ltd
our website :
Welcome to have a look our product ,we are gonna to entertain you !
