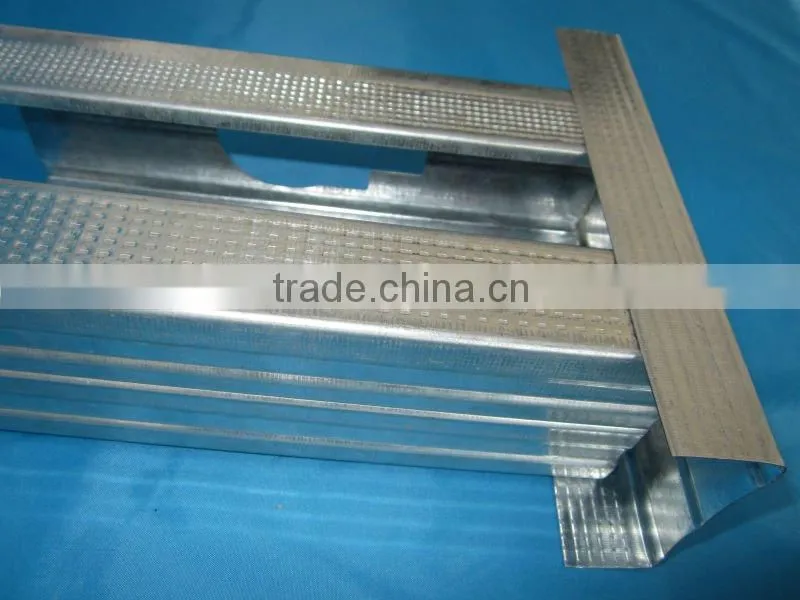

Good sell building material/gi stud track channel /metal steel framing with factory price.
Langfang Saint Rees Amaron Movable House CO.,lTD is a leading professional manufacturer of ceiling and drywall partition system in China. Our sales network cover the martet of Australia,New Zealand, South East Asia, The Middle East, Europe and South Ameiriaca.

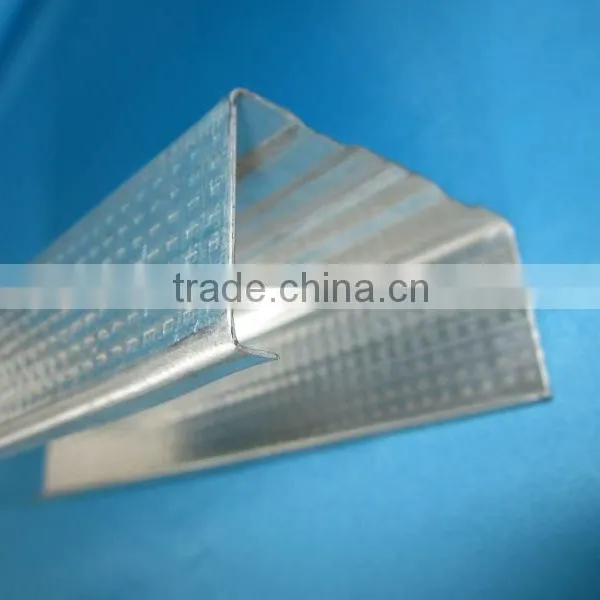

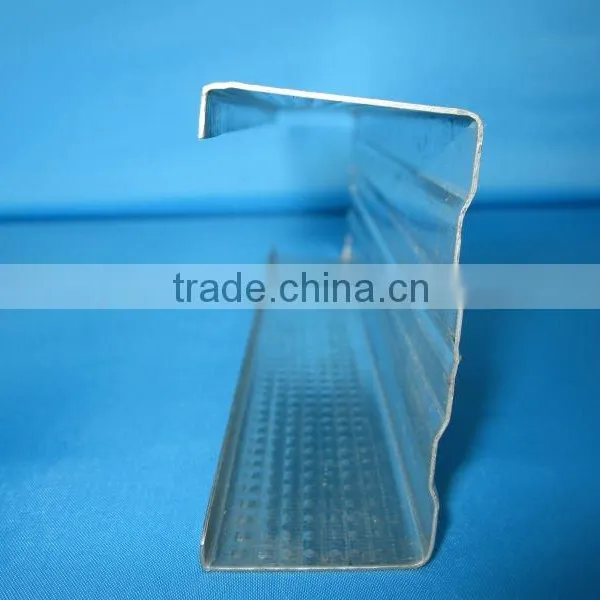

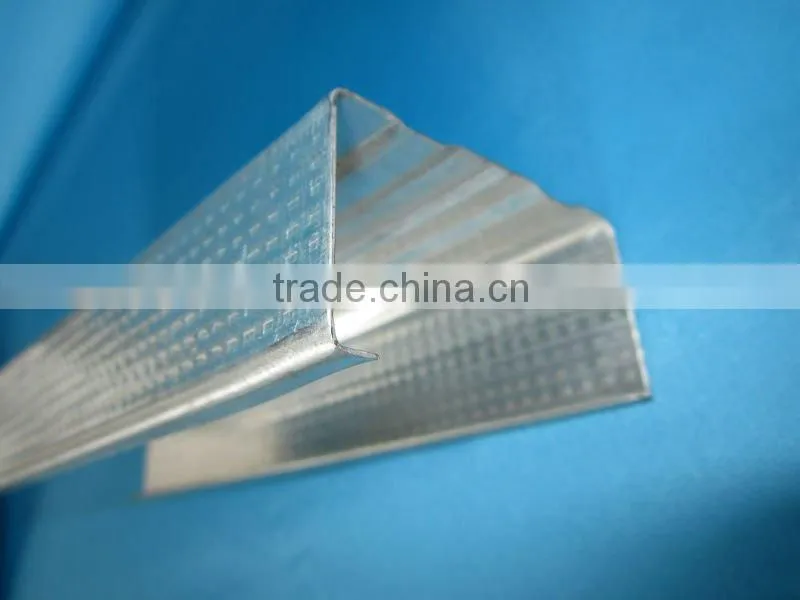

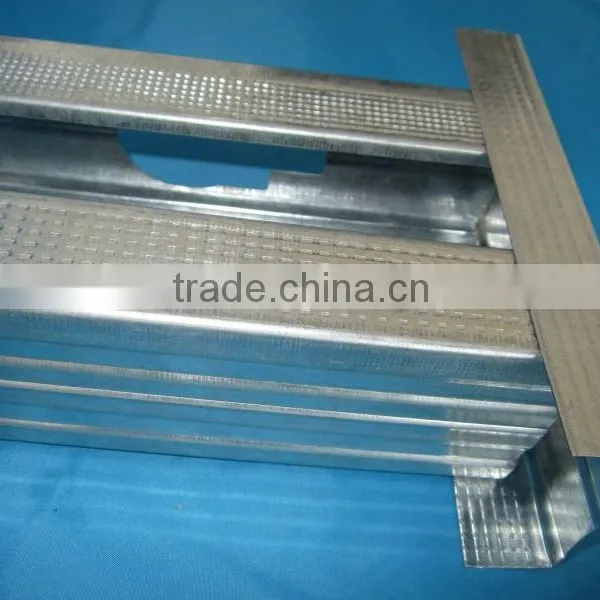

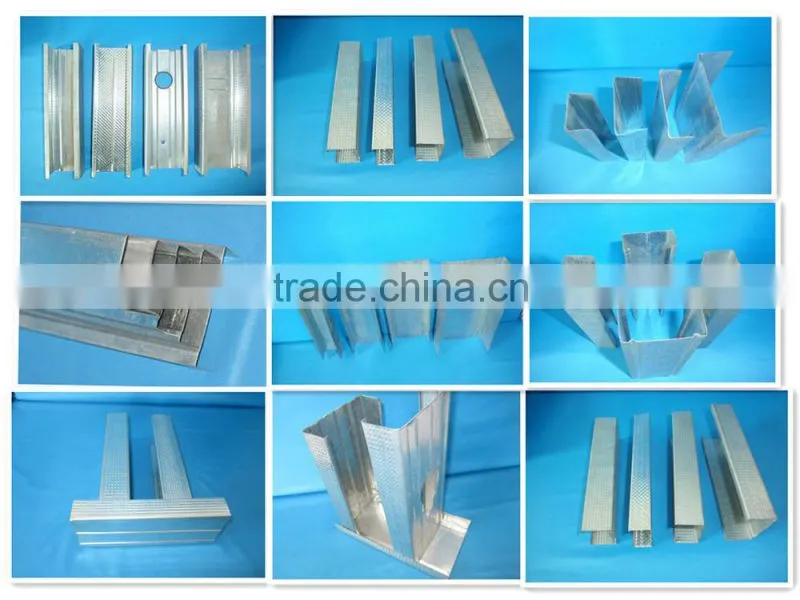

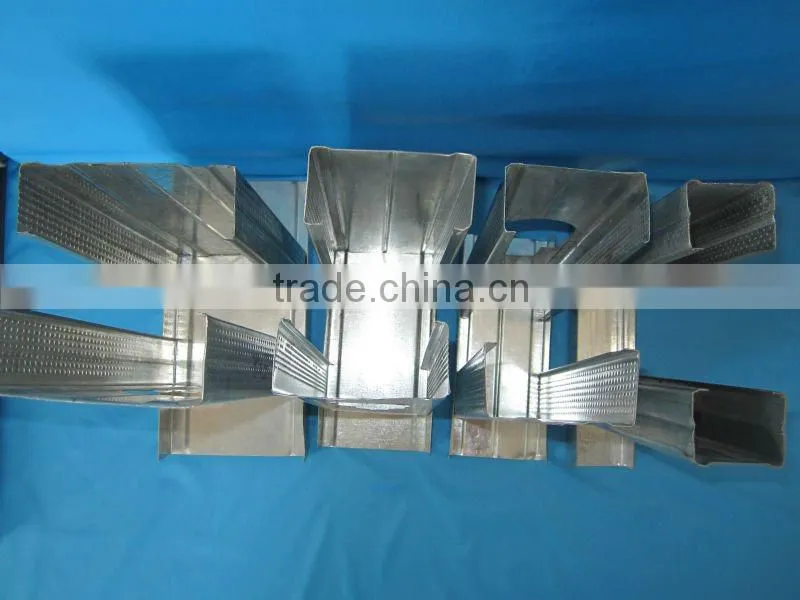

Drywall Galvanized Steel Profile

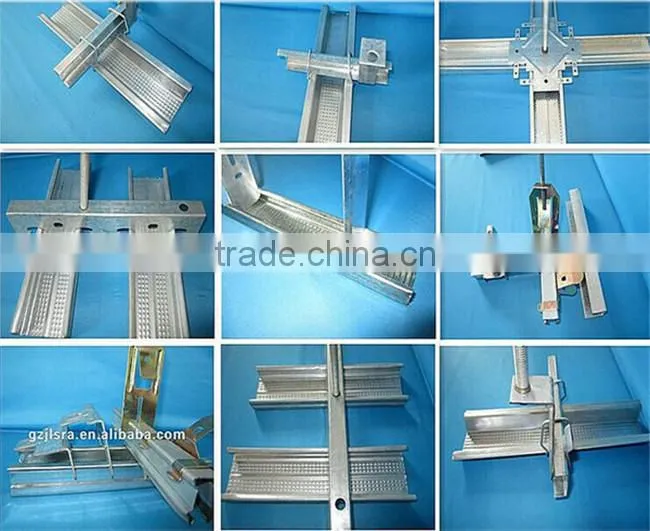

Your drywall ceilings can be virtually any shape, anywhere. Choose from a wide range of heavy-duty system options that provide code-compliant performance in both fire rated and non-fire rated applications with labor-saving advantages.
Galvanized Steel Specification.
Pls kindly check our regular size as below,if you need other special size and thickness,pls contact us we will try our best to follow you or your engineer.
Specification of South America market
Partition
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |

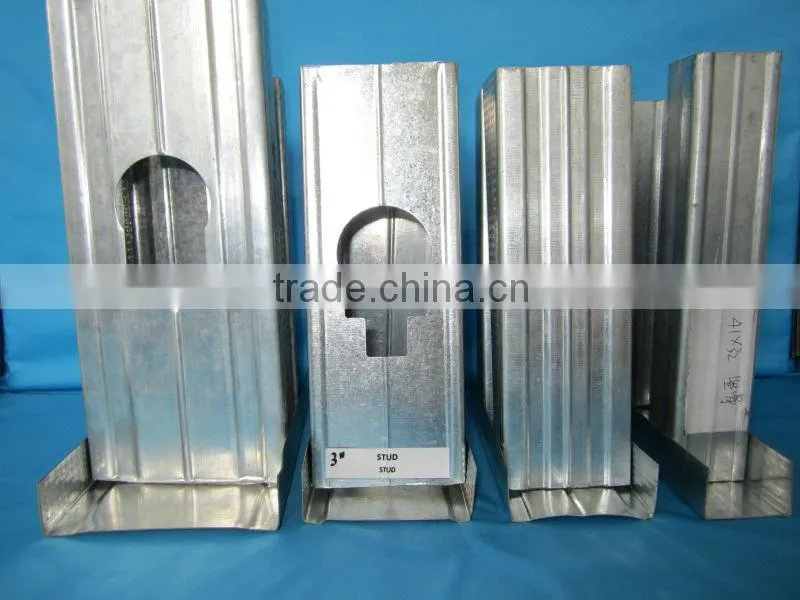

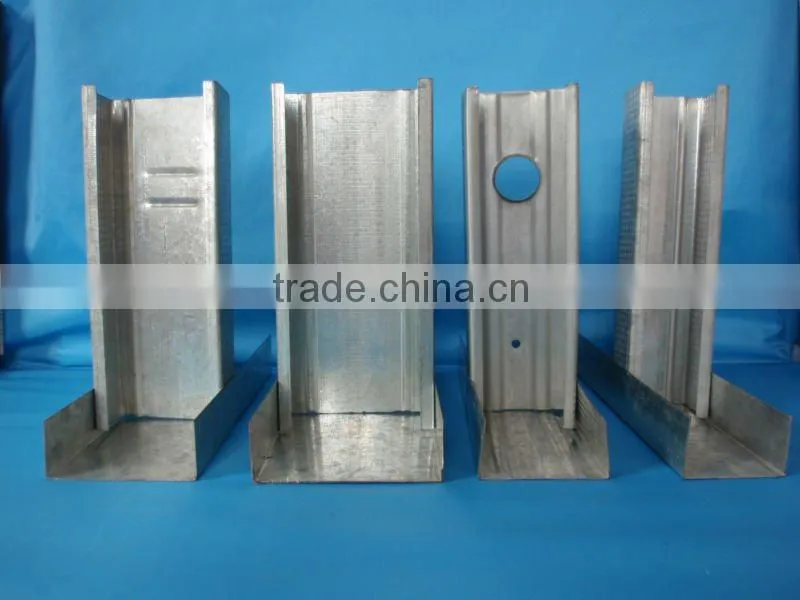

| Stud | 41*32 | 0.4--1 | 3050 |
| 64*32 | |||
| 76*32 | |||
| 92*32 | |||
| 92*41 | |||
| 100*35 | |||
| Track | 41*25--40 | 0.4--1 | 3050 |
| 64*25--40 | |||
| 76*25--40 | |||
| 92*25--40 | |||
| 100*25--40 | |||
| Corner bead | 32*32 | 0.3--0.5 | 3050 |
Ceiling
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| Main channel | 38*12 | 0.4--0.8 | 3660 or any other length |
| 37*20 | |||
| Furring channel | 58*34*16 | ||
| 64*32*22 | |||
| 47*17 | |||
| 52*25*15 |
Specification of Eastern Europe market
Partition
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| Stud | 50*50 | 0.3--0.7 | 3000 |
| 75*50 | |||
| 100*50 | |||
| Track | 50*25--50 | ||
| 75*25--50 | |||
| 100*25--50 |
Ceiling
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| Furring channel | 60*27 | 0.5--0.7 | 3000 |
| Wall angle / Track | 28*27 | 0.5--0.7 | 3000 |
Specification of Philippin market
Partition
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| Stud | 50*32 | 0.4--0.8 | 3000 |
| 64*32 | |||
| 75*35 | |||
| 92*35 | |||
| 100*35 | |||
| Track | 50*25--50 | 0.4--0.8 | 3000 |
| 64*25--50 | |||
| 75*25--50 | |||
| 92*25--50 | |||
| 100*25--50 |
Roof and Ceiling
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| C section | 100*50 | 0.7--1.5 | 3000 |
| 150*50 | |||
| Main channel | 38*12 | 0.5--0.8 | 3000 |
| Furring channel | 50*19 | 0.4--0.5 | 3000 |
Specification of Thailand market
Partition
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| Stud | 75x35 | 0.4--0.55 | 2400, 3000 |
| 65x32 | |||
| Track | 76x25 | ||
| 66x25 |
Roof and Ceiling
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| C section | 75x34x36 | 0.7-1.5 | 6000 |
| 100x50x50 | |||
| Batten | 65x25x26.5 | 0.4-0.6 | |
| 65x32x26 | |||
| Furring channel / C-line | 35x12 | 0.3-0.5 | 4000 |
Specification of Malaysia market
Partition
Component name |
Specification (mm) | Thickness (mm) | Length (mm) |
| U channel | 41*23 | 0.3-0.5 | 2440, 2740, 3050 |
| 44*22 | |||
| 48*22 | |||
| 50*23 | |||
| 75*24 |
Roof and Ceiling
| Component name | Specificaion (mm) | Thickness (mm) | Length (mm) |
| C section | 75*34*36 | 0.7--1 | 3660--5800 |
| 100*50 | |||
| Batten | 58*35*23 | 0.5--0.8 | 3660-5800 |
| 65*32*26 | |||
| 84*30*32 | |||
| Furring Channel | 30*9 | 0.25-0.3 | 3660 |
| 34*11 |

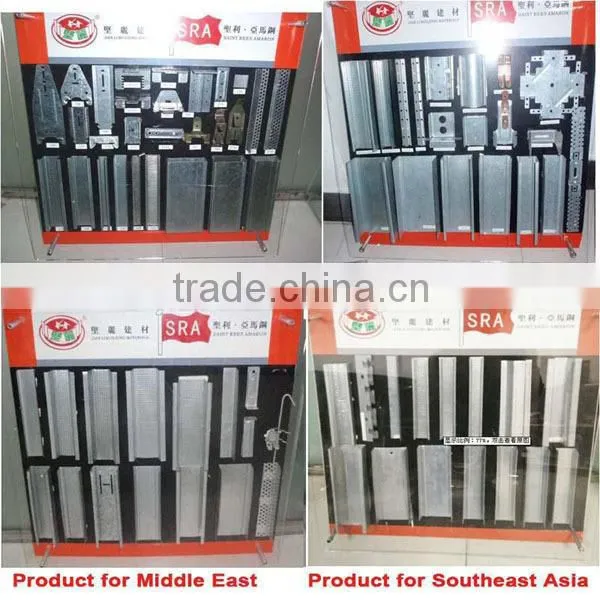

Specification of Middle East market
Partition
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| Stud | 50*35/40 | 0.5--1 | 3000 |
| 70*32/35 | |||
| 75*35/40 | |||
| 100*35 | |||
| Track | 50*25--50 | 0.5--1 | 3000 |
| 70*25--50 | |||
| 100*25---50 |
Ceiling
| Component name | Spceification (mm) | Thickness (mm) | Length (mm) |
| Main channel | 38*10--12 | 0.38--0.5 | 3000 |
| Furring channel | 64*32*22 | ||
| 70*35*22 | |||
| 80*48*22 | 0.7 | 4000 |
Specification of Ausralia market
All Australia products wil be made by G550 galvanized sheet with zinc coating 275g/m2
Partition
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| Stud | 51x33.5x35.5 | 0.5--0.75 |
2700,3000, 3600,4200, 4800,6000 |
| 64x33.5x35.5 | |||
| 76x33.5x35.5 | |||
| 92x33.5x35.5 | |||
| Track | 52x32/28 | 0.5--0.75 | 3000 |
| 65x32/28 | |||
| 77x32/28 | |||
| 93x32/28 | |||
| MPW 10 H Stud | 12.5X40 | 0.3-0.5 | 3000-6000 |
| MPW 10 H Stud | 25X35 | ||
| MPW 10 U Kap | 15X25 | ||
| MPW 10 π Track | 55X25 | ||
| V-angle bead | 30X30 | ||
| L -angle bead | 30X6 | ||
| L-angle bead | 30X10 | ||
| L -angle bead | 30X13 | ||
| L -angle bead | 30X16 | ||
| J -angle bead | 30X10X13 | ||
| Z -angle bead | 30X10X10 | ||
| Z -angle bead | 30X10X6 |

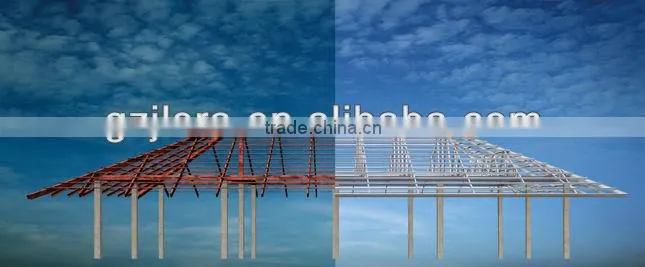

Roof and Ceiling
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| Main channel | 25x21 | 0.75 | 3600,4800,6000 |
| Furring channel | 51x38x28 | 0.5 |
2700,3000,3600, 4800,6000 |
| 51x38x16 | |||
| C channel | 36x16 | 0.45 | 3000,3600 |
| Wall angle | 35x16x13 | 0.5 | 3000 |
| 35x28x20 | |||
| Batten | 94x42x40 | 0.55/0.75 | 4800,6000 |
Raw material: 2mm Cold Roll Coil
Zine coated progress is contrl by our own factory
Zine Coated Level: 60g~200g
Thickness 0.4~1.2mm
Tensil Stress: 696.74MPa
Yeild Stress 669.48 Mpa
Hardness: 15HRC
Standrard GB/T 11981-2001

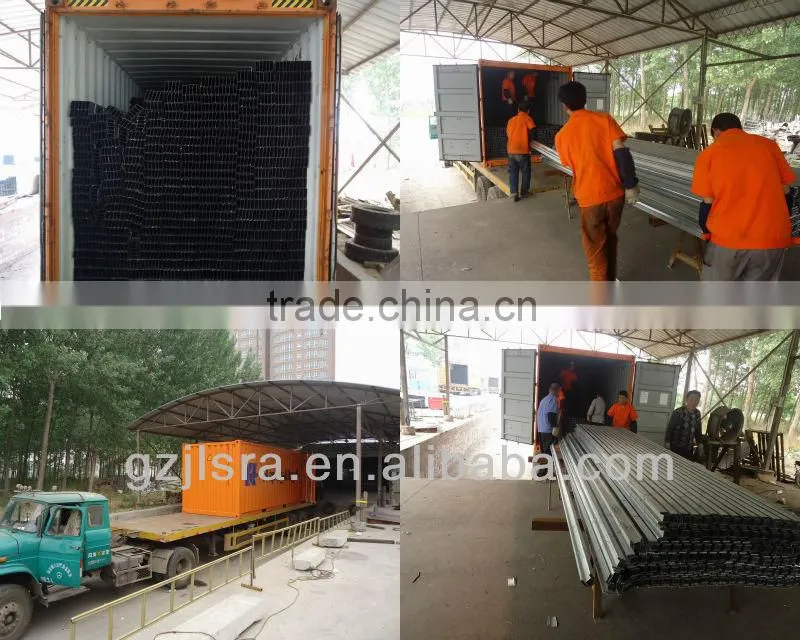

Our loading
Canton Fair

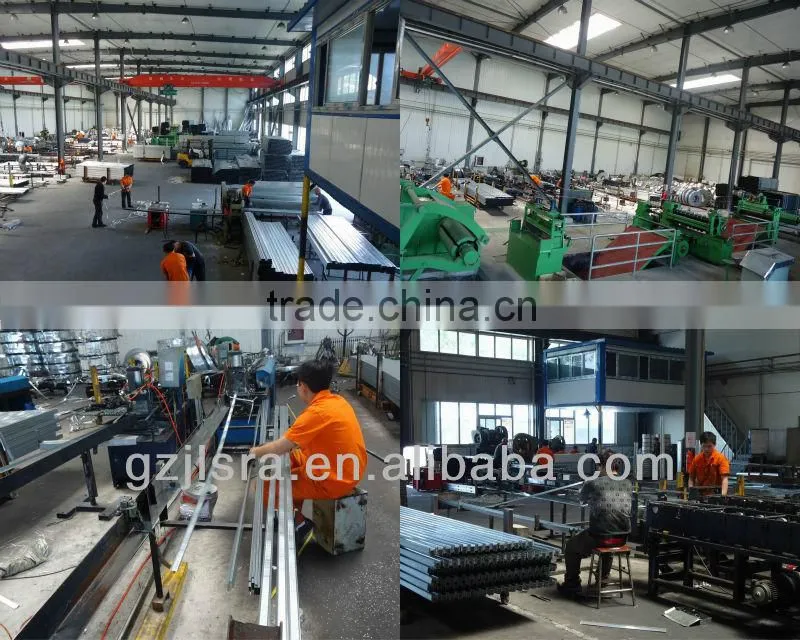

Our company our factory
Factory is in Langfang Hebei, office is in guangzhou , Warmly welcome you to visit . thank you indeed.
