drywall stud and runner channel galvanized mid-east market

Name: drywall stud and runner channel galvanized mid-east market
Brand: JLSRA
Availability: InStock

FOB Price

USD $500 - $1,000 / Ton

25 Tons(Min.Order)

Supply Ability 6000 Ton / Tons per Month
Port Tianjing port
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China		Brand Name	JLSRA
Model Number	GZJL-P012		Material	Other, Galvanized Sheet, Galvanized Sheet,galvanized sheet

Product Description

drywall stud and runner channel galvanized mid-east market

Installation

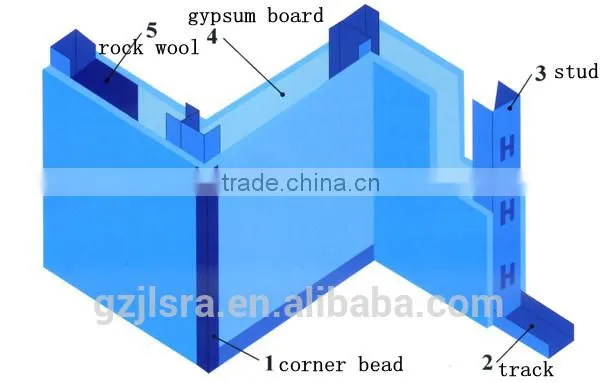

Drywall structure

Specification description

Item	Description	Width(mm)	Hight1 (mm)	Hight2 (mm)	Thickness (mm)	Length
	wall stud	41,44,48,50,51,60, 64,70,75, 76,92,100. hight from 25mm to 50mm.	22	22	0.3~ 0.6mm	3000mm, 3660mm
			23	23	0.3~ 0.6mm
			24	24	0.3~ 0.6mm
			30	30	0.4~0.6mm
			32	32	0.4~ 0.6mm
			33.5	35.5	0.3~ 1.2mm
			35	35	0.45~0.8mm
			40	40	0.45~0.7mm
			50	50	0.5~ 0.8mm
	track	41,50,52,64,66,70, 75,76,92,93,100. hight from 25mm to 50mm.	25	25	0.35~0.6mm
			28	28	0.3~ 1.2mm
			32	32	0.3~ 1.2mm
			40	40	0.5~ 0.8mm

Relevant specification for each market

1)Specification of South America market

Partition
Component name	Specification (mm)	Thickness (mm)	Length (mm)
Stud	41*32	0.4--1	3050
	64*32
	76*32
	92*32
	92*41
	100*35
Track	41*25--40	0.4--1	3050
	64*25--40
	76*25--40
	92*25--40
	100*25--40
Corner bead	32*32	0.3--0.5	3050
Ceiling
Component name	Specification (mm)	Thickness (mm)	Length (mm)
Main channel	38*12	0.4--0.8	3660 or any other length
Main channel	37*20
Furring channel	583416
	643222
	47*17
	522515

2)Specification of Malaysia market

Partition
Component name	Specification (mm)	Thickness (mm)	Length (mm)
U channel	41*23	0.3-0.5	2440, 2740, 3050
	44*22
	48*22
	50*23
	75*24

Roof and Ceiling
Component name	Specificaion (mm)	Thickness (mm)	Length (mm)
C section	753436	0.7--1	3660--5800
	100*50
B batten	583523	0.5--0.8	3660-5800
	653226
	843032
Furring Channel	30*9	0.25-0.3	3660
	34*11

3)Specification of Middle East market

Partition
Component name	Specification (mm)	Thickness (mm)	Length (mm)
Stud	50*35/40	0.5--1	3000
	70*32/35
	75*35/40
	100*35
Track	50*25--50	0.5--1	3000
	70*25--50
	100*25---50
Ceiling
Component name	Spceification (mm)	Thickness (mm)	Length (mm)
Main channel	38*10--12	0.38--0.5	3000
Furring channel	643222
	703522
	804822	0.7	4000

4)Specification of Eastern Europe market

Partition
Component name	Specification (mm)	Thickness (mm)	Length (mm)
Stud	50*50	0.3--0.7	3000
	75*50
	100*50
Track	50*25--50
	75*25--50
	100*25--50
Ceiling
Component name	Specification (mm)	Thickness (mm)	Length (mm)
Furring channel	60*27	0.5--0.7	3000
Wall angle / Track	28*27	0.5--0.7	3000

5)Specification of Myanmar market

Partition
Component name	Specification (mm)	Thickness (mm)	Length (mm)
Stud	75x35	0.4--0.6	2900
	65x32
Track	76x25
	66x25
Roof and Ceiling
Component name	Specification (mm)	Thickness (mm)	Length (mm)
C sectionC section	75x34x36	0.7--1.5	5800
	100x50x50
B Batten	64x24x24	0.4--0.6	5800
	65x32x26
Furring channel / C-line	35x12	0.3--0.5	3960
Main channel	18x28	0.5--0.8	3050
Furring channel	50x17	0.4-0.5

6)Specification of Thailand market

Partition
Component name	Specification (mm)	Thickness (mm)	Length (mm)
Stud	75x35	0.4--0.55	2400, 3000
	65x32
Track	76x25
	66x25
Roof and Ceiling
Component name	Specification (mm)	Thickness (mm)	Length (mm)
C section	75x34x36	0.7-1.5	6000
	100x50x50
B batten	65x25x26.5	0.4-0.6
	65x32x26
Furring channel / C-line	35x12	0.3-0.5	4000

7)Specification of Philippines market

Partition
Component name	Specification (mm)	Thickness (mm)	Length (mm)
Stud	50*32	0.4--0.8	3000
	64*32
	75*35
	92*35
	100*35
Track	50*25--50	0.4--0.8	3000
	64*25--50
	75*25--50
	92*25--50
	100*25--50
Roof and Ceiling
Component name	Specification (mm)	Thickness (mm)	Length (mm)
C section	100*50	0.7--1.5	3000
C section	150*50	0.7--1.5	3000
Main channel	38*12	0.5--0.8	3000
Furring channel	50*19	0.4--0.5	3000

8)Specification of Australia market

*All Australia products wil be made by G550 galvanized sheet with zinc coating 275g/m²*
Partition
Component name	Specification (mm)	Thickness (mm)	Length (mm)
Stud	51x33.5x35.5	0.5--0.75	2700,3000
	64x33.5x35.5		3600,4200
	76x33.5x35.5		4800,6000
	92x33.5x35.5
Track	52x32/28	0.5--0.75	3000
	65x32/28
	77x32/28
	93x32/28
MPW 10 H Stud	12.5X40	0.3-0.5	3000-6000
MPW 10 H Stud	25X35
MPW 10 U Kap	15X25
MPW 10 π Track	55X25
V-angle bead	30X30
L -angle bead	30X6
L-angle bead	30X10
L -angle bead	30X13
L -angle bead	30X16
J -angle bead	30X10X13
Z -angle bead	30X10X10
Z -angle bead	30X10X6
Roof and Ceiling
Component name	Specification (mm)	Thickness (mm)	Length (mm)
Main channel	25x21	0.75	3600,4800,6000
Furring channel	51x38x28	0.5	2700,3000,3600,4800,6000
Furring channel	51x38x16	0.5	2700,3000,3600,4800,6000
C channel	36x16	0.45	3000,3600
Wall angle	35x16x13	0.5	3000
Wall angle	35x28x20	0.5	3000
B batten	94x42x40	0.55/0.75	4800,6000

Steel coils

Machine

Production lines

Loading

Factory

Sales office

Customer pictures

Certificates

Our Advantages:

(1). Design according to customers’ requirements

(2). Manufacture under complete quality control system---ISO9001

(3). Installation with instruction of experienced engineers

(4). Easy to assemble and dismantle

(5). Eco-friendly material: can be used for several times and can be recycled

(6). Shorter construction period, longer using time

(7). High strength and stiffness, high weight bearing.
