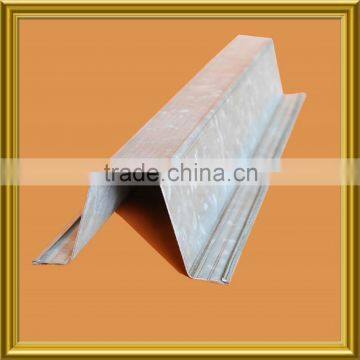

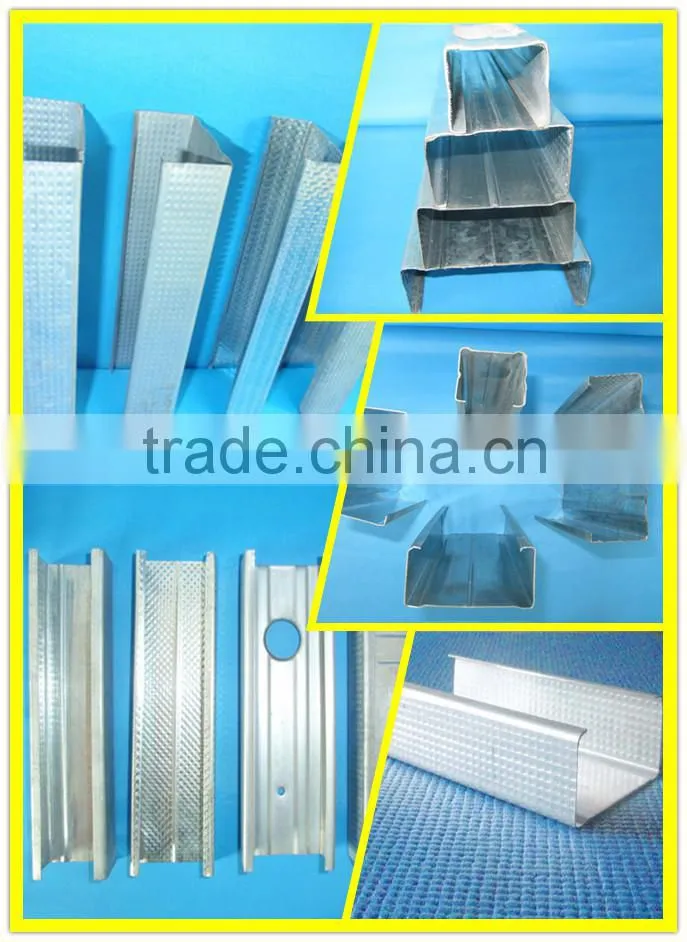

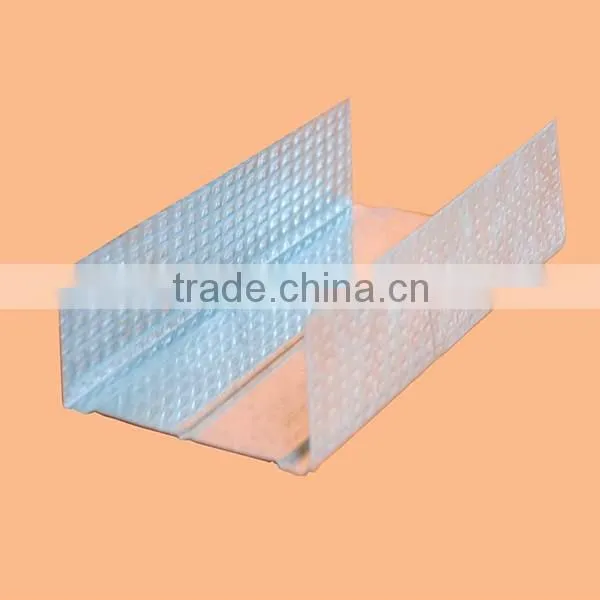

Help CenterGalvanized Steel Furring Channel and Main Channel/stud and Track With High Quality and Competitive Factory Price .
Related Products
-
Galvanized Ceiling Metal Main Channel and Furring Channel With High Quality and Competitive Factory Price .US$ 600 - 900MOQ: 25 Tons -
Galvanized Metal Steel Channel/ Main Channel /furring Channel With High Quality and Competitive Factory Price .US$ 600 - 900MOQ: 25 Tons
-
Galvalume C Channel / C Purlin Profile 75&100mm Indonesia MarketUS$ 1 - 3MOQ: 25 Tons
-
C Channel Profile 75x34x36mm Galvalume G550 AZ100 for Roof Truss StructureUS$ 1 - 3MOQ: 25 Tons
-
Galvanized Wall Metal Stud Light Steel Framing for Drywall CeilingUS$ 0.5 - 1MOQ: 25 Tons
Galvanized steel profile ceiling for furring channel and main channe,partition for stud and track with high quality and competitive factory price .
Langfang Saint Rees Amaron Movable House CO.,LTD thanks for your scan and best regards!
SRA(Saint Rees Amaron) /Jianli is proud to have one of the industry’s most technically knowledgeable, experienced, and professional sales team in the industry. You’ll find that their dedication, attention to detail, and problem solving skill will make finding the best solutions for your unique project an easy process.
Since building conditions and requirements vary from region to region, we’ve assigned team members to specific regions based their unique experience and training. We have produced the drywall patition system for stud ,track,U channel,C channel, CW and UD; ceiling partion system for main channel, furring channel, hollow and furring besar; roofing system for batten, C section, reng and truss. Please tell us your country , region or required specifications to learn more about the dedicated SRA Salesperson in your region and how they can ensure success on your next light steel building project.

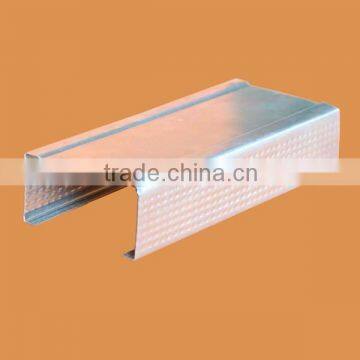

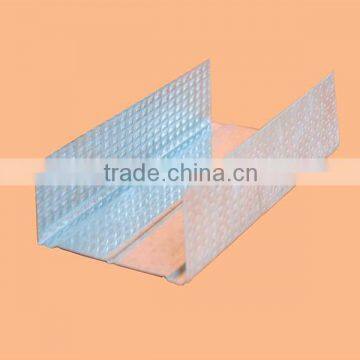

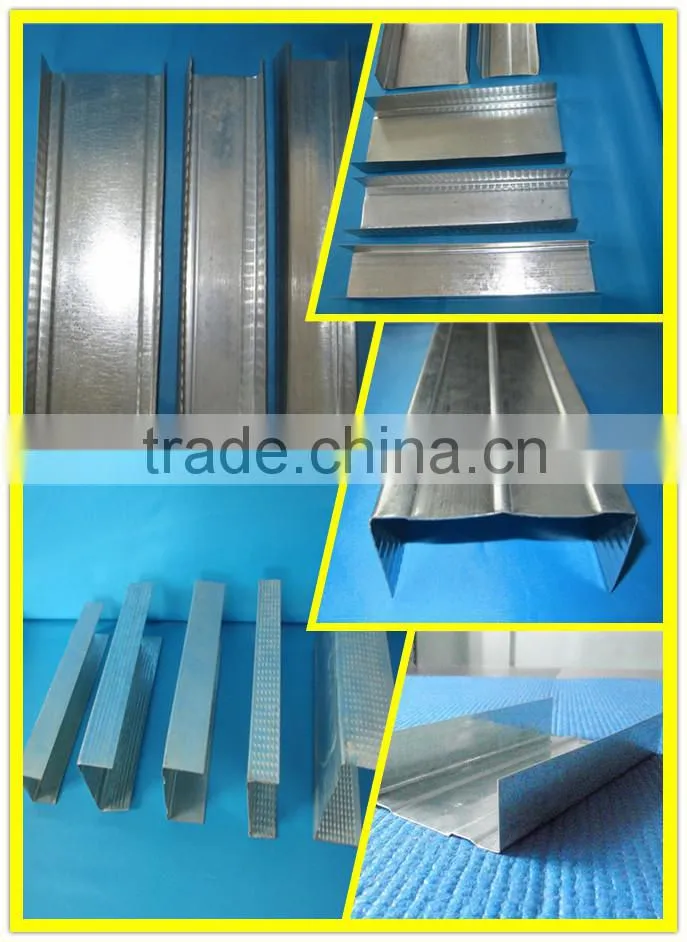

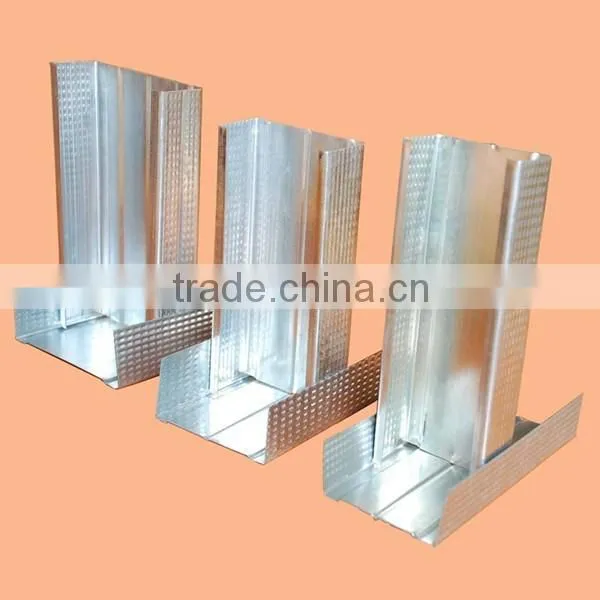

Metal stud and track for drywall partition system.

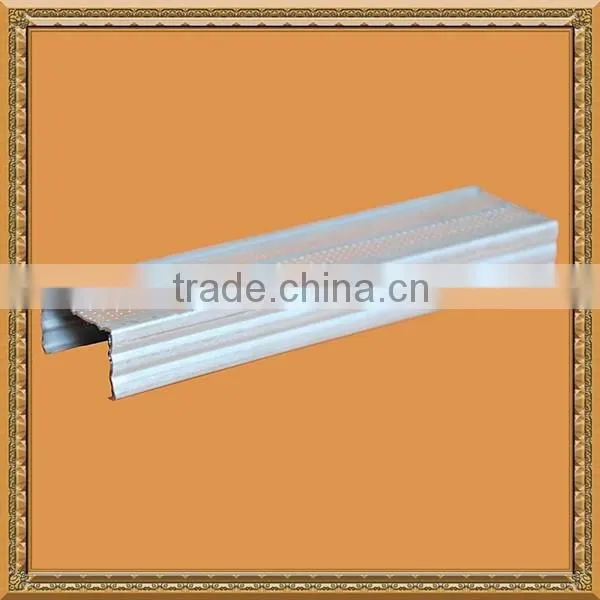

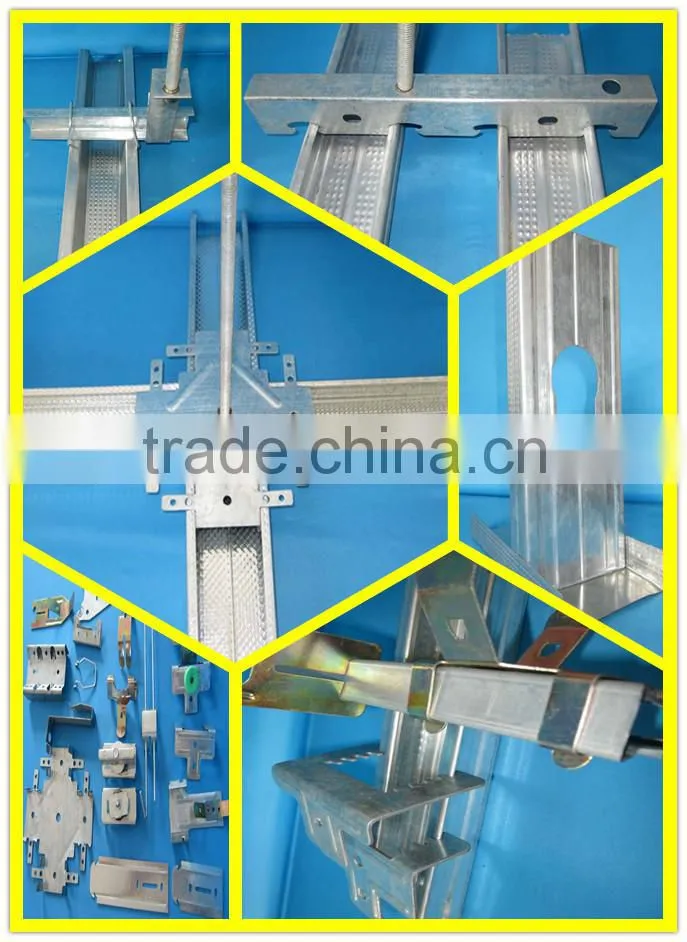

Metal main channel and furring channel for ceiling system.
About other size,we can produce according to your detailed request.

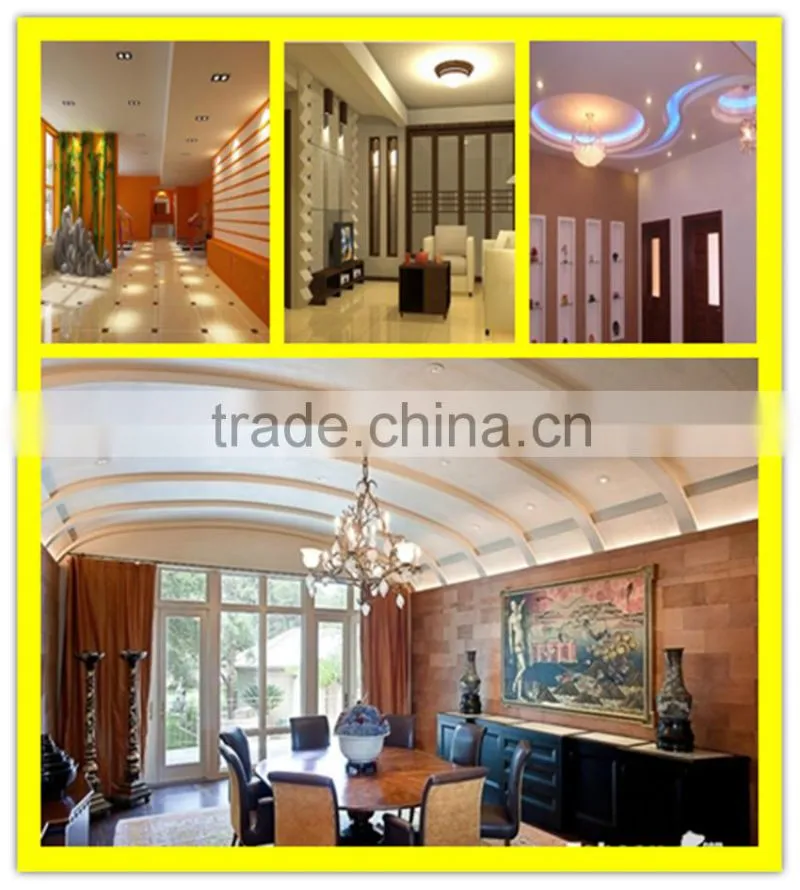

Your drywall ceilings can be virtually any shape, anywhere. Choose from a wide range of heavy-duty system options that provide code-compliant performance in both fire rated and non-fire rated applications with labor-saving advantages.
1. Galvanized Steel Specification.
Pls kindly check our regular size as below,if you need other special size and thickness,pls contact us we will try our best to follow you or your engineer.
Specification of Ausralia market
All Australia products wil be made by G550 galvanized sheet with zinc coating 275g/m2
Partition
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| Stud | 51x33.5x35.5 | 0.5--0.75 |
2700,3000, 3600,4200, 4800,6000 |
| 64x33.5x35.5 | |||
| 76x33.5x35.5 | |||
| 92x33.5x35.5 | |||
| Track | 52x32/28 | 0.5--0.75 | 3000 |
| 65x32/28 | |||
| 77x32/28 | |||
| 93x32/28 | |||
| MPW 10 H Stud | 12.5X40 | 0.3-0.5 | 3000-6000 |
| MPW 10 H Stud | 25X35 | ||
| MPW 10 U Kap | 15X25 | ||
| MPW 10 π Track | 55X25 | ||

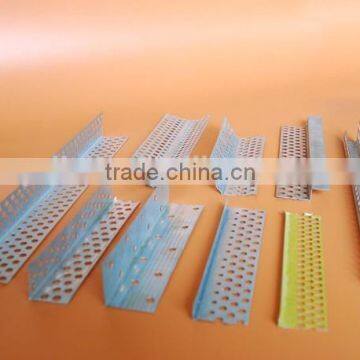

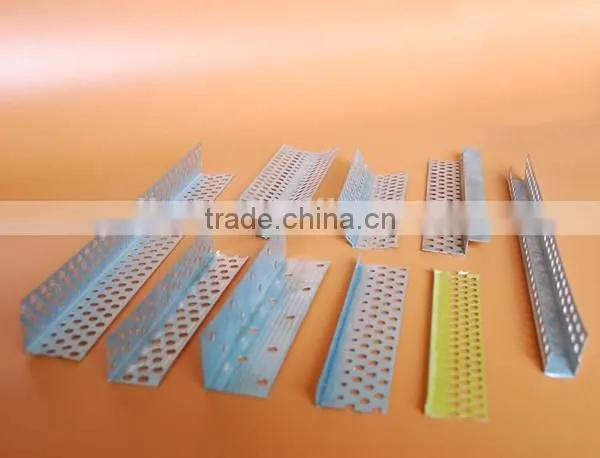

| V-angle bead | 30X30 | ||
| L -angle bead | 30X6 | ||
| L-angle bead | 30X10 | ||
| L -angle bead | 30X13 | ||
| L -angle bead | 30X16 | ||
| J -angle bead | 30X10X13 | ||
| Z -angle bead | 30X10X10 | ||
| Z -angle bead | 30X10X6 |
Roof and Ceiling
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| Main channel | 25x21 | 0.75 | 3600,4800,6000 |
| Furring channel | 51x38x28 | 0.5 |
2700,3000,3600, 4800,6000 |
| 51x38x16 | |||
| C channel | 36x16 | 0.45 | 3000,3600 |
| Wall angle | 35x16x13 | 0.5 | 3000 |
| 35x28x20 | |||
| Batten | 94x42x40 | 0.55/0.75 | 4800,6000 |
Specification of Middle East market
Partition
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| Stud | 50*35/40 | 0.5--1 | 3000 |
| 70*32/35 | |||
| 75*35/40 | |||
| 100*35 | |||
| Track | 50*25--50 | 0.5--1 | 3000 |
| 70*25--50 | |||
| 100*25---50 |
Ceiling
| Component name | Spceification (mm) | Thickness (mm) | Length (mm) |
| Main channel | 38*10--12 | 0.38--0.5 | 3000 |
| Furring channel | 64*32*22 | ||
| 70*35*22 | |||
| 80*48*22 | 0.7 | 4000 |
Specification of South America market
Partition
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| Stud | 41*32 | 0.4--1 | 3050 |
| 64*32 | |||
| 76*32 | |||
| 92*32 | |||
| 92*41 | |||
| 100*35 | |||
| Track | 41*25--40 | 0.4--1 | 3050 |
| 64*25--40 | |||
| 76*25--40 | |||
| 92*25--40 | |||
| 100*25--40 | |||
| Corner bead | 32*32 | 0.3--0.5 | 3050 |
Ceiling
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| Main channel | 38*12 | 0.4--0.8 | 3660 or any other length |
| 37*20 | |||
| Furring channel | 58*34*16 | ||
| 64*32*22 | |||
| 47*17 | |||
| 52*25*15 |
Specification of Eastern Europe market
Partition
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| Stud | 50*50 | 0.3--0.7 | 3000 |
| 75*50 | |||
| 100*50 | |||
| Track | 50*25--50 | ||
| 75*25--50 | |||
| 100*25--50 |
Ceiling
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| Furring channel | 60*27 | 0.5--0.7 | 3000 |
| Wall angle / Track | 28*27 | 0.5--0.7 | 3000 |
Specification of Philippin market
Partition
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| Stud | 50*32 | 0.4--0.8 | 3000 |
| 64*32 | |||
| 75*35 | |||
| 92*35 | |||
| 100*35 | |||
| Track | 50*25--50 | 0.4--0.8 | 3000 |
| 64*25--50 | |||
| 75*25--50 | |||
| 92*25--50 | |||
| 100*25--50 |
Roof and Ceiling
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| C section | 100*50 | 0.7--1.5 | 3000 |
| 150*50 | |||
| Main channel | 38*12 | 0.5--0.8 | 3000 |
| Furring channel | 50*19 | 0.4--0.5 | 3000 |

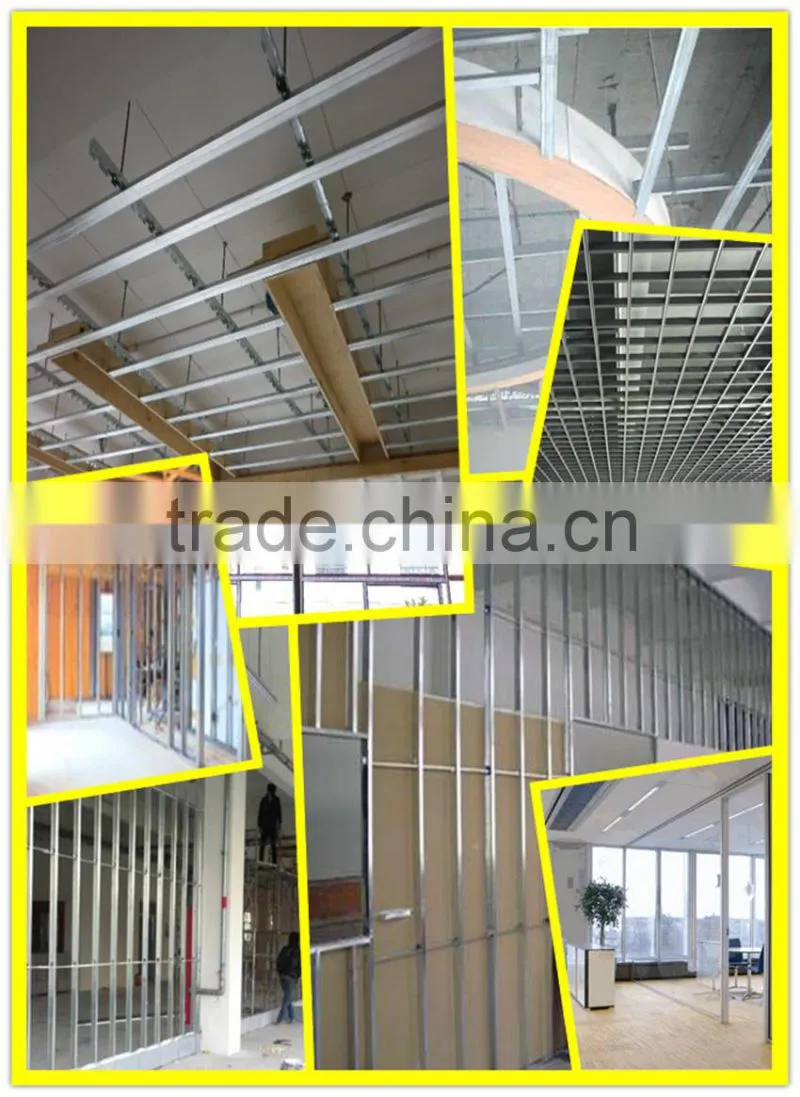

3.Galvanized Steel of ceiling & drywall partition system for project.
6.Head office

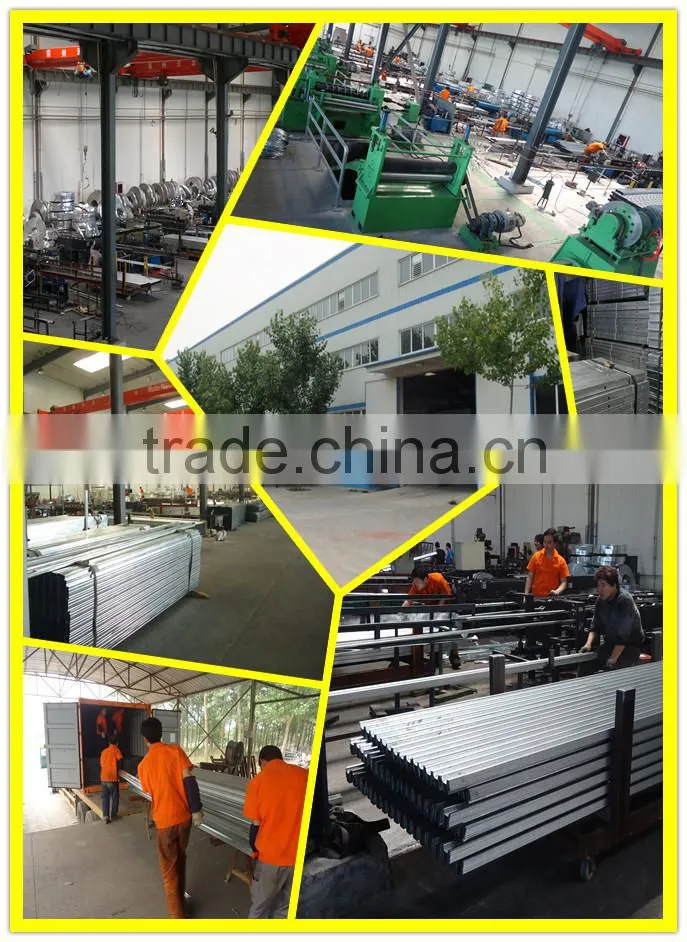

Welcome to visit our head office and factory, we are gonna to entertain you !
