Factory Price Galvanzied Light Steel Frame for Partition

Factory Price Galvanzied Light Steel Frame for Partition thumbnail-1
Factory Price Galvanzied Light Steel Frame for Partition thumbnail-2
Factory Price Galvanzied Light Steel Frame for Partition photo-1

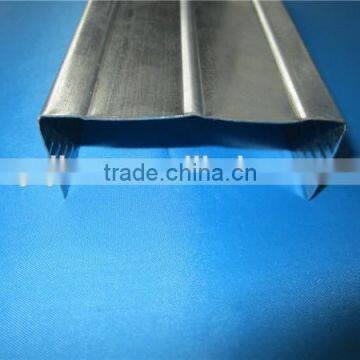

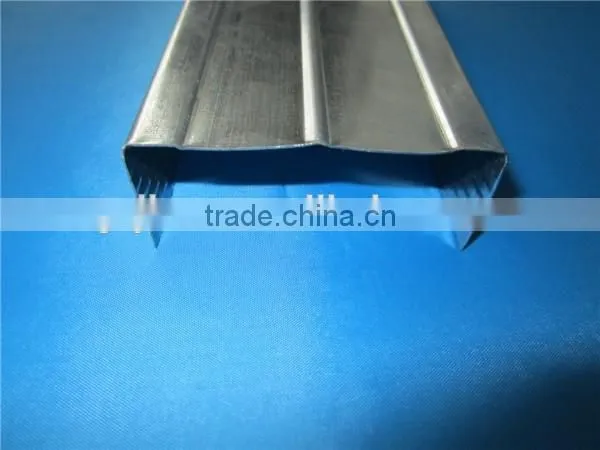

Factory Price Galvanzied Light Steel Frame for Partition photo-2
US$ 200 - 300 MOQ: 25 Tons
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
JLSRA
Model Number:
JLSRA-324
Contact Supplier Request Quote Chat Now
Guangzhou Jianli Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjing port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name JLSRA
Model Number JLSRA-324
Material Other, Galvanized Sheet, Galvanized Sheet,galvanized sheet

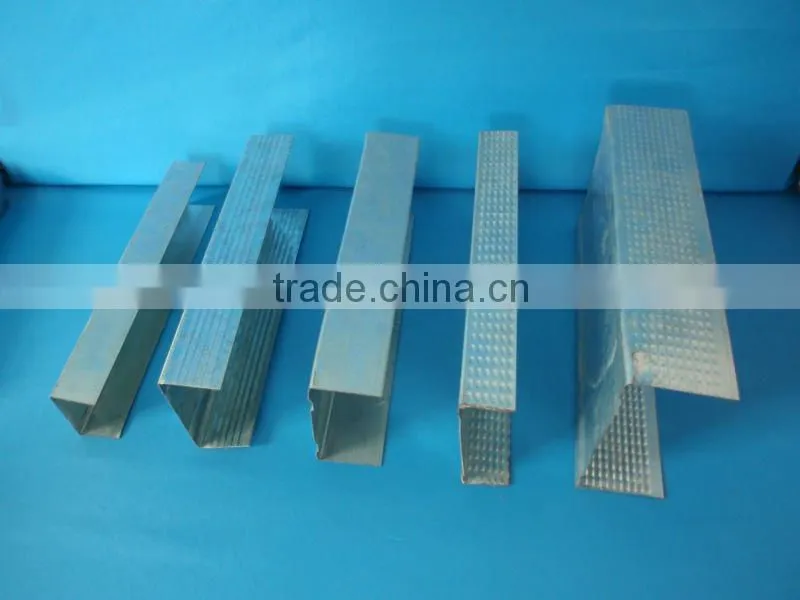

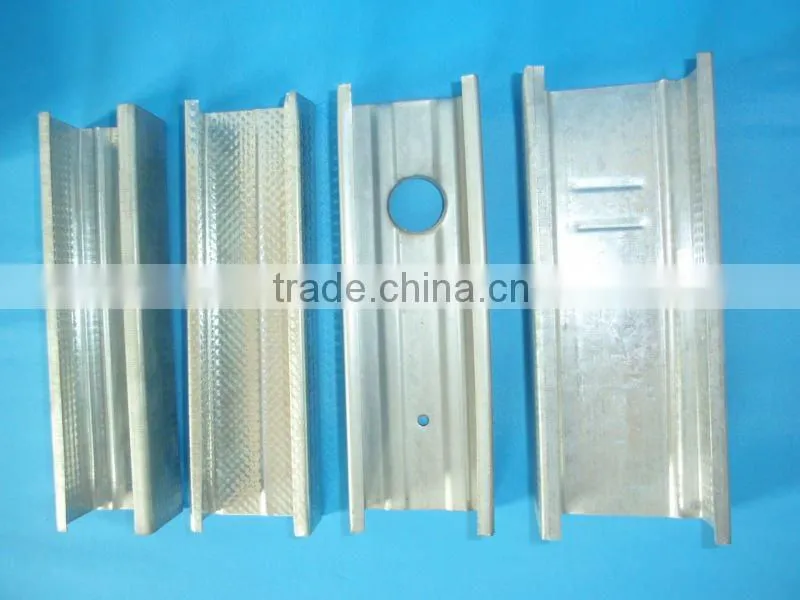

Factory price galvanized steel frame for paitition

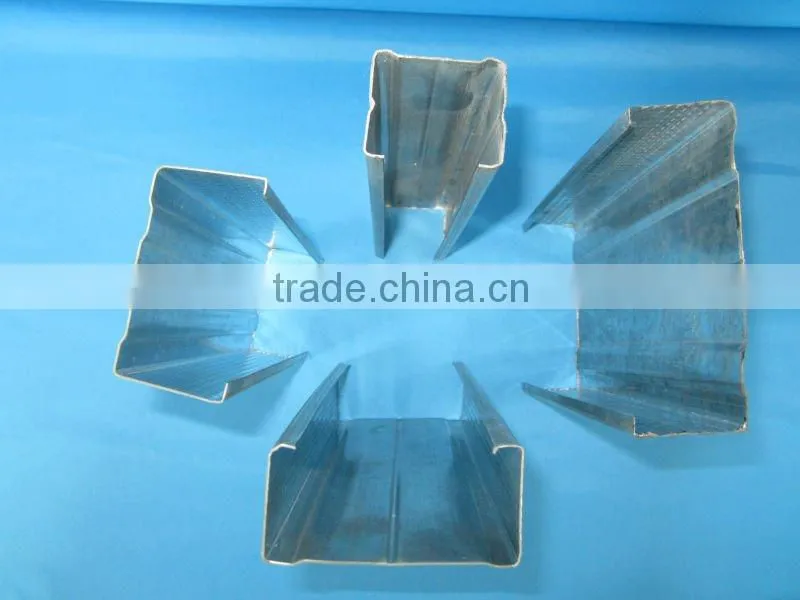

Factory price galvanzied light steel frame for partition Factory price galvanzied light steel frame for partition

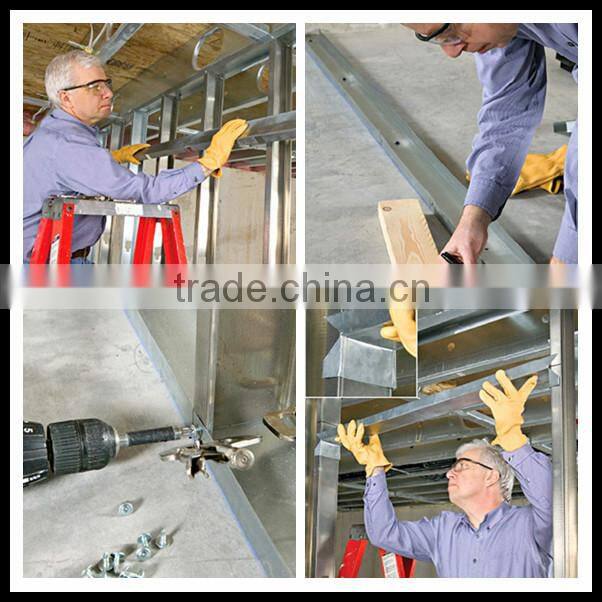

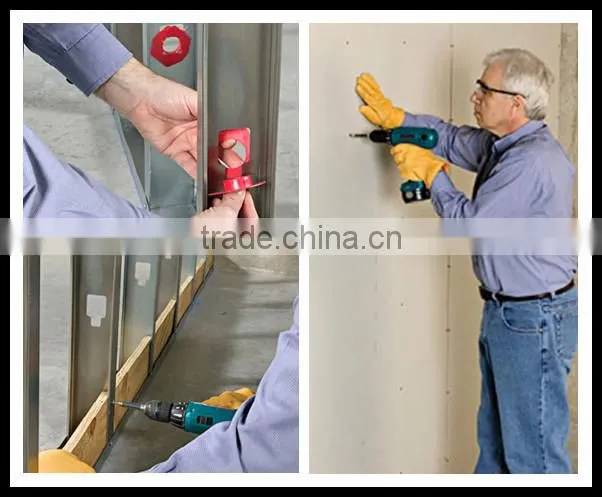

Assembly drawing

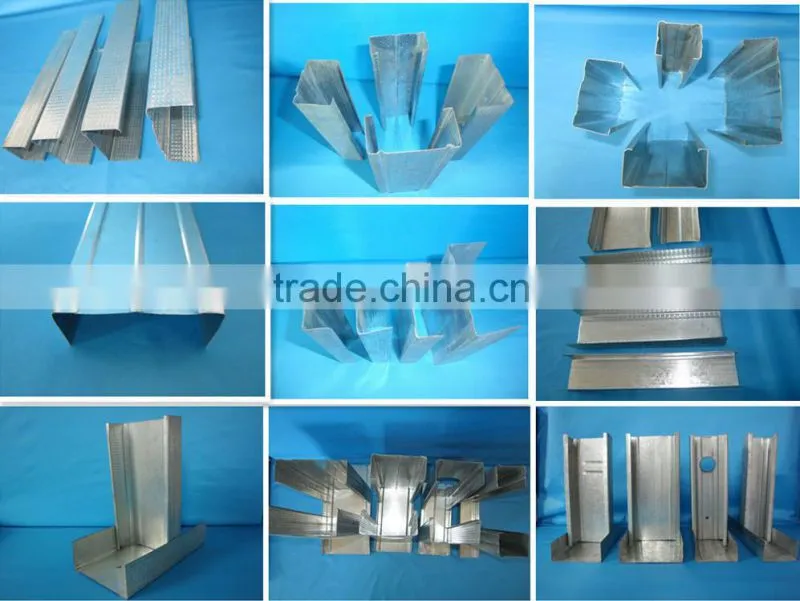

 Factory price galvanzied light steel frame for partitionFactory price galvanzied light steel frame for partition





Specification description

Item Description

Width(mm)

Hight1

(mm)

Hight2

(mm)

Thickness

(mm)

 Length
Factory price galvanzied light steel frame for partition wall stud

41,44,48,50,51,60,

64,70,75, 76,92,100.

 hight from 25mm to 50mm.

 22 22 0.3~ 0.6mm

3000mm,

3660mm
23 23 0.3~ 0.6mm
24 24 0.3~ 0.6mm
30 30 0.4~0.6mm
32 32 0.4~ 0.6mm
33.5 35.5 0.3~ 1.2mm
35 35 0.45~0.8mm
40 40 0.45~0.7mm
50 50 0.5~ 0.8mm
Factory price galvanzied light steel frame for partition track

41,50,52,64,66,70,

75,76,92,93,100.

hight from 25mm to 50mm.

 25 25 0.35~0.6mm
28 28 0.3~ 1.2mm
32 32 0.3~ 1.2mm
40 40 0.5~ 0.8mm





Relevant specification for each market

1)Specification of South America market

Partition
Component name Specification (mm) Thickness (mm) Length (mm)
Stud 41*32 0.4--1 3050
64*32
76*32
92*32
92*41
100*35
Track 41*25--40 0.4--1 3050
64*25--40
76*25--40
92*25--40
100*25--40
Corner bead 32*32 0.3--0.5 3050
Ceiling
Component name Specification (mm) Thickness (mm) Length (mm)
Main channel 38*12 0.4--0.8 3660 or any other length
37*20
Furring channel 58*34*16
64*32*22
47*17
52*25*15





2)Specification of Malaysia market

Partition
Component name Specification (mm) Thickness (mm) Length (mm)
U channel 41*23 0.3-0.5 2440, 2740, 3050
44*22
48*22
50*23
75*24

Roof and Ceiling
Component name Specificaion (mm) Thickness (mm) Length (mm)
C section 75*34*36 0.7--1 3660--5800
100*50
B batten 58*35*23 0.5--0.8 3660-5800
65*32*26
84*30*32
Furring Channel 30*9 0.25-0.3 3660
34*11





3)Specification of Middle East market

Partition
Component name Specification (mm) Thickness (mm) Length (mm)
Stud 50*35/40 0.5--1 3000
70*32/35
75*35/40
100*35
Track 50*25--50 0.5--1 3000
70*25--50
100*25---50
Ceiling
Component name Spceification (mm) Thickness (mm) Length (mm)
Main channel 38*10--12 0.38--0.5 3000
Furring channel 64*32*22
70*35*22
80*48*22 0.7 4000





4)Specification of Eastern Europe market

Partition
Component name Specification (mm) Thickness (mm) Length (mm)
Stud 50*50 0.3--0.7 3000
75*50
100*50
Track 50*25--50
75*25--50
100*25--50
Ceiling
Component name  Specification (mm) Thickness (mm) Length (mm)
Furring channel 60*27 0.5--0.7 3000
Wall angle / Track 28*27 0.5--0.7 3000





5)Specification of Myanmar market

Partition
Component name  Specification (mm) Thickness (mm) Length (mm)
Stud 75x35 0.4--0.6 2900
65x32
Track 76x25
66x25
Roof and Ceiling
Component name Specification (mm) Thickness (mm) Length (mm)
C sectionC section 75x34x36 0.7--1.5 5800
100x50x50
B Batten 64x24x24 0.4--0.6 5800
65x32x26
Furring channel / C-line 35x12 0.3--0.5 3960
Main channel  18x28 0.5--0.8 3050
Furring channel 50x17 0.4-0.5





6)Specification of Thailand market

Partition
Component name  Specification (mm) Thickness (mm) Length (mm)
Stud 75x35 0.4--0.55 2400, 3000
65x32
Track 76x25
66x25
Roof and Ceiling
Component name Specification (mm) Thickness (mm) Length (mm)
C section 75x34x36 0.7-1.5 6000
100x50x50
B batten 65x25x26.5 0.4-0.6
65x32x26
Furring channel / C-line 35x12 0.3-0.5 4000





7)Specification of Philippines market



Partition
Component name  Specification (mm) Thickness (mm) Length (mm)
Stud 50*32 0.4--0.8 3000
64*32
75*35
92*35
100*35
Track 50*25--50 0.4--0.8 3000
64*25--50
75*25--50
92*25--50
100*25--50
Roof and Ceiling
Component name Specification (mm) Thickness (mm) Length (mm)
C section 100*50 0.7--1.5 3000
150*50
Main channel 38*12 0.5--0.8 3000
Furring channel 50*19 0.4--0.5 3000











8)Specification of Australia market



All Australia products wil be made by G550 galvanized sheet with zinc coating 275g/m2
Partition
Component name Specification (mm) Thickness (mm) Length (mm)
Stud 51x33.5x35.5 0.5--0.75 2700,3000
64x33.5x35.5 3600,4200
76x33.5x35.5 4800,6000
92x33.5x35.5
Track 52x32/28 0.5--0.75 3000
65x32/28
77x32/28
93x32/28
 MPW 10 H Stud 12.5X40  0.3-0.5 3000-6000
 MPW 10 H Stud  25X35
 MPW 10 U Kap  15X25
 MPW 10  π Track  55X25
 V-angle bead  30X30
 L -angle bead  30X6
 L-angle bead  30X10
 L -angle bead  30X13
 L -angle bead  30X16
 J -angle bead  30X10X13
 Z -angle bead  30X10X10
 Z -angle bead  30X10X6
Roof and Ceiling
Component name Specification (mm) Thickness (mm) Length (mm)
Main channel 25x21 0.75 3600,4800,6000
Furring channel 51x38x28 0.5 2700,3000,3600,4800,6000
51x38x16
C channel 36x16 0.45 3000,3600
Wall angle 35x16x13 0.5 3000
35x28x20
B batten 94x42x40 0.55/0.75 4800,6000

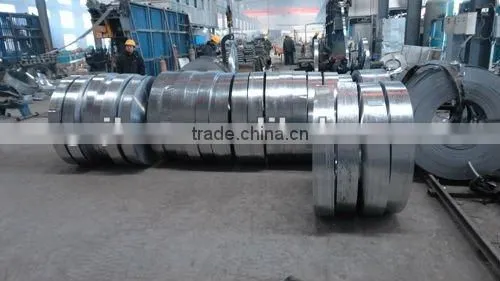

Steel coils

Factory price galvanzied light steel frame for partition

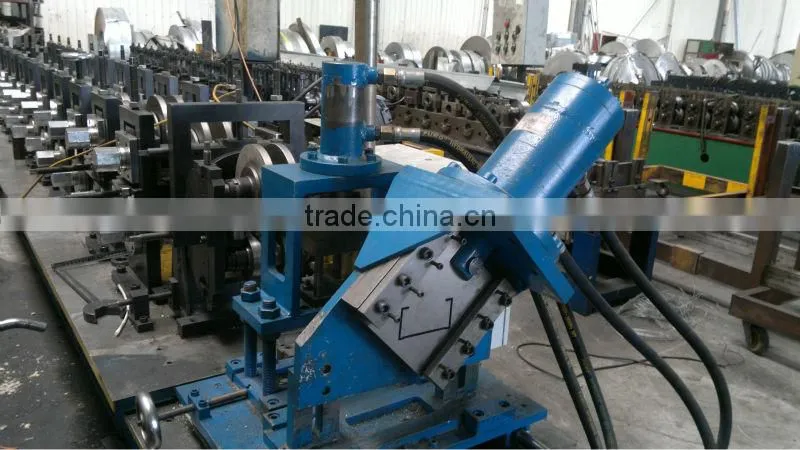

Machine

Factory price galvanzied light steel frame for partition

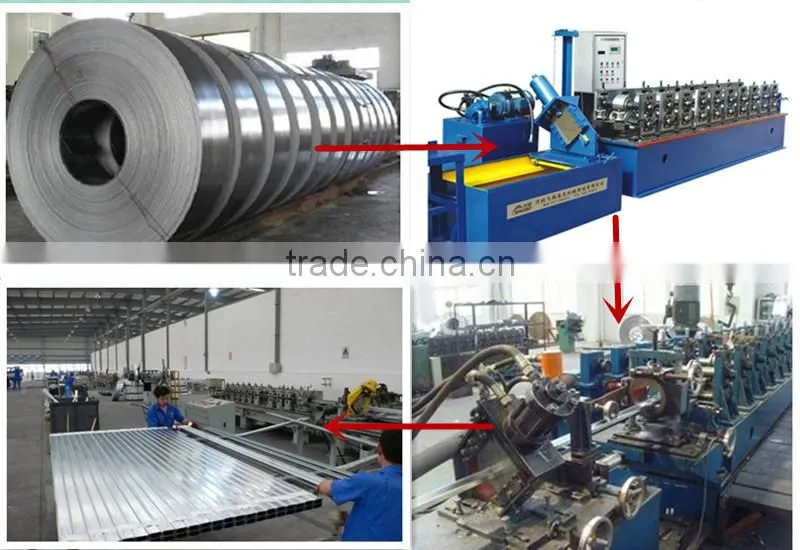

Production lines

Factory price galvanzied light steel frame for partition

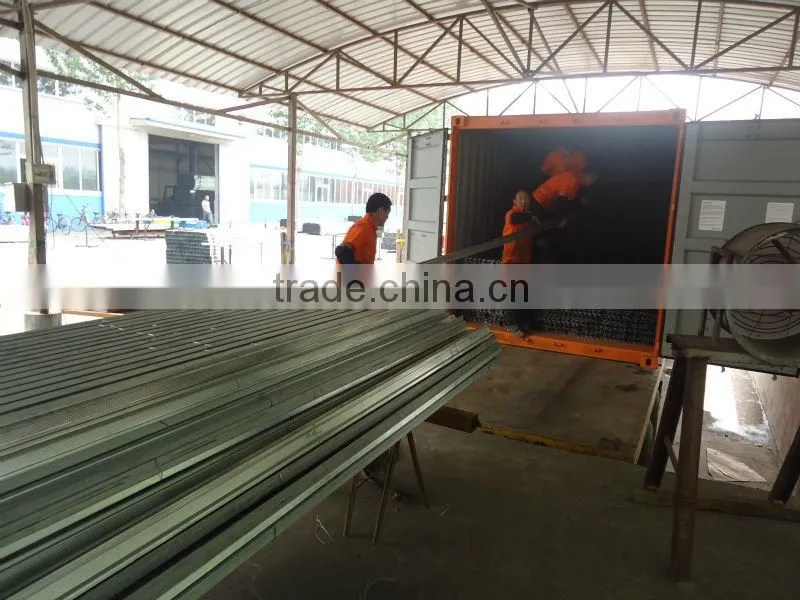

Loading

Factory price galvanzied light steel frame for partition

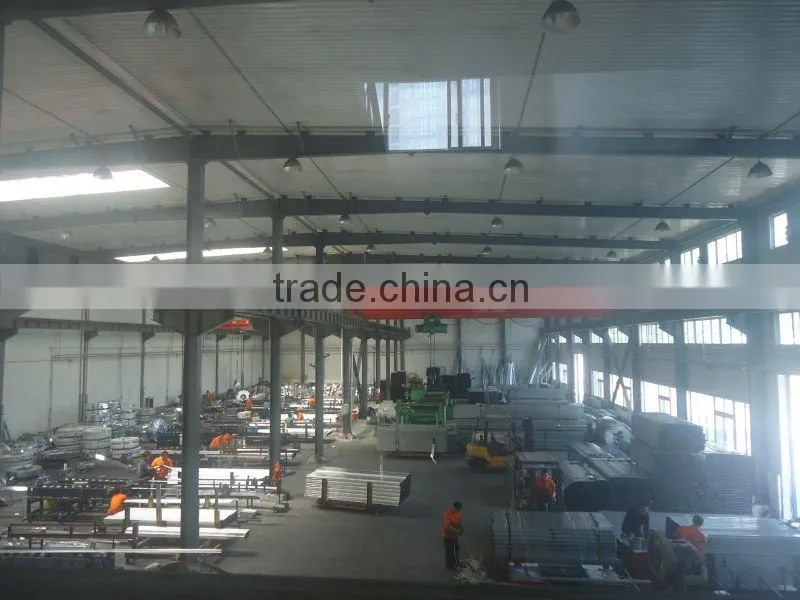

Factory

Factory price galvanzied light steel frame for partition

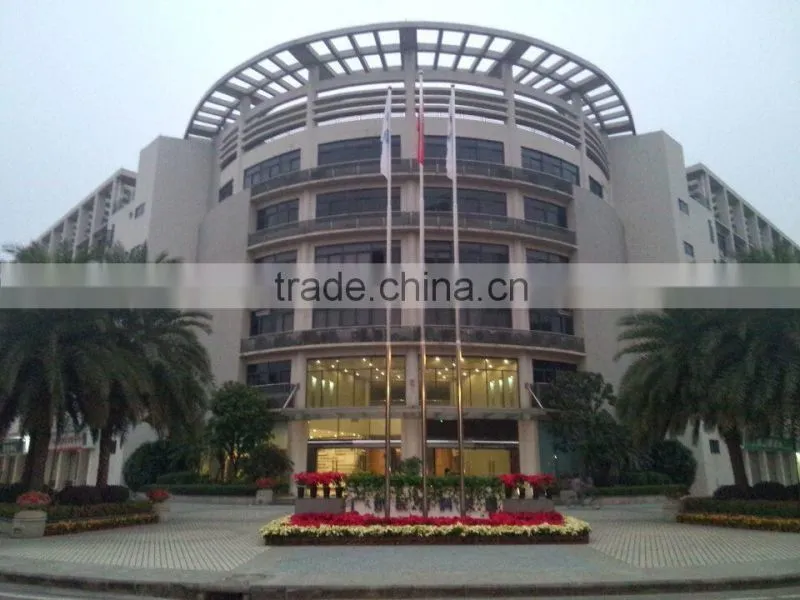

Sales office





Customer pictures





Certificates

Factory price galvanzied light steel frame for partition







Our Advantages:

(1). Design according to customers’ requirements

(2). Manufacture under complete quality control system---ISO9001

(3). Installation with instruction of experienced engineers

(4). Easy to assemble and dismantle

(5). Eco-friendly material: can be used for several times and can be recycled

(6). Shorter construction period, longer using time

(7). High strength and stiffness, high weight bearing.







Contact us

If you are interested in our products, pls feel free to contact us.

Guangzhou JIANLI NEW TYPE PARTITION CO.,ltd

Tel:               +86-20-8746-8918

Fax:              +86-20-8746-9339

Skype:          +86-156-2270-9783

Web:

Office add: B402, NO.8 KESHENG ROAD, PRIUITAL HIGH-TECH INDUSTRY ZONE, BAIYUN DISTRICT,  GUANGZHOU CITY (510540), CHINA
