Product Description:
very popular! top cross rail(TCR) 25*21 for ceiling system

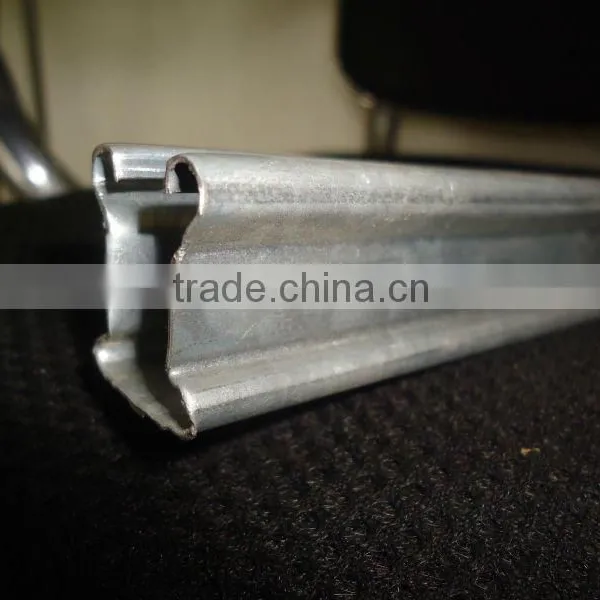

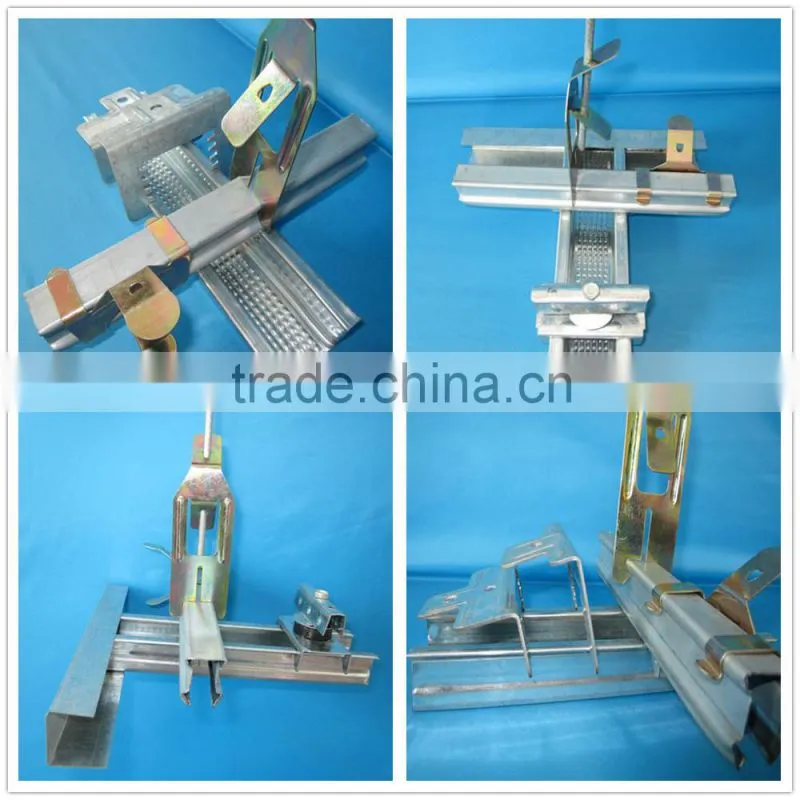

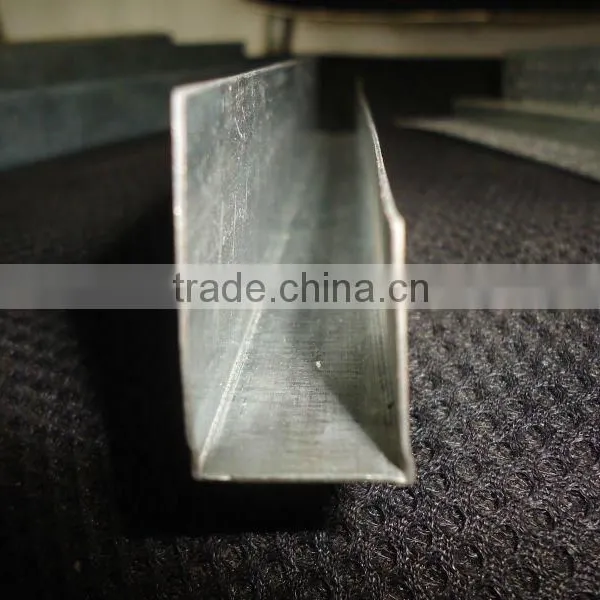

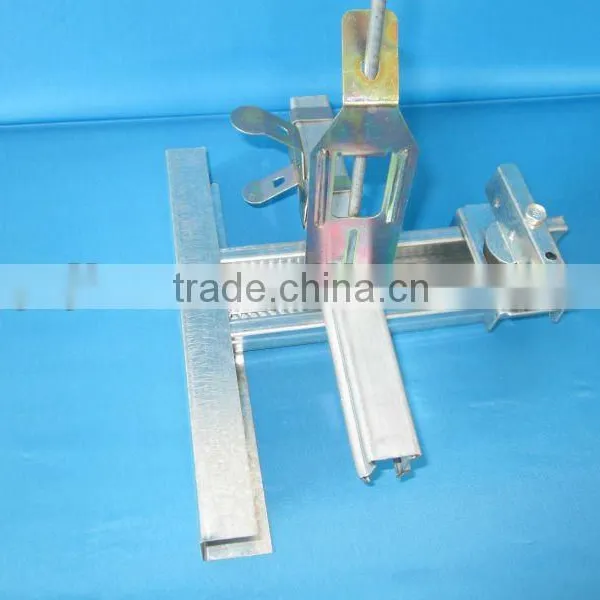

Products show
Specification:
for partition:
Component name |
Description(mm) |
Thickness(mm) |
Length(mm) |
Stud |
51*33.5*35.5mm |
0.3-0.6 |
3000 |
64*33.5*35.5mm | |||
76*33.5*35.5mm | |||
92*33.5*35.5mm | |||
Track |
52*28mm |
||
64*28mm | |||
77*28mm | |||
93*28mm | |||
MPW10 H Stud |
12.5*40mm |
||
25*35mm | |||
MPW10 U Kap |
15*25mm |
||
MPW10 π Trak |
55*25mm |
||
Corner Beads V |
30*30mm |
||
Corner Beads L |
30*6mm |
||
30*10mm | |||
30*13mm | |||
30*16mm | |||
Corner Beads J |
30*10*13mm |
||
Corner Beads Z |
30*10*10mm |
||
30*10*6mm |
for ceiling:
Component name |
Description(mm) |
Thickness(mm) |
Length(mm) |
Main Channel |
25*21mm |
0.75 |
3000,3600,4800,6000 |
Furring Channel |
51*38*28mm |
0.5,0.55 |
2700,3000,3600,4800,6000 |
51*38*16mm | |||
C Channel |
36*16mm |
0.4,0.45,0.48 |
3000 |
Wall angle |
35*16*13mm |
0.4 |
3000 |
30*28*20mm | |||
B Batten |
94*42*40mm |
0.4-0.5 |
6000 |
Advantages and features:
1.Light,good strength,cauterization resistance and water resistance;
2.Matching magnesium fire-proof board,gypsum board,and many other wall and ceiling board;
3.Moisture -proof,shock-resistance,high-effecient,environmentally-friendly and so on;
4.Easy and fast for installation,time-saving;
mpt delivery,high quality,competitive price and complete sets of style;
6.We can supply you the products based on your specific requirements;
