Popular tensile steel frame and form in high quality with low price
Your drywall ceilings can be virtually any shape, anywhere. Choose from a wide range of heavy-duty system options that provide code-compliant performance in both fire rated and non-fire rated applications with labor-saving advantages.
1. Galvanized Steel Specification.
Pls kindly check our regular size as below,if you need other special size and thickness,pls contact us we will try our best to follow you or your engineer.
Specification of Ausralia market
All Australia products wil be made by G550 galvanized sheet with zinc coating 275g/m2
Partition
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| Stud | 51x33.5x35.5 | 0.5--0.75 |
2700,3000, 3600,4200, 4800,6000 |
| 64x33.5x35.5 | |||
| 76x33.5x35.5 | |||
| 92x33.5x35.5 | |||
| Track | 52x32/28 | 0.5--0.75 | 3000 |
| 65x32/28 | |||
| 77x32/28 | |||
| 93x32/28 | |||
| MPW 10 H Stud | 12.5X40 | 0.3-0.5 | 3000-6000 |
| MPW 10 H Stud | 25X35 | ||
| MPW 10 U Kap | 15X25 | ||
| MPW 10 π Track | 55X25 | ||
| V-angle bead | 30X30 | ||
| L -angle bead | 30X6 | ||
| L-angle bead | 30X10 | ||
| L -angle bead | 30X13 | ||
| L -angle bead | 30X16 | ||
| J -angle bead | 30X10X13 | ||
| Z -angle bead | 30X10X10 | ||
| Z -angle bead | 30X10X6 |
Roof and Ceiling
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| Main channel | 25x21 | 0.75 | 3600,4800,6000 |
| Furring channel | 51x38x28 | 0.5 |
2700,3000,3600, 4800,6000 |
| 51x38x16 | |||
| C channel | 36x16 | 0.45 | 3000,3600 |
| Wall angle | 35x16x13 | 0.5 | 3000 |
| 35x28x20 | |||
| Batten | 94x42x40 | 0.55/0.75 | 4800,6000 |
Raw material: 2mm Cold Roll Coil
Zine Coated Level: 60g~200g
Thickness 0.4~1.2mm
Tensil Stress: 696.74MPa
Yeild Stress 669.48 Mpa
Hardness: 15HRC
Standrard GB/T 11981-2001

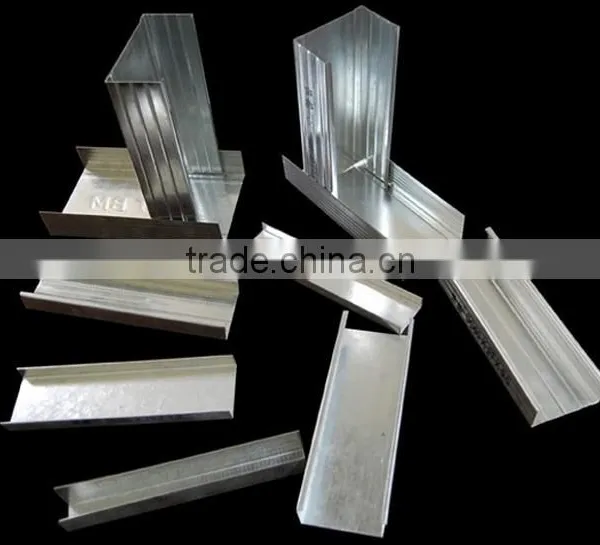

3.Galvanized Steel of ceiling & wall partition system.
6. The Project. 7. Remark.
Quality: the main point we value a lot, CE & SGS can prove our attitude.
Service: we dedicate ourselves to offer you our prompt service.
Responsibility: be responsible to you means being responsible to ourselves.
Integrity: loyal to our products, loyal to our customers.
If you are interesting in our products, pls contact us now.
