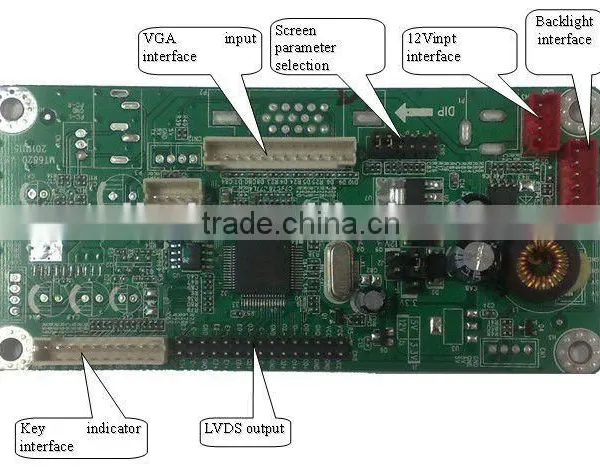

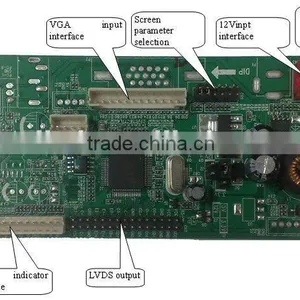

Product Name: 15~32 inch LCD universal Driver controller mother board
Model Name: MT6820
It complete from the PC output VGA analog signals to LCD module can support LVDS signal of the conversion, the design is mainly used for TFT LCD PANEL matching, the product is suitable in the 1920 * 1200 and the following 8 - Bit and 6 - Bit screen.
key feature:

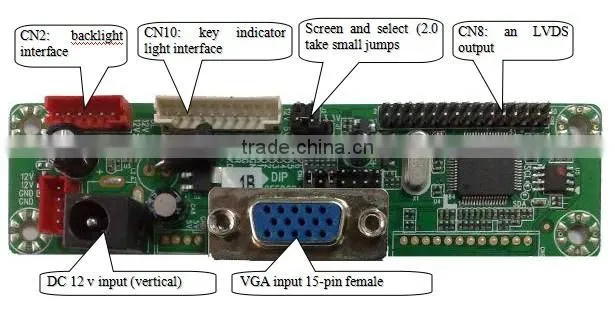

--HDMI, DVI, VGA, signal inputs, 12V DC power input
-- LVDS signal output, 3.3/5/12V power output to panel.
--OSD buttons: 5 keys / 7 keys for option
-- Can directly drive 15-32’’ LVDS panel.
-- Built-in powerful video processing units
-- Infrared remote control: support the infrared remote control
-- ideo Output:Obligated YPBPR/VGA interface can LVDS Format video output
PCB Technical Specification:
| Feature | specification |
| Input signal: | Analogy RGB(0.7Vp-p), Horizontal and vertical sync |
| Support model: | DOS, VGA, SVGA, XGA, SXGA+, UXGA, WXGA, |
| Colour : | 24bit |
| Line sync range : | 30-94.5KHz |
| Vertical sync range: | 56-75Hz |
| Output signal : | Single/dual8bit,LVDS Single/dual standard |
Audio output |
8U 2W×2 |
| OSD Menu: | Brightness, contrast, auto-correction, phase, clock, horizontal |
OSD |
Simplified Chinese, Traditional Chinese, English, French, |
Power supply |
12 V(+/-0.6V)(DC)when without amplifier,could be |
Plug and Play |
support |
power supply |
standby power consumption<1W |
1. Established in 2006, Located in ShenZhen, Over ten years experiences manufacturing.
2. Main products: Main board solutions for LED/LCD monitors, TV, which applied in Computer, advertising, Vehicle, industrial, hospital, Financial industries, home appliance.
3. One-stop solution, save your costs & times;
4. With Strong R&D team, provide you professional technique supports and good service
5. OEM/ODM and small/large orders are welcome;
6. High quality, On-time delivery, safe shipment, and excellent after-sale service.
7. In China, the biggest customers CRRC Corporation Limited, and Financial industrial such as ABC, BOC, CBC, etc.
CND RD Team
Quality Assurance
Workshop and equipments
CND Partners
CND Certificates: ISO, Patent, Hi-Tech
is the best choice for LCD/LED main board solutions, with over 10 years professional experiences both in hardware and software design, she has gained very good reputation during cooperation with biggest clients from financial , rail transit, and industrial etc. choose CND, choose a mutual win-win partner.
