LCD Controller board /LCD TV board with LED Backlightvga,dvi,hdmi,dp port
Rosh/UL/ISO9001
Dual/Single LVDS

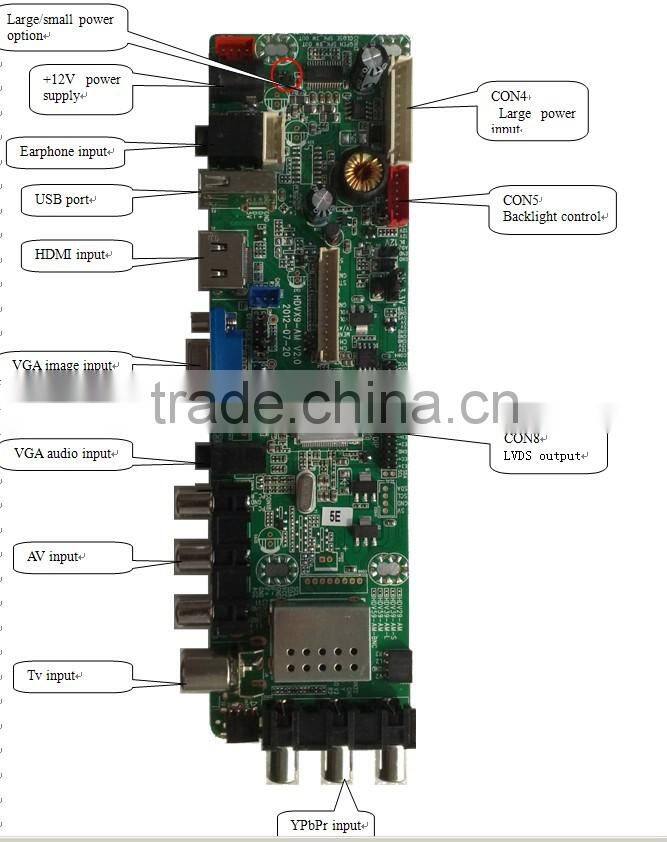

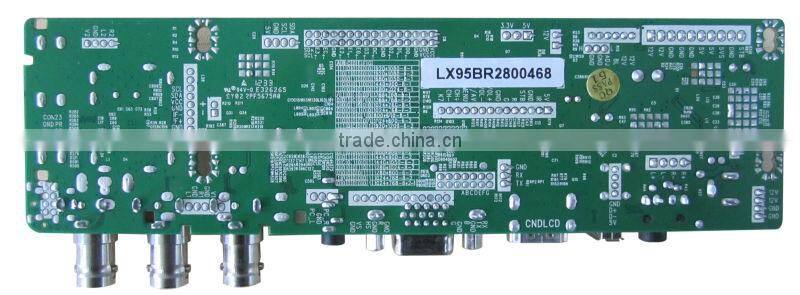

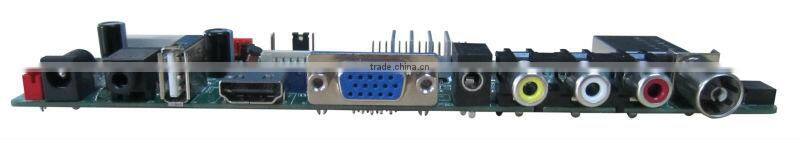

VGA HDMI USB Inputs LCD Controller board /LCD TV board with LED Backlight
This full signal TFT-LCD tv main board is designed for industrial and marine and military grade LDs.
It supports resolution from 640*480@60Hz up to1080*1200@60Hz. It has been applied to drive many different LCD panels,such as Mitsubishi, Chimei, Samsung, AUO, Tianma, BOE, LG and Sharp etc.
products details
| IC | TSUMV59XU | ||
| Market Area | China | ||
| OSD Language | English, French, German, Italian , Spanish , Portuguese | ||
| Match Screen | Interface | Single Dual LVDS | |
| Resolution | Max 1920x1080@60Hz | ||
| Video Input |
TV |
Received frequency | 49MHz – 863MHz |
| Input impedance | 75 | ||
| Color system | PAL, SECAM/NTSC | ||
| Sound system | BG, DK, I, L/M,N | ||
| USB | USB document support format | ||
| Video | Color system | PAL/SECAM/NTSC | |
| Video range | 1.0 Vp-p ±5% | ||
| Audio input | PC | Earphone input | 0.2 – 1.5 Vrms |
| Video | L/R RCA Input | 0.2 – 1.5 Vrms | |
| Component | L/R RCA Input | 0.2 – 1.5 Vrms | |
| Audio output | Frequency | 100Hz - 15000Hz @±3dB (1KHz 0dB benchmark signal) | |
| Loudspeaker output | 2x10W(8) (optional 3W) THD+N<10% | ||
| Key interface | Menu,CH+,CH-,VOL+,VOL-,source, stand b | ||
| Power | Input requirement | 12V, 5V, 5VSB/single+12v optional | |
| Screen power supply | 3.3V,5V, 12V | ||
| Power management | Low power consumption mode, stand by <1W(depending on the power supply) | ||
key feature
1.Main chip : TSUMV59XU-Z1
2.VGA+HDMI+AV+Audio+USB+TV(PAL, SECAM)
3.Panel interface:Single/Dual Channel LVDS
4.Support Resolution: Up to 1920*1080@60HZ
5.Working voltage:+12V
6.Power to panel:+3.3V/+5V/+12V
7.OSD language:English, French, German, Italian, Spanish, Portuguese, Russian(optional)
8.Key function: CH-/CH+/MENU/VOL-/VOL+Souce/Power(Control by remote control)
9.Audio output power:2x2.5W(4Ω)
10.Standby Power Consumption < 0.3W
11.Support IR Control
12.Support USB firmware upgrade and media player function
13.Dimension(mm):189.5(L)*43(W)*17(H)
Packing:
waterproof bag and carton and 300 pieces packed in acarton.
