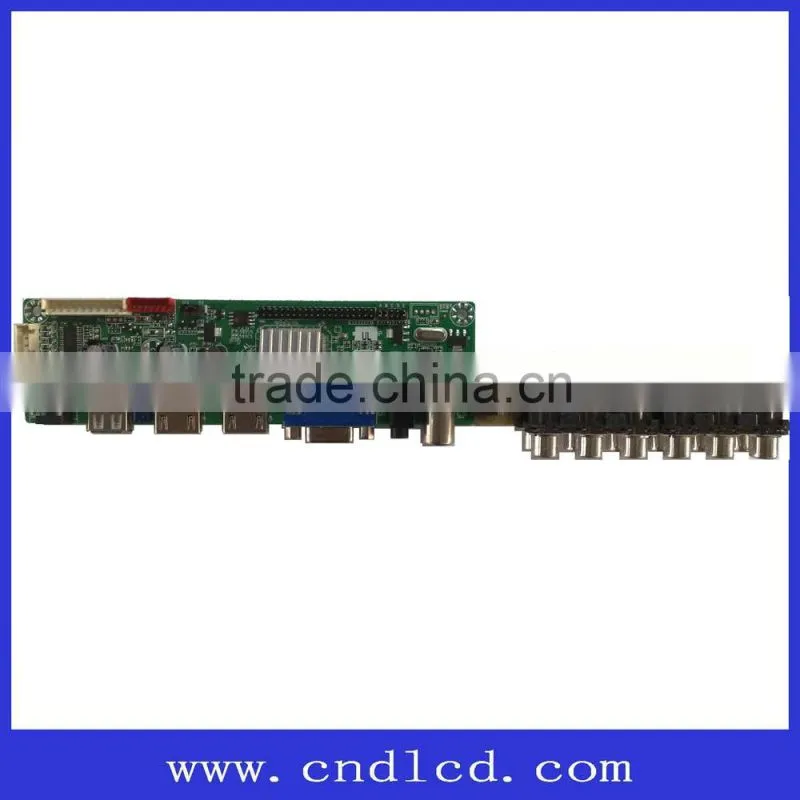

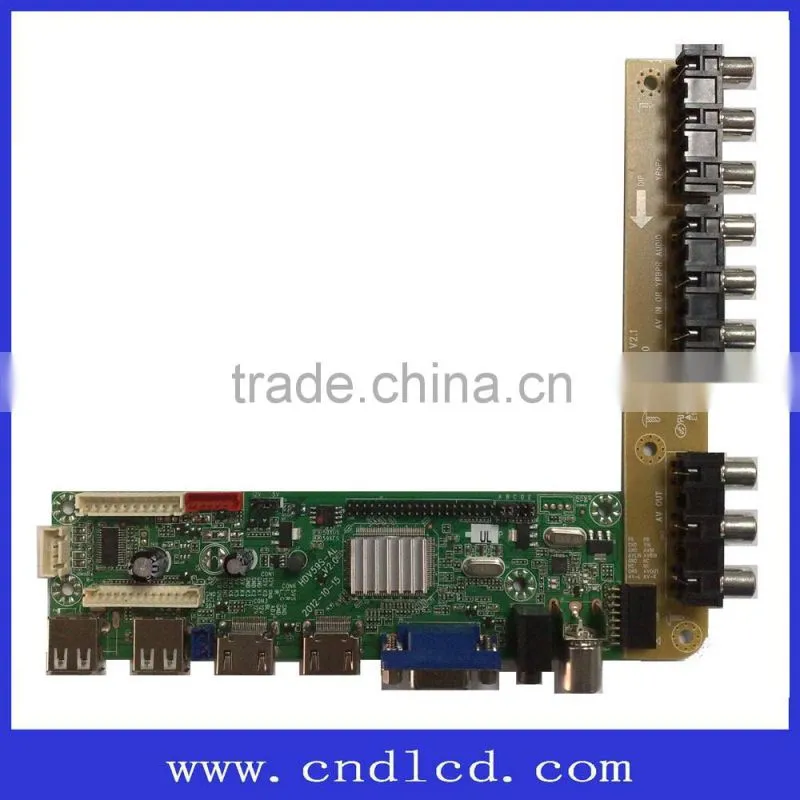

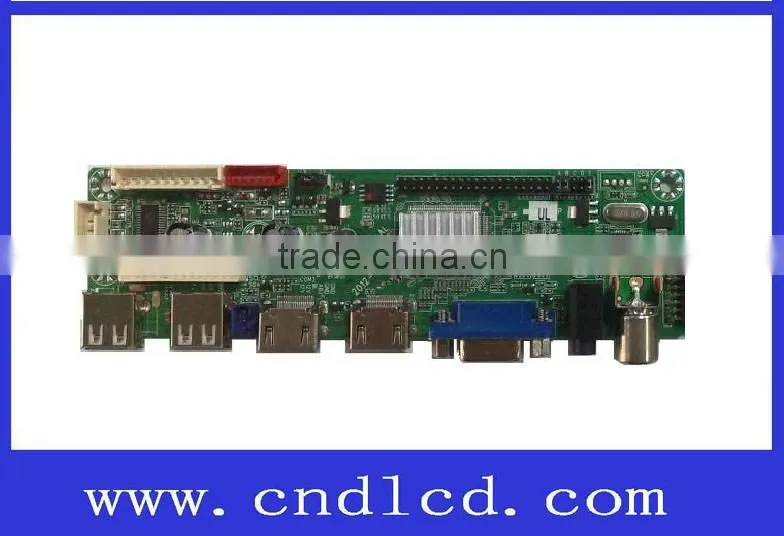

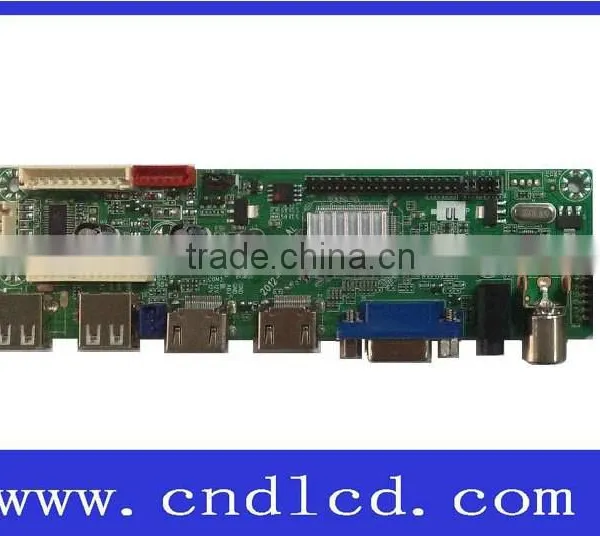

LCD LED TV Board With 2 HDMI +2 USB + VGA + 2 AV +TV +1 YPBPR, LVDS

Model No.: HDV59S-AL

Three Versions as follows

HDV59S-LCD

HDV59S-LED

GENERAL DESCRIPTION
This tv board is suitable for worldwide analog TV system PAL/NTST/SECAM,
which is compatible with LCD panel mainstream manufacturers,such as
SAMSUNG, CMO, AU, LGP,SHARP,BOE etc,It can reappear real world
image color and sound,main IC adopts MSTAR single chip TSUMV59XUS-Z1
program.
Ø with much extension port can realize L type port, mainly used in LED screen
with ultra-thin machine; And single/double bottom out type port, mainly used in
LCD/PDP and ordinary cabinet
Ø TV system support PAL+SECAM/NTSC system,optional full standard system
Ø Max supports FULL HD 1920X1080 resolution TFT-LCD screen
Ø One VGA port,support 1920X1080@60Hz input
Ø 2 HD digital multi-media port(HDMI)1.3A, HDCP1.2 and DVI 1.0
Ø twoUSB port,support Audio,Video,image etc, multi-media format
Ø expanded port board can support1~2 AV input,1AV output,1YPBPR input
Ø Dynamically adjust picture's color , contrast ratio, definition and so on.
Ø Brightness, chroma instantaneous improvement function , black / white level extensions
function , color compensation function
Ø Supports control of treble or bass ,Stereo input
Ø Rating ofAudio loudspeaker output is 5W*2(8ohm)or 8W*2(8ohm)
Ø Automatically detect input video format
Ø Reliable EMC and antistatic treatment measures

Products Specification
