Specifications
lcd/led monitor main board with Full HD tft lcd panelHDMI/VGA/USB
one year warranty
UL /ISO9001/ROASH

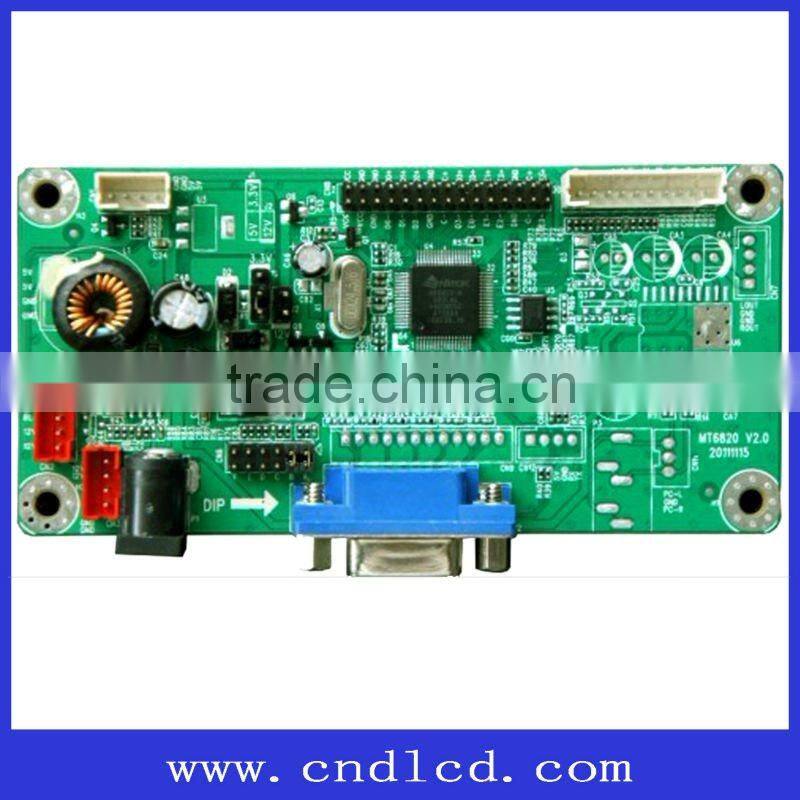

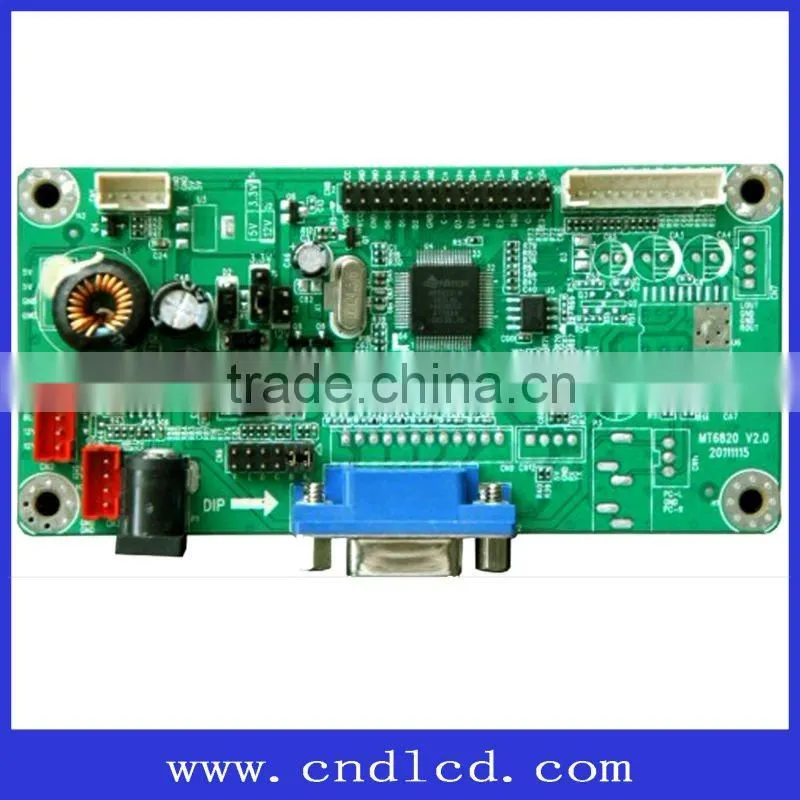

lcd/led monitor main board with Full HD tft lcd panel
key feature:
--HDMI, DVI, VGA, signal inputs, 12V DC power input
-- LVDS signal output, 3.3/5/12V power output to panel.
--OSD buttons: 5 keys / 7 keys for option
-- Can directly drive 15-32’’ LVDS panel.
-- Built-in powerful video processing units
Why choose us :
1.High Reputation ---- We supply products to many World Brand Companies such as TCL and BOE;
2.High Quality Control ----We have UL/ISO 9001 Certifications, Twice QC lines arranged before delivering;
3.Responsible Sales ---- Good service for you from the minute very very beginning to endless future;
PCB Technical Capabilities:
| Feature | specification |
| Input signal: | Analogy RGB(0.7Vp-p), Horizontal and vertical sync |
| Support model: | DOS, VGA, SVGA, XGA, SXGA+, UXGA, WXGA, |
| Colour : | 24bit |
| Line sync range : | 30-94.5KHz |
| Vertical sync range: | 56-75Hz |
| Output signal : | Single/dual8bit,LVDS Single/dual standard |
Audio output |
8U 2W×2 |
| OSD Menu: | Brightness, contrast, auto-correction, phase, clock, horizontal |
OSD |
Simplified Chinese, Traditional Chinese, English, French, |
Power supply |
12 V(+/-0.6V)(DC)when without amplifier,could be |
Plug and Play |
support |
power supply |
standby power consumption<1W |
products :
Our certifications:
shipping &packing
About us :
Founded in 2004, Shenzhen CND Science & Technology Co. Ltd is a specialized supplier for electronic
components. It mainly supply world brand integrated circuit (especially IC of home use electronically equipm
-ents and ICs which are short of supply on the market). Because of its good service, low price and high quality, it has been a fixed supplier for many domestic
and overseas corporations for years , and thus has gained a good reputation in the similar areas.
Dear customers,
Thanks for visiting our product.
Interested in our products or any questions, Please contact us, we will reply promptly.
