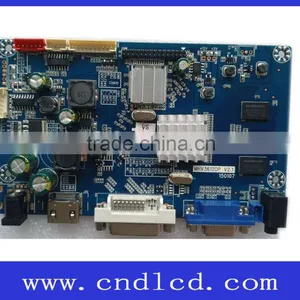

DVI HDMI VGA to LVDS 2K LCD Monitor Display Board With PIP PBP POP Function thumbnail-1

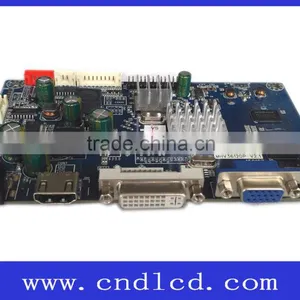

DVI HDMI VGA to LVDS 2K LCD Monitor Display Board With PIP PBP POP Function thumbnail-2

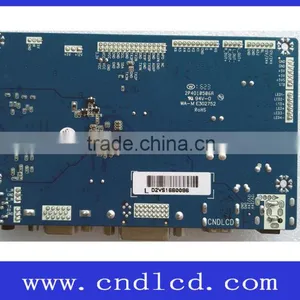

DVI HDMI VGA to LVDS 2K LCD Monitor Display Board With PIP PBP POP Function thumbnail-3
DVI HDMI VGA to LVDS 2K LCD Monitor Display Board With PIP PBP POP Function photo-1

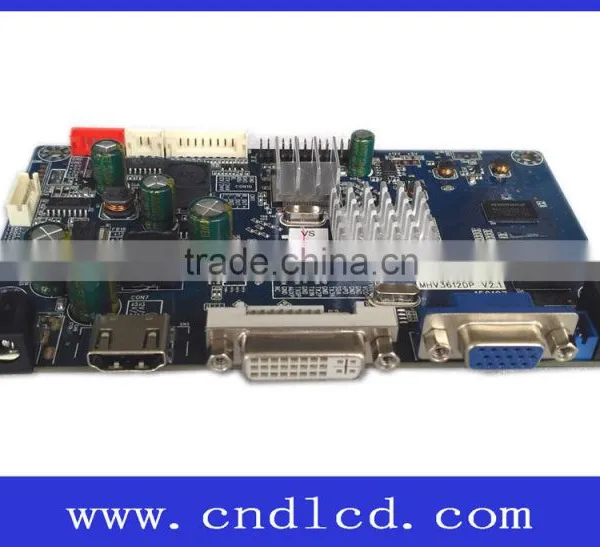

DVI HDMI VGA to LVDS 2K LCD Monitor Display Board With PIP PBP POP Function photo-2

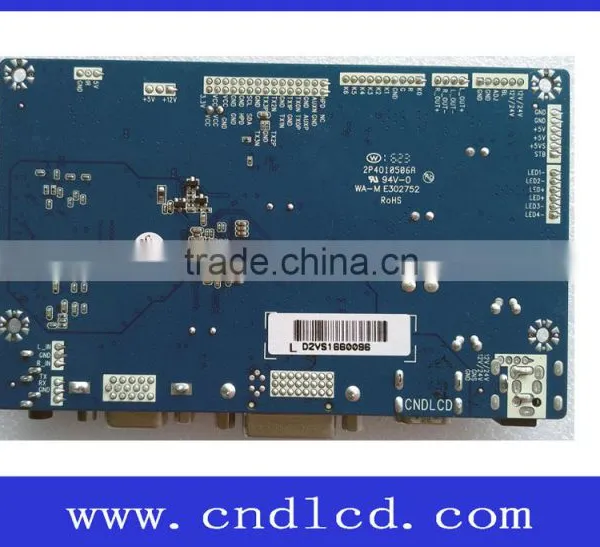

DVI HDMI VGA to LVDS 2K LCD Monitor Display Board With PIP PBP POP Function photo-3
US$ 20 - 21 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CND
Model Number:
MHV3612DP
Contact Supplier Request Quote Chat Now
CND Electronic Technology (Shenzhen) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name CND
Model Number MHV3612DP
Type TFT
Product Description

Product Name:   2K LCD HDMI to eDP Mother Main Driver Controller Board

Model No.:  MHV3612DP -VS 2.0





2K QHD eDP Resolution Controller Driver Board Key Features:



  • LED backlight output
  •  Industrial control system
  • DP output
  • VGA +DVI +HDMI+USB+Audio  inputs
  • Max support 2K QHD 2560*1440 @60HZ, 1920x1200@144HZ
  • Reliable EMC and antistatic treatment measures
  • Audio loudspeaker Power output is 3W*2(8ohm)
  • Support Gamma/SRGB
  • FPS/RTS Game Function and special Effects
  • With Image Flip Function



2K QHD Resolution eDP Controller Driver Board General Description:

This products adopts QHD resolution +DP IC system Max support 2560*1400 resolution screen ,Mainly used for QHD monitor display and commercial display, etc. with HDMI ,DVI,VGA input,  25W LED backlight output, standby power consumption <0.5W, Audio loudspeaker

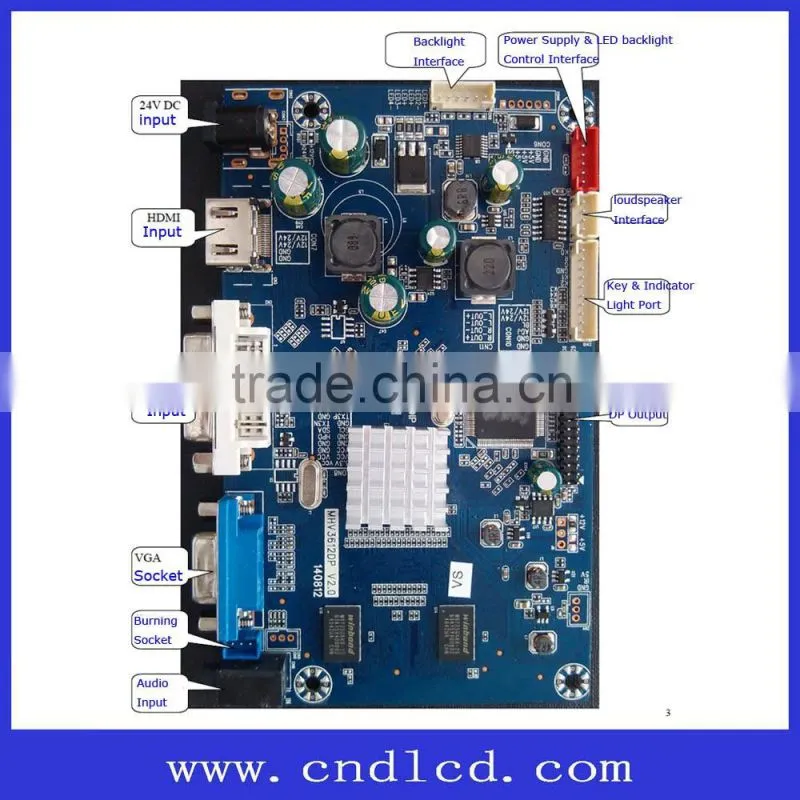

 DVI HDMI VGA to LVDS 2K LCD Monitor Display Board with PIP PBP POP Function







2K QHD eDP Controller Driver Board Product Specification

Feature

Description
inputs port D-SUB(VGA)
DVI-D

HDMI 1.4
Output signal DPTX 2.7G/eDP 2.7G 4-Lan

MAX:2560X1440
control keyboard  POWER,+,-,MENU,AUTO
OSD language (option) Simplified Chinese, Traditional Chinese , English , French , German, Italian, Spanish , Portuguese , Dutch , Turkish, Korean, Japanese, Arabic, Persian, Russian, Thai, Vietnamese , Bahasa Indonesia
OSD menu  Brightness, contrast, automatic, Function set,reset
Power input



 24V/12V(+/-0.5V) 4pin DCsocket/DC socket/4Pin 2.54socket
LED backlight outputs <80V,35W
Audio output power  3WX2

Plug and play function



 support
power management standby consumption<0.5W
