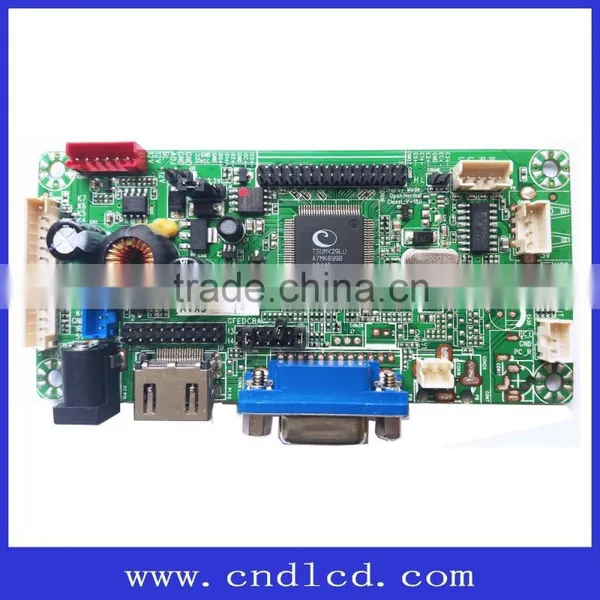

Product Name: 19inch LCD AV board with Color OSD Operating Menu Humanization
Model No.: AVX9-CZ
Gerneral Description
This board is compatible with LCD panel of mainstream manufacturers ,Such as SUMSUNG,CMO,AU.LGP,SHARP.,BOE and so on. IT can represent truly the color of image and sound in real world.Key IC adopt MSTAR single chip ,the program of TSUMV39LU(optional TSUMV29LU chip)
Ø It can support FULL HD 1920X1200 TFT-LCD panel
Ø ALL port can use pin socket
Ø One way HD digital multi-media port(HDMI)1.4,HDCP1.2 or DVI 1.0
Ø One way VGA input
Ø One way video input,can use RCA socket or BNC socket
Ø One way audio input,use 3.5 standard earphone socket.
Ø 3D video decoding(PAL/NTSC) bright color separation,space noise reduction function
Ø Automatically detecting Video input
Ø support 4:3 and 16:9 display mode switch
Ø color OSD, Operating menu humanization
Ø Reliable EMC and treatment measure of anti-static
Ø 12V DC input
Ø Be used in car display,monitor system
Ø One way extended USB port,support updating
Specification:
IC |
TSUM39LU(can choose TSUM29LU) |
||
OSD language |
English , French , German, Italian, Spanish , Portuguese |
||
|
Match panel |
resolution |
Max.:1920X1080 |
|
interface |
Single/dual LVDS |
||
voltage |
3.3V,5V,12V |
||
Input signal |
HDMI |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
|
computer |
Signal RGB(0.7Vp-p),Synchronous separation line (TTL) |
||
video |
Color system |
PAL/SECAM/NTSC |
|
Video range |
1.0 Vp-p ±5% |
||
Audio |
Earphone input |
0.2 – 1.5 Vrms |
|
Audio |
consumption:3W * 2(8ohm) THD+N<10% |
||
socket:4Pin/2.0mm space | |||
Control key |
STANDARD SEVEN KEY:POWER/MENU/INPUT OPTION/CH+/CH-/VOL+/VOL- Compatible five key |
||
OSD menu: |
Brightness, Contrast, Auto-correction, Horizontal &field position, Function set, Color system, Language, Background, Noise reduction |
||
Power supply input: |
4pin 2.0mm socket or 12V DC socket |
||
PCB dimension: |
108mmx51.3mmx×18mm |
||
Plug and play function: |
support |
||
