LCD Controller Board HDMI to LVDS Converter Controller Board for Projector

US$ 15 - 17 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

CND

Model Number:

AV6M16-D

CND Electronic Technology (Shenzhen) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name CND

Model Number AV6M16-D

Type TFT

Product Description

Product Name: LCD controller board HDMI to LVDS converter controller board for Projector

Model No.: AV6M16-E

Key Feature Industrial Control LCD Monitor Board:

1. Max Support Resolution 1080P

2. the HDMI support to 1.3, HDCP support to 1.1

3. 3D video decode and luminance separation.

4. support 1080i's 3D video dynamic Adaptive line-by-line exchange

5. 3D video dynamic noise reduction

6. automatic 3:2 or 2:2 format test and restore; 4:3 or 16:9 switching over, non-linear scaling images

7. The MSTAR third generation ACE picture engine, adjust dynamically picture's color , contrast ratio, definition etc

8. Perfect industrial set mode, convenience for productive maintenance.;

9. Dependable EMC and electrostatic prevention processing method

10. Standby <1w (according to AC the electrical source to decide), energy conservation.

11. True colour OSD, humanization operation menu, support some high level function l

ike channel editing

12. Support USB2.0 interface

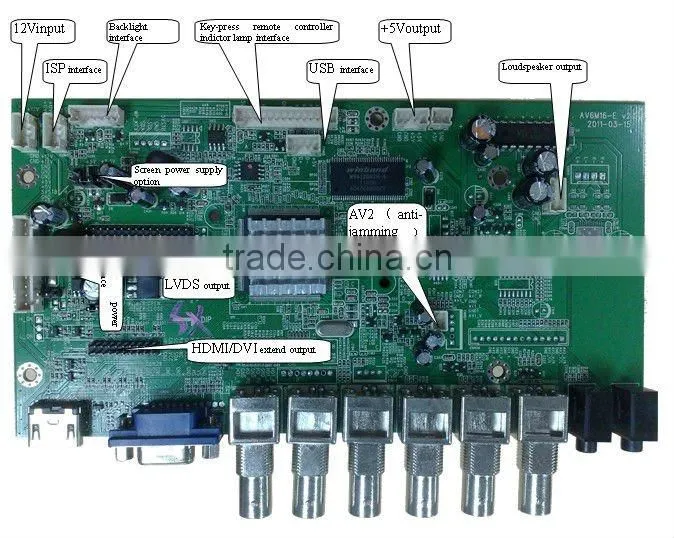

Product Specification Industrial Control LCD Monitor Board:

SCREEN	TYPE	TFT-LCD
	RESOLUTION	Max.:1920X1080
	INTERFACE	SIGNAL/DUAL 8/10bit LVDS;
	VOLTAGE	3.3V,5V,12V
PC-RGB	MODE	DOS, VGA, SVGA, XGA, SXGA+, UXGA, WXGA, WXGA+, WSXGA
	HORIZONTAL SYNC RANGE	30-75KHz
	FIELD SYNC RANGE	56-75Hz
	DISPLAY COLORS	16777216
	MAX MODE	1920X1080@60Hz

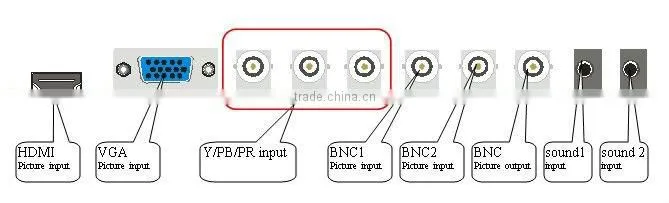

INPUT SIGNAL	AV/ S-Video/ YPBPR	COLOR SYSTEM:PAL/NTSC/SECAM SYSTEM
		AVSIGNAL: CVBS/1.0Vp-p@75ohm
		S-VIDEO:Y:1Vp-p@75ohm /C: 0.286Vp-p@75ohm
		480i/P,576i/P,720P,1080i/P
		BNC OPTION: BNC INPUT, BNC OUTPUT
	RGB	SYNC : HORIZONTAL Field SEPARATION ,TTL, POSITIVE OR NEGATIVE
	RGB	SIGNAL RANGE : 0.7Vp-p@75ohm
	HDMI/DVI	SOPPORT FORMAT: 480i/P,576i/P,720P,1080i/P
	HDMI/DVI	COMPATIBLE: HDMI 1.3 /HDCP 1.2
	Audio	SIGNAL RANGE : 500mV rms
	USB	SUPPORT MP3 JPG PICTURE
OUTPUT SIGNAL	AV	SIGNAL RANGE :CVBS 1.0Vp-p
	Audio	POWER : 3W * 2
	Audio	SOCKET:4Pin/2.0mm SPACE
CONTROL KEY-PRESS	FIVE/SEVEN KEY(OPTION):POWEER/MENUU/INPUT OPTION/CHANNEL+/CHANNEL-/VOLUME+/VOLUME-
OSD MENU:	Brightness, Contrast, Auto-correction, Horizontal &field position, Function set, Color system, Language, Background, Noise reduction
OSD LANGUAGE(OPTION):	Simplified Chinese, Traditional Chinese, English, French, German, Italian, Spanish, Portuguese, Turkish
POWER INPUT:	B:5Vstb,12V,5V ,5V/12V
POWER INPUT:	EXTERNAL Adapter: 12VDC
SIZE :	189.0mm(L)x100mm(W)x18mm(H)
PLUG&PLAY FUNCTION :	SUPPORT
