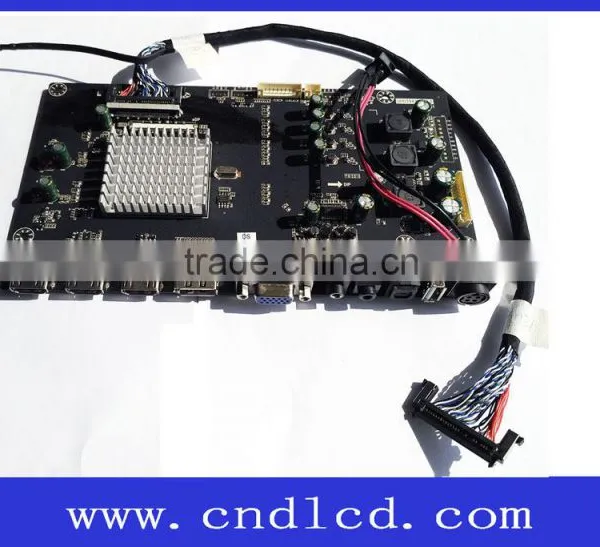

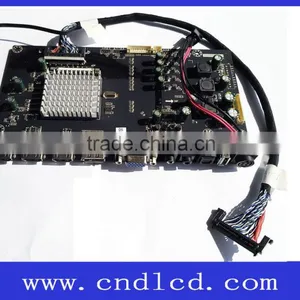

4K 3840 * 2160 LCD Controller Board with V by one Cable for LG V by one LCD Panel Lc420EQE pgm1

Product Name: 4K 3840 * 2160 LCD Controller Board with V by one Cable for LG V by one LCD Panel  Lc420EQE pgm1

Model No.:  UHD3941N

VGA+3HDMI+2 DP+USB(Software Upgrading)
4K x 2K/QHD144HZ
FPS/RTS With Game Function + Special Effects
FREE SYNC
PIP PBP POP

4K* 2K LCD Monitor Controller Driver Board General Description:

• Adoption of 4K 4096*2160@60Hz 2K UHD(Ultra High Definition) single chip solution,
• With optional screen interfaces V by 1, and DP.
• It is mainly used for UHD Display, Security Monitor system, Medical system, Commercial Advertising Display.
• Inputs: DPx2, HDMIx3, VGAx1, USBx1(for Software upgrading only)
• Compatible with External Power Supply +24v, and Built-in Large Power Supply (STB/+5VS/+5V/+12V)
• HDMI 2.0, Compatible with MHL3.0
• DP V1.2A
• VGA Input Max Support UXGAVGA@75Hz;
• Stereo Earphone input x1, and Stereo Earphone output x1

One Year Quality Warranty;

Provide 1‰ free spares with all goods;

Flexible Software to meet any custom request;

Q: Who we are?  what's our Brand?

A: We are CND Electronic Technology (ShenZhen) Co., Ltd.

 is our registered Brand.

Q:  Where are you located? How can I get there?

A:  Our office is in Shekou Nanshan Shen Zhen, very close to ShenZhen Bay.  it takes just 0.5h from HK to ShenZhen Bay.

Q:  What's delivery time? what's the shipping methord?

A:   3 days for some items in stock; and 15 days if out of stock, shipment via sea or air as customer requested.

Q: What's our core product and services?

A: AD/ AV Board, LCD / LED TV main controller driver board Solution, LCD Monitor main Driver Controller Solutions

Q:  What are our product applied in, and who is our Customer?

• Touch-Screen ATM Display of BOC (Bank of China), CBC (Contruction Bank of China), ABC, etc
• Mobile-TV of High-speed Railway Train for CRRC, and for subway train;
• Monitors of industrial control, for instance Security-montoring
• Monitors of some Famous Chinese Brand, for example HKC, AOC, ViewSonic, etc.

Q: What are our capability and advantages?

• CND is the only AD board solution company whose 2K board have been sold more than 100K.
• CND is the first company developed UHD 4K board solutions.
• CND is the first one who have passed Freesync Cetification.
• CND is the first one developed Type-C 4K *2K board.
• Integrated PQ services, including GAMMA, OD, AdobeRGB 100%, free sync dynamic OD, FPS/RTS precise color...
• Integrated Customization sevices from OSD/LOGO, PC OSD Menu, Uart extension, IR extension
