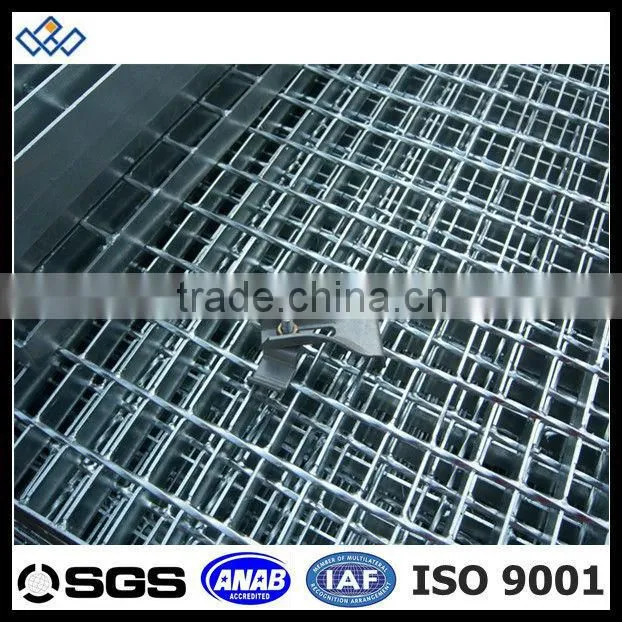

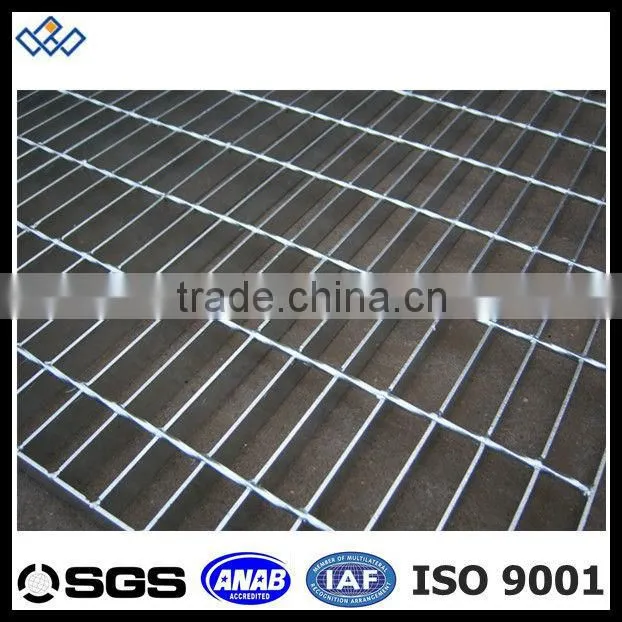

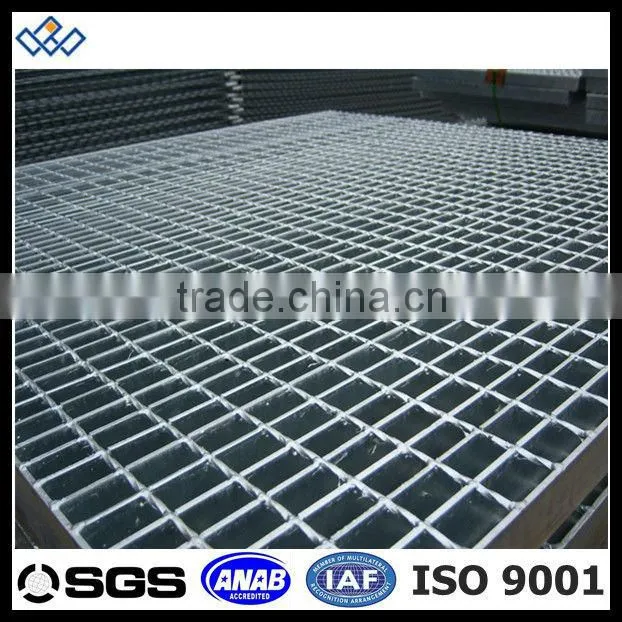

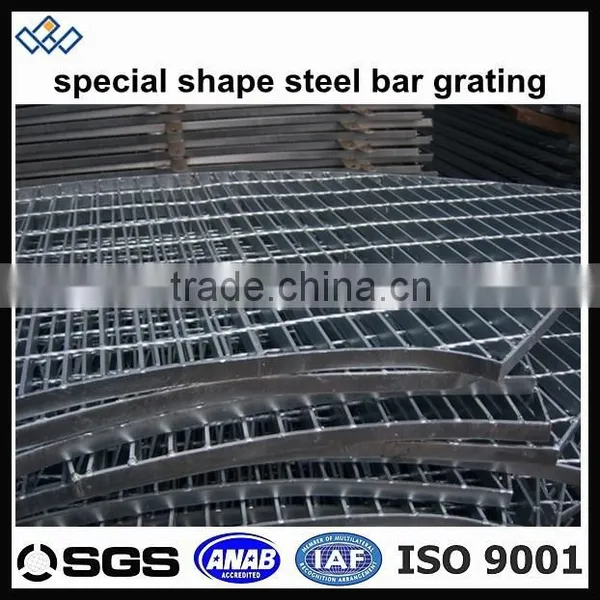

Special Shape Steel Grating

US$ 5 - 45.6 MOQ: 1 Square Meter

Key Specifications

Place of Origin:

Hebei, China

Brand Name:

Model Number:

325/30/100G

Hebei Jiuwang Metal Wire Mesh Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

tianjin

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hebei, China

Brand Name JW

Model Number 325/30/100G

Material Steel

32x5 special shape steel grating Specification:

1). 32x5 steel grating Steel grating bearing bar:35x5,32x5,32x4.5,32x3,30x5,30x3,25x5,25x3,etc.

2). special shape steel grating Steel grating cross bar diameter:6mm,8mm

3). 32x5 special shape steel grating Type for casting:By pressure welded,pressure locked

4). 32x5 special shape steel grating surface treatment:By electro-galvanized coated,hot dipped galvanized coated, stainless steel, untreated

5). 32x5 special shape steel grating Raw material:Iron or stainless steel

6). 32x5 special shape steel grating Material model:Q235,Q195,SS304,ss316,etc.

7). 32x5 special shape steel grating Weight:depends on the exact type

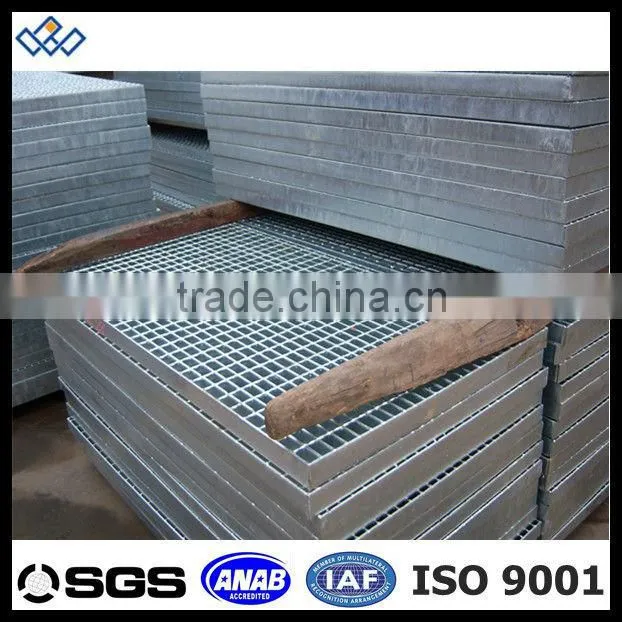

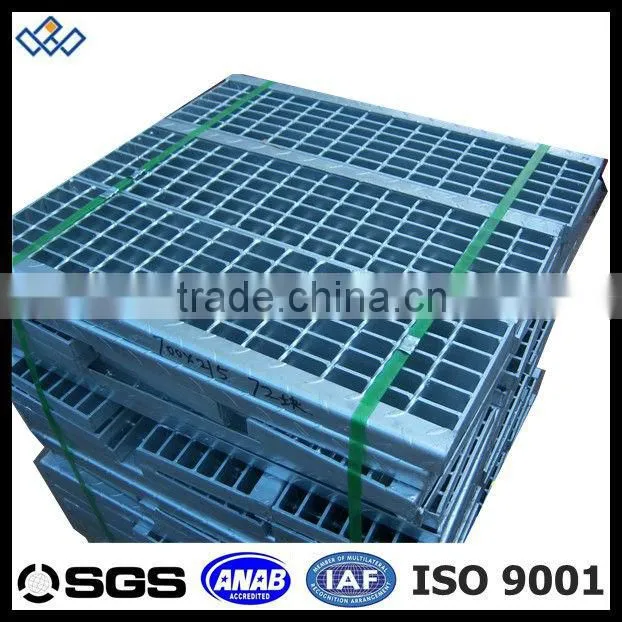

8). 32x5 special shape steel grating Package:safety package or naked

9). 32x5 special shape steel grating Payment term:100% T/T ,or 30% T/T deposit,and also L/C is acceptable

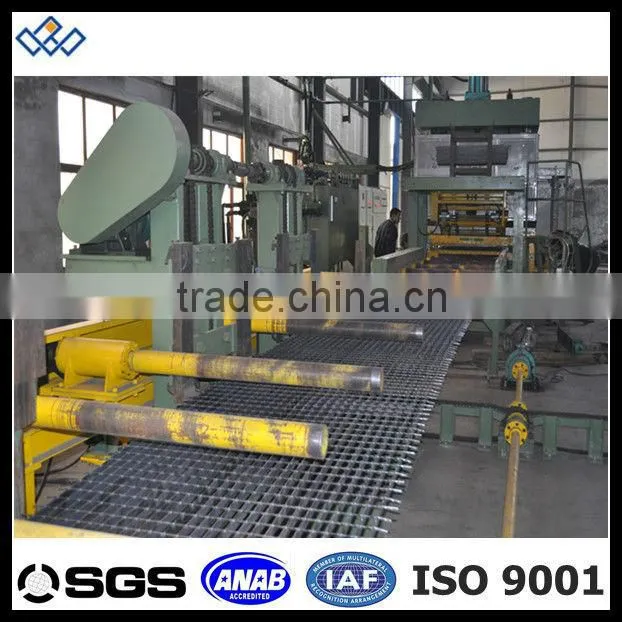

10).Our 32x5 special shape steel grating machines number:30,about 4 big machines

11).Our daily supply ability:500 to 1000 square meters

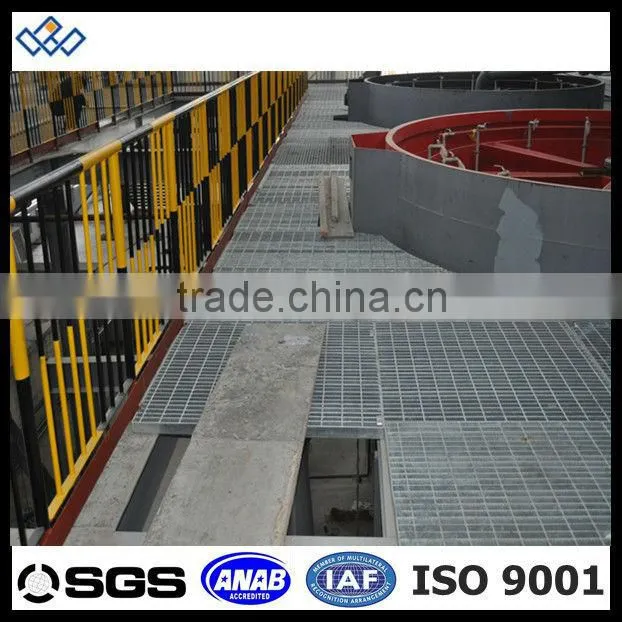

12).Used as platform,trench cover,building,transportations and so on.

13).ISO 9001 certificate

Common sizes of steel grating:

Item No.	Bearing Bar Pitch	Cross Bar Pitch	Specification of bearing bar load width× thickness
Item No.	Bearing Bar Pitch	Cross Bar Pitch	20×3	25×3	32×3	40×3	20×5	25×5
1	30	100	G203/30/100	G253/30/100	G323/30/100	G403/30/100	G205/30/100	G255/30/100
1	30	50	G203/30/50	G253/30/50	G323/30/50	G403/30/50	G205/30/50	G255/30/50
2	40	100	G203/40/100	G253/40/100	G323/40/100	G403/40/100	G205/40/100	G255/40/100
2	40	50	G203/40/50	G253/40/50	G323/40/50	G403/40/50	G205/40/50	G255/40/50
3	60	50		G253/60/50	G253/60/50	G403/60/50	G205/60/50	G255/60/50
Item No.	Bearing Bar Pitch	Cross Bar Pitch	Specification of bearing bar load width× thickness
Item No.	Bearing Bar Pitch	Cross Bar Pitch	32×5	40×5	45×5	50×5	55×5	60×5
1	30	100	G325/30/100	G405/30/100	G455/30/100	G505/30/100	G555/30/100	G605/30/100
1	30	50	G325/30/50	G405/30/50	G455/30/50	G505/30/50	G555/30/50	G605/30/50
2	40	100	G325/40/100	G405/40/100	G455/40/100	G505/40/100	G555/40/100	G605/40/100
2	40	50	G325/40/50	G405/40/50	G455/40/50	G505/40/50	G555/40/50	G605/40/50
3	60	50	G325/60/50	G405/60/50	G455/60/50	G505/60/50	G555/60/50	G605/60/50
