Specifications
1circle steel grating2. tenstile &corrosion
3.beautiful surface
4.hot dipped galvanized
fan steel grating --
fan steel grating

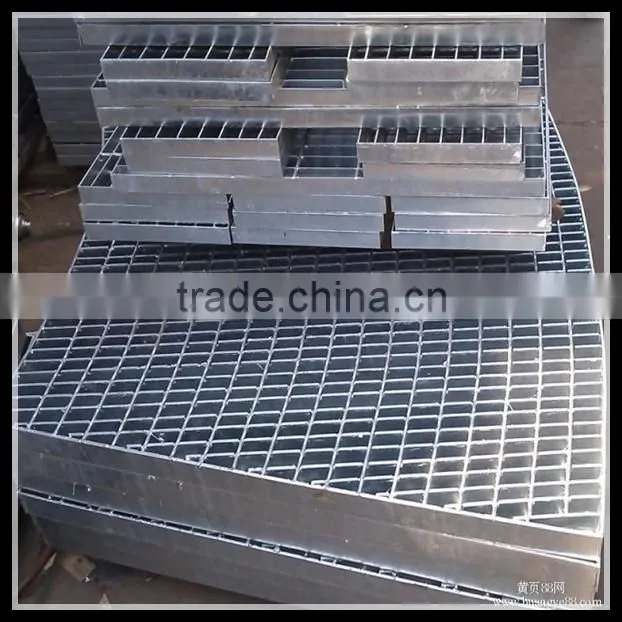

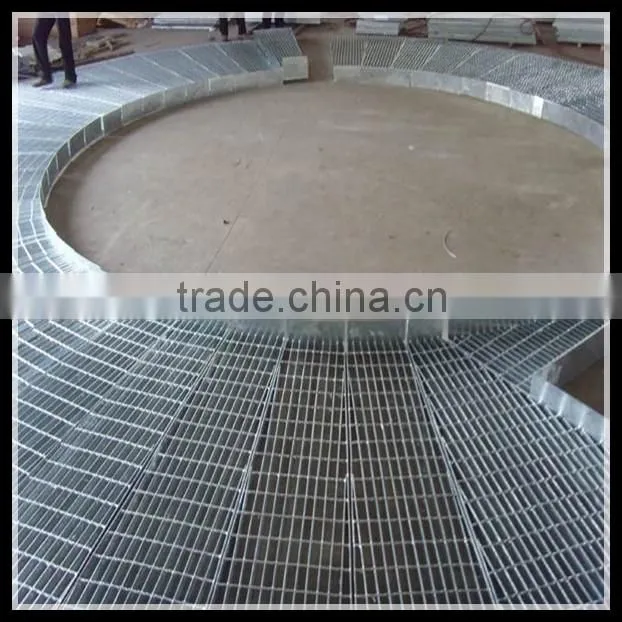

fan steel grating is to produce a variety of irregular shapes based on actual customer demand steel grating, mainly cutting angle, cutting holes, cut arcs, sectors, so as to avoid further cutting the goods to the secondary site, thereby make more rapid construction and installation, with simple, but also to avoid damaging the scene cut galvanized layer. Shaped steel grating is relatively rectangular grating purposes.
Profiled steel grating manufacturing method:
1, there are two machines produce pressure welding and manual: Machine Welding: Resistance welding is automated using 200 tons of hydraulic pressure welding robot automatically placed on the flat bar evenly through strong welding power and hydraulic pressure bonding into the flat steel bar, which can be solder rugged, high stability and strength of high quality steel grating products,
2, handmade steel grating is the first punch in the flat, and then the bar into the hole in welding, bar and flat voids exist, but can each contact points for welding, to achieve flat and equivalent to melt steel twist link, so will be more firmly welded strength will be improved, but not as good as the pressure aesthetic appearance of welding.

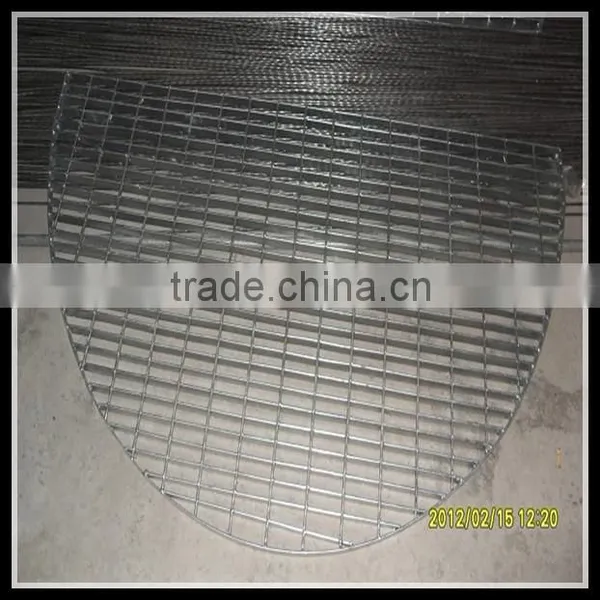

Features are: assembly is circular, trapezoidal, semi-circular, fan-shaped; firmly welded mesh to have a high load, the structure is light, easy loading and other characteristics; appearance, durable. Can be customized according to user requirements, customers can design and installation.
Profiled Steel Grating Application: alloy, building materials, power plants, boilers. Shipbuilding. Petrochemical, chemical and general industrial plants, municipal construction and other industries, with air and light, non-slip, bearing capacity is strong, beautiful and durable, easy to clean, easy to install and so on. Steel grating has been widely used in all walks of life at home and abroad, mainly used for industrial platforms, ladders pedal, railings, access flooring, railway bridge side road, aerial tower platform, gutter covers, manhole covers, road grille, three-dimensional parking, offices, schools, factories, enterprises, stadiums, garden villas fences, can also be used, balcony guardrail, highway, railway fence Bed outer windows.
Profiled steel grating specifications G355/30/100, G355/30/50, G353/50/50, G325/30/100, G404/30/100, can also be customized according to customer requirements.
