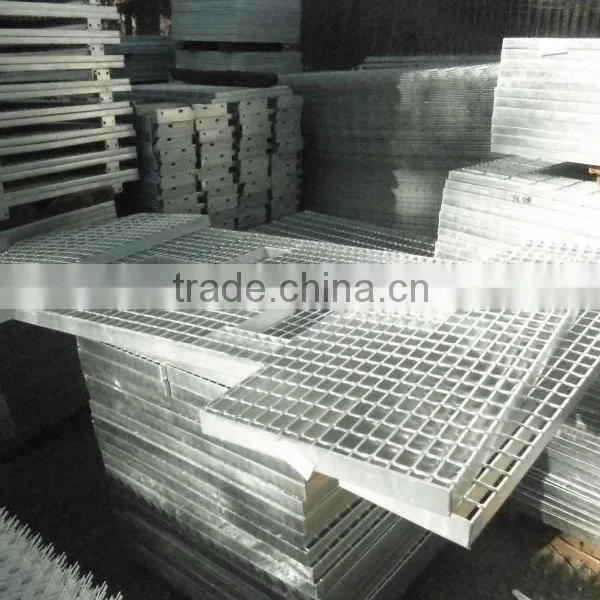

Help CenterSpecial Shaped Steel BAR Grating
Related Products
-
Special-shape Galvanized Steel GratingUS$ 2 - 25MOQ: 100 Square Meters -
Irregular Shape Steel Grating ISO 9001 WITH 20years FactoryUS$ 10 - 30MOQ: 10 Square Meters
-
Circle Steel Grating With Hole ISO 9001 WITH 20years FactoryUS$ 10 - 30MOQ: 10 Square Meters
-
Rectangle Steel Grating ISO 9001 WITH 20years FactoryUS$ 10 - 30MOQ: 10 Square Meters
-
Diamond Shape Grating ISO 9001 WITH 20years FactoryUS$ 10 - 30MOQ: 10 Square Meters
Specifications
We can manufacture steel grating to any length and width to meet your specifications.and factory is ISO 9001:2000 accreditedserrated steel grating informations:
1.aterial: Mild (low carbon) steel (CN: Q235, US: A36, UK: 43A) or stainless steel
2.urface treatment:galvanized {CN: GB/T13912, US: ASTM (A123), UK: BS729} ,painted,untreated
3.tyle:serrated,serrated-I shape
4.width and length are all on request.
5.ertification: ISO9001:2008,CE
6.haracteristics:light weight, high bearing capacity, safe , skid-proof, easily fixed and dismantled, economical ,long life and durable, ventilated and penetration of light, easily to be cleaned, beautiful in appearance.
7.pplication:Widely used in electricity, petrochemical, chemical industry, metallurgy, machines, modeling, port, marine engineering, construction, papermaking, medicine, textile, well cover, suspended ceiling, ventilation and penetration of light, etc
8.ackaging Detail: pallet or according to the customers' requirements
| Specifications of steel gratings | ||
| No | Item | Description |
| 1 | Bearing bar | 20x5, 25x3, 25x4, 25x5, 30x3, 30x4, 30x5, 32x3, 32x5, 40x5, 50…75x8mm, etc. |
| 2 | Bearing bar pitch | 25, 30, 30.16, 32.5, 34.3, 40, 50, 60, 62, 65mm, etc. |
| 3 | Cross bar | 5x5, 6x6, 8x8mm (twisted bar or round bar) |
| 4 | Cross bar pitch | 40, 50, 60, 65, 76, 100, 101.6, 120, 130mm or as customers’ requirement. |
| 5 | Surface treatment | Untreated, Hot dip galvanized, Cold dip galvanized, Painted, Powder coated, or as customers’ requirement. |
| 6 | Flat bar type | Plain, Serrated (tooth-like), I bar (I section) |
| 7 | Material standard | Low carbon steel (CN: Q235, US: A36, UK: 43A) |
| 8 | Galvanization standard | CN: GB/T13912, US: ASTM (A123), UK: BS729 |
| 9 | Steel grating standards | A. China: YB/T4001-1998 |
| B. USA: ANSI/NAAMM (MBG 531-88) | ||
| C. UK: BS4592-1987 | ||
| D. Australia: AS1657-1988 | ||
