Cast Iron Steel Grats for Trees 20year Professional Manufacturer

Name: Cast Iron Steel Grats for Trees 20year Professional Manufacturer
Brand: JIUWANG
SKU: 134028835

Cast Iron Steel Grats for Trees 20year Professional Manufacturer thumbnail-1

Cast Iron Steel Grats for Trees 20year Professional Manufacturer photo-1

US$ 10 - 30 MOQ: 10 Square Meters

Key Specifications

Get Latest Price

Place of Origin:

Hebei, China

Brand Name:

JIUWANG

Model Number:

19-W-4; 15-W-2,12.5/25/30/32.5/35/40/50mm.etc

Contact Supplier Request Quote Chat Now

Hebei Jiuwang Metal Wire Mesh Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

tianjin

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hebei, China

Brand Name JIUWANG

Model Number 19-W-4; 15-W-2,12.5/25/30/32.5/35/40/50mm.etc

Material Other, Steel, steel, ss

Specifications

1Cast iron steel Grats for trees
2. tenstile &corrosion
3.beautiful surface
4.hot dipped galvanized
5.ISO9001

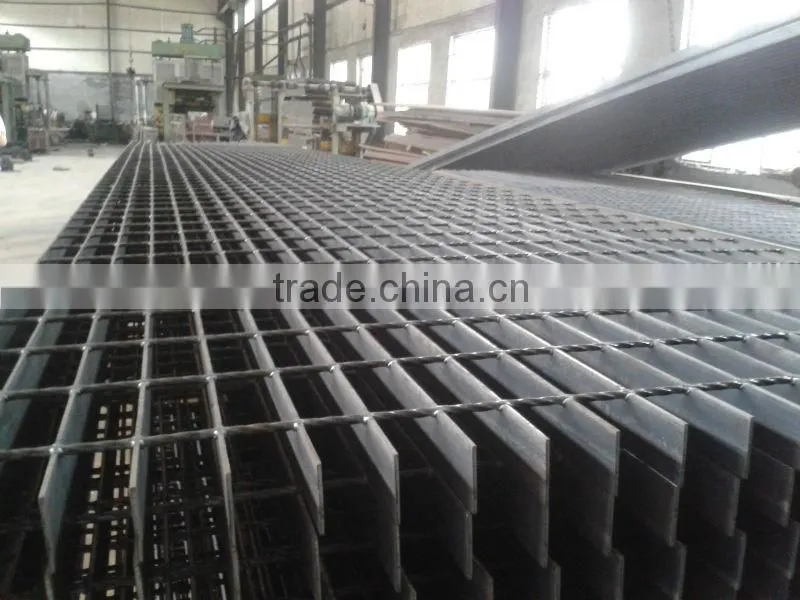

1.what is steel grating ?( Cast iron steel Grats for trees ) -- Steel grating is made by bearing bar and cross bar according to the flat-steel weft arrangement, in high-pressure spacing on resistance welder welded by cutting, incision, opening, overlock process such as processing and into customer requirements finished products.

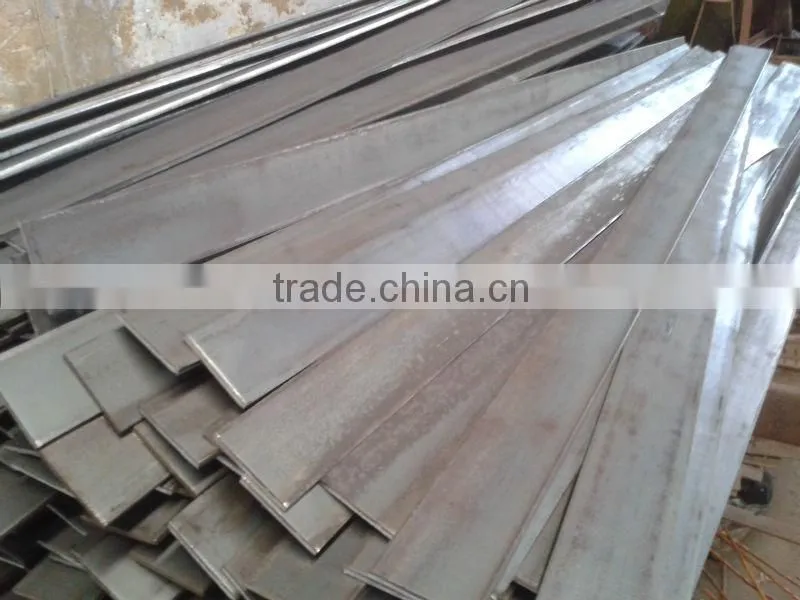

Bearing bar type below

2. Cast iron steel Grats for trees specification

Bearing bar pitch	Cross bar pitch	load steel size ( Width ×Thickness)
Bearing bar pitch	Cross bar pitch	20×3	25×3	32×3	40×3	20×5	25×5
30	100	G203/30/100	G253/30/100	G323/30/100	G403/30/100	G205/30/100	G255/30/100
30	50	G203/30/50	G253/30/50	G323/30/50	G403/30/50	G205/30/50	G255/30/50
40	100	G203/40/100	G253/40/100	G323/40/100	G403/40/100	G205/40/100	G255/40/100
40	50	G203/40/50	G253/40/50	G323/40/50	G403/40/50	G205/40/50	G255/40/50
60	50	-	G253/60/50	G253/60/50	G403/60/50	G205/60/50	G255/60/50
Bearing bar pitch	Cross bar pitch	load steel size (Width ×Thickness)
Bearing bar pitch	Cross bar pitch	32×5	40×5	45×5	50×5	55×5	60×5
30	100	G325/30/100	G405/30/100	G455/30/100	G505/30/100	G555/30/100	G605/30/100
30	50	G325/30/50	G405/30/50	G455/30/50	G505/30/50	G555/30/50	G605/30/50
40	100	G325/40/100	G405/40/100	G455/40/100	G505/40/100	G555/40/100	G605/40/100
40	50	G325/40/50	G405/40/50	G455/40/50	G505/40/50	G555/40/50	G605/40/50
60	50	G325/60/50	G405/60/50	G455/60/50	G505/60/50	G555/60/50	G605/60/50

3. Cast iron steel Grats for trees details

Product Details
No.	Terms	Description
1	Material	Low carbon,middle carbon,stainless steel
2.	Material standard	GB700-88,ASTM(A36),BS4360(43A),AS3679
3.	Bearing bar size	203,205,253,255,323,325,353,355, 403,405,455,503,505,555,605,655mm etc,
4.	Bearing bar pitch	15,20,25,30,33,35,38,40,50,60,80,90mm
5.	Cross bar pitch	24-200mm
6.	Surface treatment	Hot dipped galvanized,painted,self-color,
7.	Grating standard	YB/T4001.1-2007,ANSI/NAAMM(MBG531-88), BS4592-1987,AS1657-1985
8.	Bearing bar type	F,I ,S,IS type
9.	Application	Floor walkway,industrial platform,stair tread,metal ceiling,trench cover,barrier fencing
10.	Feature	Fine appearance,anti-corrosive,simple installation,light weight,high load,anti-skid, prevent dirt deposition,ventilation,anti-explosion
11.	Payment terms	TT,L/C
12.	Package	Pallets in containers packed by steel strap and worthy sea shipping, or according to the customers' requirements
13.	Product capacity	10days for a 20”

Steel Grating Standard
	Steel Grating Standard	Steel Standard	Galvanizing Standard
China Standard	YB/T 4001.1-2007	GB700-88	GB/T13912-2002
USA Standard	ANSI/NAAMM (MBG531)	ASTM (A36)	ASTM (A123)
U.K. Standard	BS4592	BS4360 (43A)	BS729
Australia Standard	AS1657	AS3679	AS1650
Deutsche Standard	DIN24537	DIN17100-80	DIN50976
