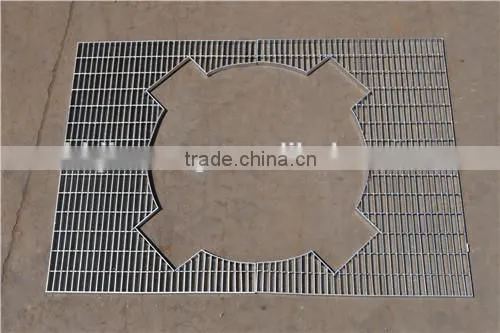

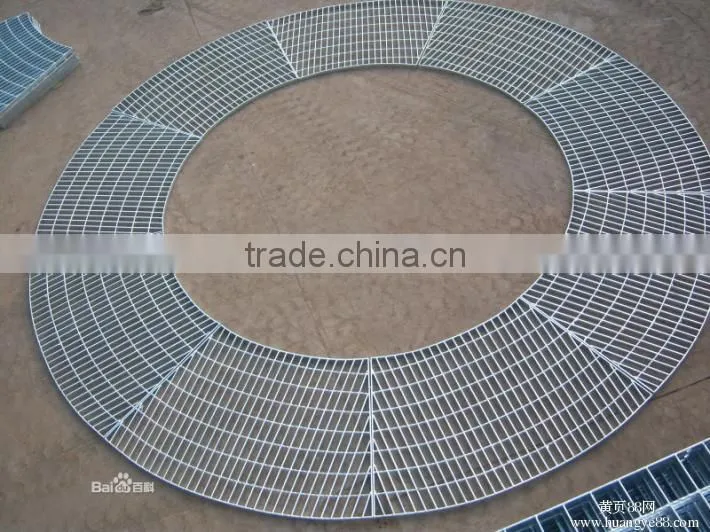

Help CenterHebei Jiuwang Tree Grating 20year Professional Manufacturer
Related Products
-
Galvanized Steel Grid Floor.galvanized Steel Grid Walkway 20years Professional ManufacturerUS$ 3 - 10MOQ: 10 Square Meters -
Anping Hebei Jiuwang Galvanized Steel Grid Floor.galvanized Steel Grid Walkway 20years Professional ManufacturerUS$ 3 - 10MOQ: 10 Square Meters
-
Sidewalk Grates for Sale 20years Professional ManufacturerUS$ 3 - 10MOQ: 10 Square Meters
-
Slip Resistance Steel Grating 20years Professional ManufacturerUS$ 3 - 10MOQ: 10 Square Meters
-
Skid Resistance Steel Grating 20years Professional ManufacturerUS$ 3 - 10MOQ: 10 Square Meters
Specifications
1.tree grating2. tenstile &corrosion
3.beautiful surface
4.hot dipped galvanized
5.ISO9001
1.what is steel grating ?( tree grating) -- Steel grating is made by bearing bar and cross bar according to the flat-steel weft arrangement, in high-pressure spacing on resistance welder welded by cutting, incision, opening, overlock process such as processing and into customer requirements finished products.
Bearing bar type below
2.manufacturer process
3. tree grating specification
Bearing bar pitch |
Cross bar pitch |
load steel size ( Width ×Thickness) |
|||||
20×3 |
25×3 |
32×3 |
40×3 |
20×5 |
25×5 |
||
30 |
100 |
G203/30/100 |
G253/30/100 |
G323/30/100 |
G403/30/100 |
G205/30/100 |
G255/30/100 |
50 |
G203/30/50 |
G253/30/50 |
G323/30/50 |
G403/30/50 |
G205/30/50 |
G255/30/50 |
|
40 |
100 |
G203/40/100 |
G253/40/100 |
G323/40/100 |
G403/40/100 |
G205/40/100 |
G255/40/100 |
50 |
G203/40/50 |
G253/40/50 |
G323/40/50 |
G403/40/50 |
G205/40/50 |
G255/40/50 |
|
60 |
50 |
- |
G253/60/50 |
G253/60/50 |
G403/60/50 |
G205/60/50 |
G255/60/50 |
Bearing bar pitch |
Cross bar pitch |
load steel size (Width ×Thickness) |
|||||
32×5 |
40×5 |
45×5 |
50×5 |
55×5 |
60×5 |
||
30 |
100 |
G325/30/100 |
G405/30/100 |
G455/30/100 |
G505/30/100 |
G555/30/100 |
G605/30/100 |
50 |
G325/30/50 |
G405/30/50 |
G455/30/50 |
G505/30/50 |
G555/30/50 |
G605/30/50 |
|
40 |
100 |
G325/40/100 |
G405/40/100 |
G455/40/100 |
G505/40/100 |
G555/40/100 |
G605/40/100 |
50 |
G325/40/50 |
G405/40/50 |
G455/40/50 |
G505/40/50 |
G555/40/50 |
G605/40/50 |
|
60 |
50 |
G325/60/50 |
G405/60/50 |
G455/60/50 |
G505/60/50 |
G555/60/50 |
G605/60/50 |
3.
Product Details | ||
No. |
Terms |
Description |
1 |
Material |
Low carbon,middle carbon,stainless steel |
2. |
Material standard |
GB700-88,ASTM(A36),BS4360(43A),AS3679 |
3. |
Bearing bar size |
20*3,20*5,25*3,25*5,32*3,32*5,35*3,35*5, 40*3,40*5,45*5,50*3,50*5,55*5,60*5,65*5mm etc, |
4. |
Bearing bar pitch |
15,20,25,30,33,35,38,40,50,60,80,90mm |
5. |
Cross bar pitch |
24-200mm |
6. |
Surface treatment |
Hot dipped galvanized,painted,self-color, |
7. |
Grating standard |
YB/T4001.1-2007,ANSI/NAAMM(MBG531-88), BS4592-1987,AS1657-1985 |
8. |
Bearing bar type |
F,I ,S,IS type |
9. |
Application |
Floor walkway,industrial platform,stair tread,metal ceiling,trench cover,barrier fencing |
10. |
Feature |
Fine appearance,anti-corrosive,simple installation,light weight,high load,anti-skid, prevent dirt deposition,ventilation,anti-explosion |
11. |
Payment terms |
TT,L/C |
12. |
Package |
Pallets in containers packed by steel strap and worthy sea shipping, or according to the customers' requirements |
13. |
Product capacity |
10days for a 20” |
Steel Grating Standard | |||
|
Steel Grating Standard |
Steel Standard |
Galvanizing Standard |
China Standard |
YB/T 4001.1-2007 |
GB700-88 |
GB/T13912-2002 |
USA Standard |
ANSI/NAAMM (MBG531) |
ASTM (A36) |
ASTM (A123) |
U.K. Standard |
BS4592 |
BS4360 (43A) |
BS729 |
Australia Standard |
AS1657 |
AS3679 |
AS1650 |
Deutsche Standard |
DIN24537 |
DIN17100-80 |
DIN50976 |
4.platform floor tree grating payment & delivery details
Package Safety package or naked
Delivery Within 20-30 days after receiving the deposit
Payment terms EXW: 100% T/T.
FOB: T/T, 30% deposit, 70% balance payment before shipping.
CIF: T/T, 30% deposit, 70% balance payment at the sight of copy of B/L.
L/C, Western Union
HS code 7308900000
Price validity Within 7 days

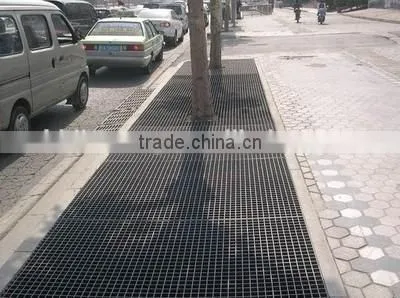

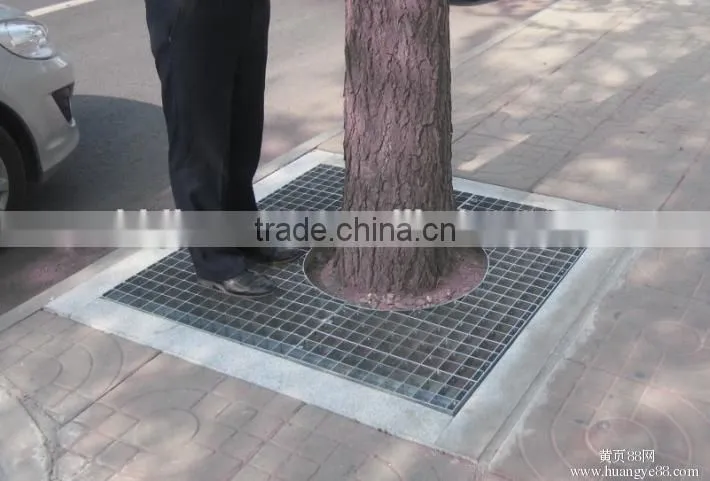

5.tree grating application
6.our company review
Hebei Jiuwang Metal Wire Mesh Co.,Ltd.(original Anping County Jintai Metal Mesh Co.,Ltd.).Established in 1992,our company is a manufacturer of large steel structure and steel gratings,integrating development,production and distribution.The company register capital is 10,080,000 Yuan,and take an area of 34,680 square meters.In 2003,we have got the ISO9001:2000 certification by BQR.
7.why choose us
1.Independent automatic steel grating product line with huge workshop and devices to ensure delivery time.
2. Over 20 years' experience in hot-dipped galvanized steel grating manufacture
3. Quality guarantee under the control of ISO9001 2000 quality system
4.Professional technology and design teams, chart as customers' requirements.
