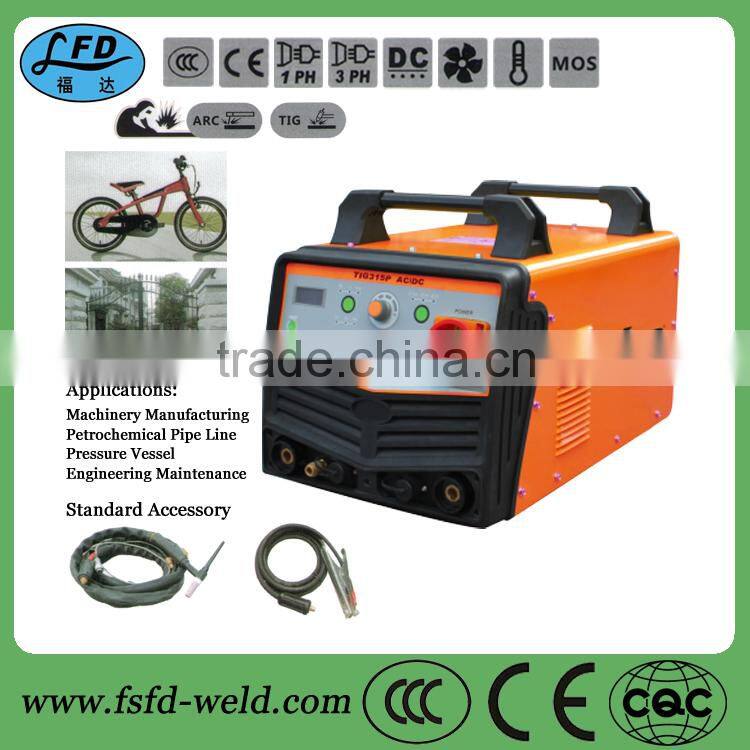

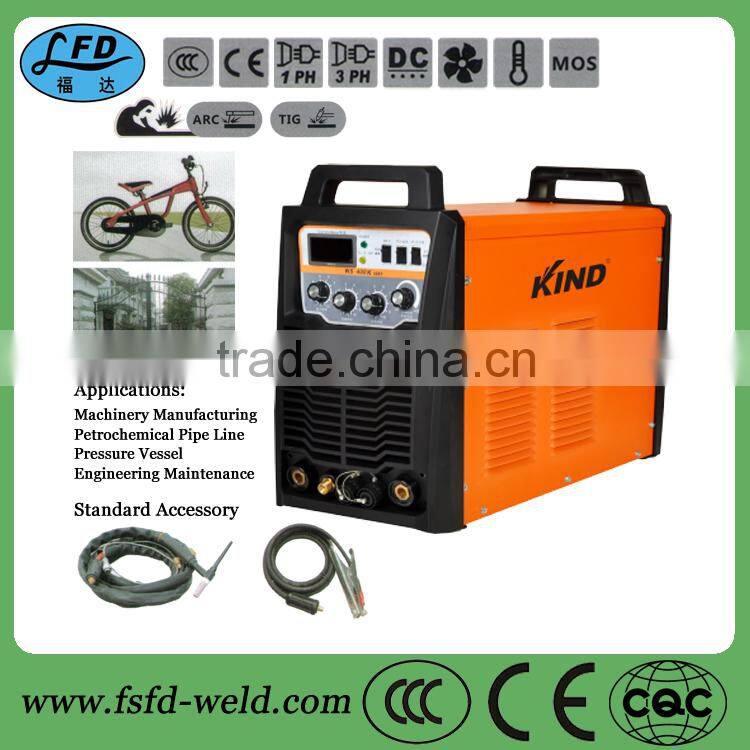

High frequency ac dc tig welding machine ac dc tig welder
Model |
TIG-200P AC/DC |
TIG-250P AC/DC |
TIG-315P AC/DC |
WS-400K |
Input |
220V |
380V |
380V |
380V |
Rated |
8.9KVA |
11KVA |
15.8KVA |
22KVA |
Output |
TIG:10-190A |
TIG:10-225A |
TIG:10-290A |
TIG:10-400A |
Output |
TIG:10.4-26V |
|||
Duty |
60% |
60% |
55% |
60% |
No-load |
62V |
40V |
45V |
60V |
Pulse Duty |
10-90% |
10-90% |
10-90% |
|
Pulse Current Base Value |
5-190A |
5-225A |
5-290A |
|
AC Frequency |
20-100Hz |
20-100Hz |
20-100Hz |
|
AC Clear Pulse Width |
-50-30% |
-50-30% |
-50-30% |
|
Arc Force |
0-60A |
|||
Post-flowe |
0-10S |
|||
Protection |
IP21S |
IP21S |
IP21S |
IP21S |
Insulation |
F |
F |
F |
F |
Cooling |
Air-cooling |
Air-cooling |
Air-cooling |
Air-cooling |
Dimensions |
630*380*400mm |
630*380*400mm |
630*380*400mm |
585*280*465mm |
1, Performance Characteristics
1), Dual inverter technology with convert efficiency to 85% and low no-load consumption.
2), Current-mode Pulse Width Modulator (PWM) controller and closed-loop control system, ensured machine's working stability.
3), Excellent square wave power supply with good quality. Short current zero-
crossing time to ensure stable arc;
4), Super capacity of oxide film removing, continuous adjustment of clean
width, nice weld bead;
5), Good current stiffness with soft arc, less noisy and easy wire feeding, nice
weld bead.
2, Display Mode: Digital tube
3, Materials Welding: Aluminum and aluminum alloy, Magnesium alloy,Carbon Steel, Stainless steel, Copper and Copper alloy etc
4, Application: Machinery manufacturing, pressure vessel, Petrochemical pipe line, engineering maintenance etc.
5, R&D Team and Quality Control
Our R&D center has a young and experienced R&D team. They are the industry's elite and the pioneer, the R&D department is responsible for new technology, new product research and development and industrial production follow-up.
Our company makes use of advanced production equipment and testing equipment following the ISO9001 quality assurance system, which is in strict accordance with the requirements of production to ensure product quality and reliability. The production process to implement the "three inspection" (self-inspection, mutual inspection, special inspection) procedures to ensure control of product quality. The manufactured products require the "three pass" (raw material into the plant pass, semi-finished product pass, finished off the factory pass) to ensure reaching the required quality; finished product storage, transportation and sales in the market were also included in the product quality management.
6, Our Services
1), We will be answer within 24 hours, welcome to contact with us if you have any problems. we warmly welcome to visit our company and looking forward to cooperating with you.
2), We can offer OEM or ODM service, according to customers requirements.
3), Unique and exclusive solution can be provided to our customers by our professional engineers.
7, Packaging & Shipping
4), Warranty: one year warranty, the Seller shall supply the free replacement spare parts (but NOT including the mould, wearing parts and the items of wrong using), and the delivery cost will bear on the buyer’s account.
8, Sales Markets
Foshan Fuyin Welding Equipment Co., Ltd is a professional manufacturing and developing company in the line of spot welding machine and Automatic devices of wire products series products. Our products are exported to South America, Mid East, Russia, Europe and countries around the world.
For more information, please feel free to contact us, your satisfaction is our top priority!
