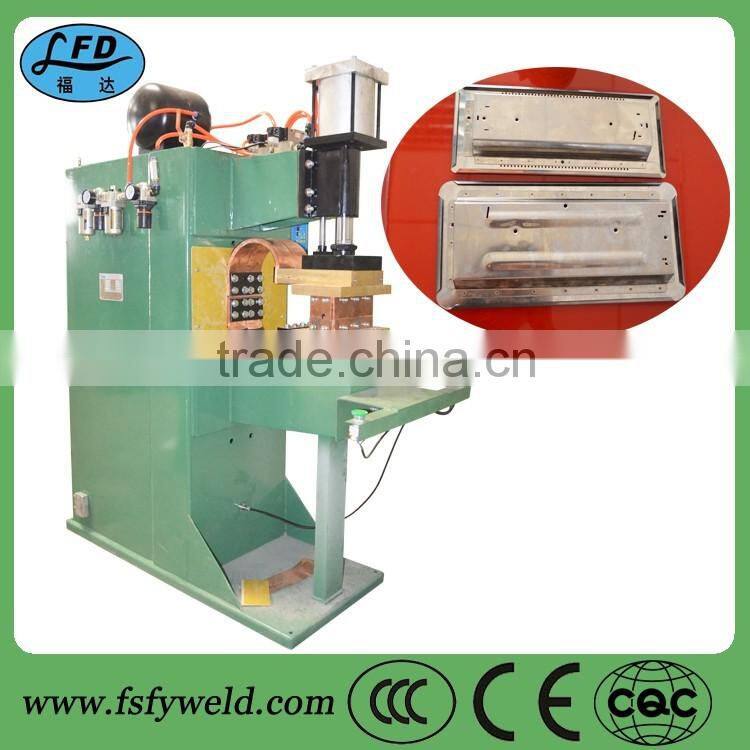

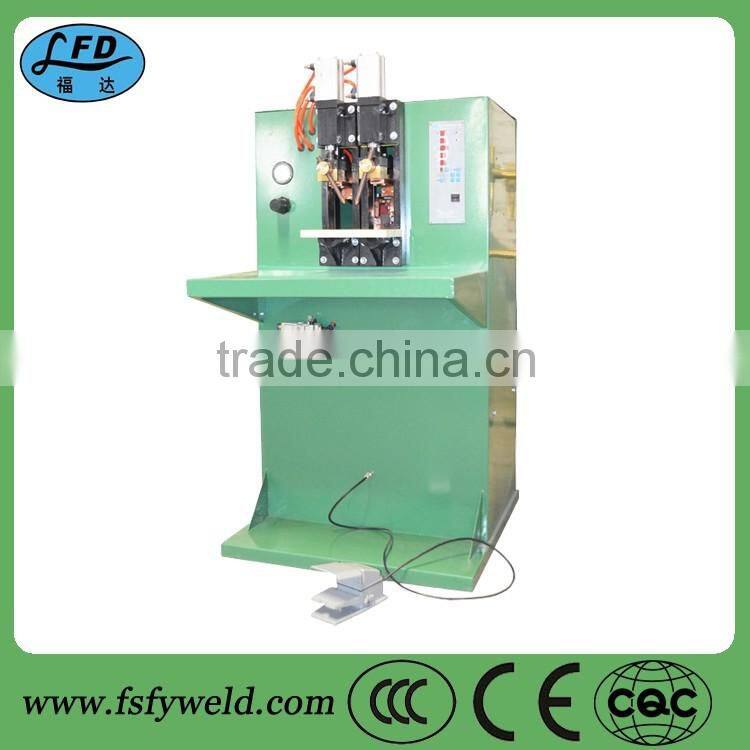

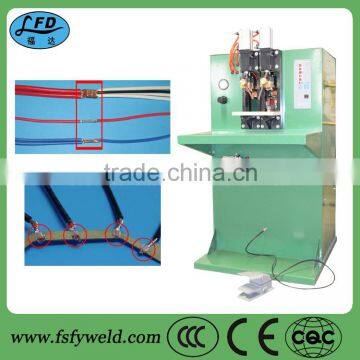

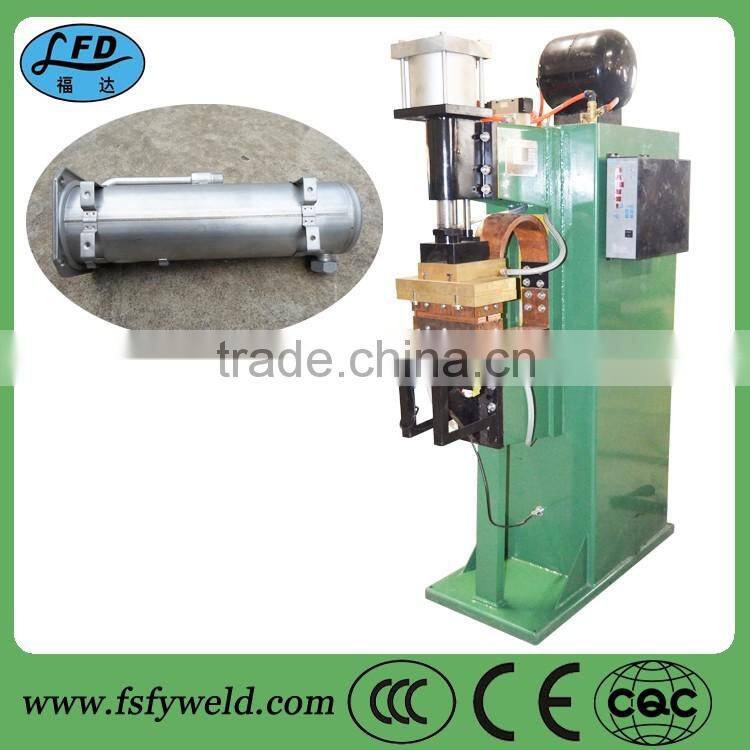

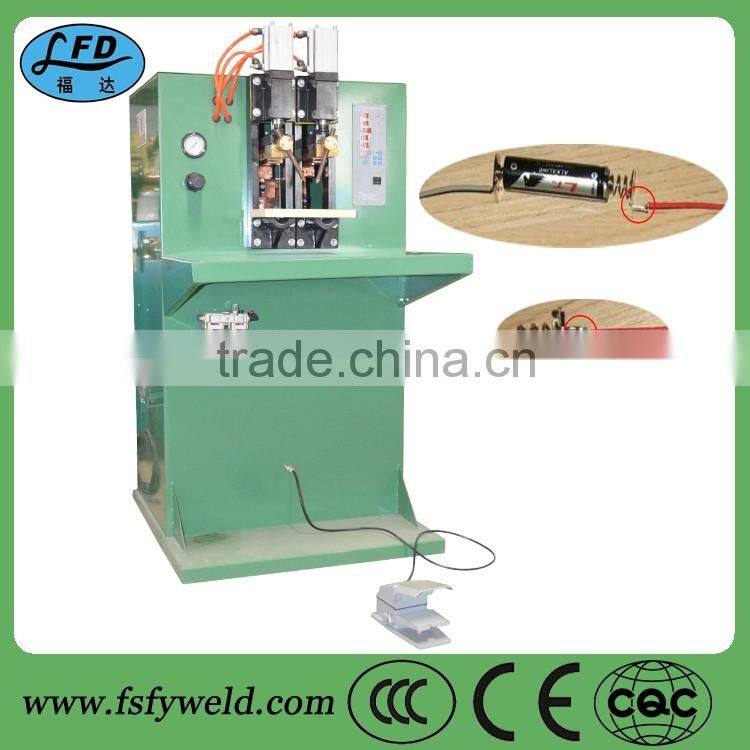

Spot welding machine(factury) Capacitor energy-storage metal spot weldingmachine

Definition of storage energy welding

Stored energy welding machine is also called the capacitor stored energy welding machine. to use the capacitor stored energy is the main working principle, when energy can make a small area of solder melting and the instantaneous discharge, capacitance stored energy welding machine welding time is three over one thousand of a second, and the welding time is not adjustment.

Performance Characteristics

1), Controller using single-chip microcomputer control system, it's simple to operation and maintenance, control is accurate and stable.
2), Software and hardware combination, synchronous control, high precision to ensure the quality of welding.
3), Adopt imported brand-name urgent charging and discharging capacitor, stable capacity, long service life.
4), Circuit with a quickly charge and discharge, welding current is stable, high frequency charge and discharge.
5), Panel is the digital display, simple operation, elegant appearance.
6), Be equipped with the voice buttons, to remind the operator operation is successful, to prevent wrong operation.

7), Adopts soft starting mode with full digital integrated circuit to control constant current, charging is more rapid and stable.

8), Unnecessary charging current limiting resistance, avoide to waste energy due to current limiting resistance give out heat and save power 40% than normal condenser type spot welder.

9), Adopt imported famous brand quick charging and discharging capacitor, stable volume and long life.

10), Digital charging voltage display, setting charging voltage that is more accurate, intuitive.

Application

It is specially suitable for welding stainless steel, copper, aluminum, alloy(nickel), tungsten and metal plate, wire that conduction of heat and electricity is very good and the welding between heterogeneous metal etc.
