DPAT Famous Micro Ball Bearing 1200 Self-aligning Ball Bearing Supplied on
US$ 2 - 5
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
DPAT
Bore Size:
10, 50
Outside Diameter:
30, 200
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Professional Precise Rubber Bearing Pad 2302 Ball Bearing Used CarsUS$ 2 - 5MOQ: 100 Pieces -
1210 1210 K Miniature Double Row Self-aligning Ball BearingUS$ 2 - 5MOQ: 100 Pieces
-
Double Row Self-aligning Ball Bearing 2307 Hot Sale and High Precision Self-aligning Ball BearingUS$ 2 - 5MOQ: 100 Pieces
-
Made in China Self-aligning Ball Bearing 1309 K TVH C3US$ 2 - 5MOQ: 100 Pieces
-
Authorized High Precision Quality Machinery Components Widely Used Self-aligning Ball Bearing 2302US$ 2 - 5MOQ: 100 Pieces
Brand Name
DPAT
Bore Size
10, 50
Outside Diameter
30, 200
Model Number
2307K
Precision Rating
P0 P5 P6
Seals Type
open
Number of Row
Double Row
Place of Origin
Zhejiang, China
DPAT famous micro ball bearing 1200 self-aligning ball bearing supplied on Alibaba
Product Description
Self aligning ball bearings
Double row self-aligning ball bearings have a sphere raceway in the outer ring and a double raceway in the inner ring. This feature give the bearings their self-aligning property, permitting angular misalignment of the shaft relative to the housing. They are therefore particularly suitable for applications where misalignment can arise from errors in mounting or from shaft deflection.
Double row self-aligning ball bearings are mainly used to carry radial loads and light axial loads, but cann't carry pure axial loads
| Model Number | 1205 1205K12061206K12071207K12081208K12091209K12101210K |
| Brand Name | DPAT |
| Structure | Self-aligning ball |
| Type | Ball |
| Seals Type | Open |
| Material | Ring Material Chrome Steel ,Carbon steel,Stainless steel |
| Cage material | steel , brass |
| Clearance | C0,C2,C3,C4,C5 |
| Vibration | Zv1,Zv2 and Zv3 |
| Precision Rating | P0,P6,P5 |
| Greese | As you requirement, such as SRL ,PS2, Alvania R12 and so on |
| Number of Row | Single Row |
| Guarantee | One year. |
| Application | Home appliances, low noise and high speed electric motors, |
| automotive components, pumps, machinery. | |
| Certifications | ISO 9001:2008, SASO,CE,PVOC |
| Package | Single box or according to buyers requirement . |
| Place of Origin | China (Mainland) |
| MOQ | 1 PCS |
| Service | (1) Prompt Delivery |
| (2) OEM | |
| (3) Good Service Offered | |
| (4) Buyer Label Offered | |
| Payment Term | TT or L/C or West Union |
| Port | Qingdao or Tanjing or Shanghai |
| Details | 1,Low price |
| 2.Low vibration | |
| 3.high rolling accuracy |

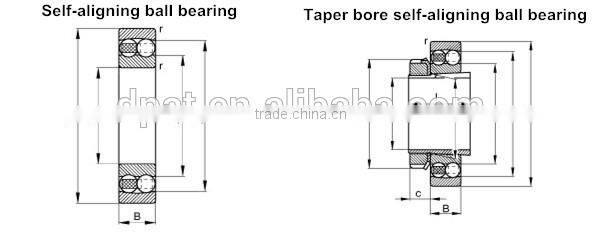

Specification
| Bearing Numbers | Boundary Dimension | Basic Load Ratings(KN) | Limited Speed(rpm) | Mass | |||||
| (mm) | (KG) | ||||||||
| d | D | B | rmin | Cr | Cor | Grease | Oil | Approx | |
| 2300 | 10 | 35 | 17 | 0.6 | 0.077 | 9.09 | 2.06 | 16000 | 19000 |
| 2301 | 12 | 37 | 17 | 1 | 0.082 | 10.62 | 2.6 | 14000 | 16000 |
| 2302 | 15 | 42 | 17 | 1 | 0.108 | 10.8 | 2.78 | 12000 | 14000 |
| 2303 | 17 | 47 | 19 | 1 | 0.15 | 12.96 | 3.41 | 10000 | 13000 |
| 2304 | 20 | 52 | 21 | 1.1 | 0.193 | 16.29 | 4.51 | 10000 | 11000 |
| 2304 K | 20 | 52 | 21 | 1.1 | 0.193 | 16.29 | 4.51 | 10000 | 11000 |
| 2305 | 25 | 62 | 24 | 1.1 | 0.319 | 21.96 | 6.34 | 8100 | 10000 |
| 2305 K | 25 | 62 | 24 | 1.1 | 0.319 | 21.96 | 6.34 | 8100 | 10000 |
| 2306 | 30 | 72 | 27 | 1.1 | 0.48 | 28.35 | 8.4 | 6800 | 8100 |
| 2306 K | 30 | 72 | 27 | 1.1 | 0.48 | 28.35 | 8.4 | 6800 | 8100 |
| 2307 | 35 | 80 | 31 | 1.5 | 0.642 | 35.55 | 10.85 | 6000 | 7000 |
| 2307 K | 35 | 80 | 31 | 1.5 | 0.642 | 35.55 | 10.85 | 6000 | 7000 |
| 2308 | 40 | 90 | 33 | 1.5 | 0.889 | 40.5 | 12.96 | 5300 | 6300 |
| 2308 K | 40 | 90 | 33 | 1.5 | 0.889 | 40.5 | 12.96 | 5300 | 6300 |
| 2309 | 45 | 100 | 36 | 1.5 | 1.2 | 48.6 | 16.03 | 4800 | 5600 |
| 2309 K | 45 | 100 | 36 | 1.5 | 1.2 | 48.6 | 16.03 | 4800 | 5600 |
| 2310 | 50 | 110 | 40 | 2 | 1.58 | 58.05 | 19.39 | 4400 | 5100 |
| 2310 K | 50 | 110 | 40 | 2 | 1.58 | 58.05 | 19.39 | 4400 | 5100 |
| 2311 | 55 | 120 | 43 | 2 | 2.03 | 67.95 | 23.04 | 4000 | 4700 |
| 2311 K | 55 | 120 | 43 | 2 | 2.03 | 67.95 | 23.04 | 4000 | 4700 |
| 2312 | 60 | 130 | 46 | 2.1 | 2.57 | 78.3 | 27.07 | 3600 | 4300 |
| 2312 K | 60 | 130 | 46 | 2.1 | 2.57 | 78.3 | 27.07 | 3600 | 4300 |
| 2313 | 65 | 140 | 18 | 2.1 | 3.2 | 86.4 | 31.2 | 3400 | 4000 |
| 2313 K | 65 | 140 | 18 | 2.1 | 3.2 | 86.4 | 31.2 | 3400 | 4000 |
| 2314 | 70 | 150 | 51 | 2.1 | 3.9 | 98.1 | 36 | 3100 | 3700 |
| 2314 K | 70 | 150 | 51 | 2.1 | 3.9 | 98.1 | 36 | 3100 | 3700 |
| 2315 | 75 | 160 | 55 | 2.1 | 4.77 | 110.7 | 41.28 | 2900 | 3400 |
| 2315 K | 75 | 160 | 55 | 2.1 | 4.77 | 110.7 | 41.28 | 2900 | 3400 |
| 2316 | 80 | 170 | 58 | 2.1 | 5.54 | 115.2 | 43.2 | 2800 | 3200 |
| 2316 K | 80 | 170 | 58 | 2.1 | 5.54 | 115.2 | 43.2 | 2800 | 3200 |
| 2317 | 85 | 180 | 60 | 3 | 6.56 | 126 | 49.44 | 2600 | 3000 |
| 2317 K | 85 | 180 | 60 | 3 | 6.56 | 126 | 49.44 | 2600 | 3000 |
| 2318 | 90 | 190 | 64 | 3 | 7.76 | 136.8 | 55.2 | 2500 | 2900 |
| 2318 K | 90 | 190 | 64 | 3 | 7.76 | 136.8 | 55.2 | 2500 | 2900 |
| 2320 | 100 | 215 | 73 | 3 | 11.6 | 187 | 79 | 2300 | 2700 |
| 2320 K | 100 | 215 | 73 | 3 | 11.6 | 187 | 79 | 2300 | 2700 |
| 2321 | 105 | 225 | 77 | 3 | 13.2 | 205 | 87 | 2200 | 2600 |
| 2322 | 110 | 240 | 80 | 3 | 15.8 | 217 | 94.5 | 2100 | 2400 |
| 2322 K | 110 | 240 | 80 | 3 | 15.8 | 217 | 94.5 | 2100 | 2400 |
