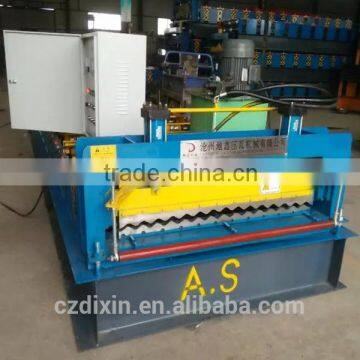

Corrugated iron roof sheet making machine/corrugated sheet metal roof making machine
| 1 | NAME | roof or wall steel panel |
| 2 | APPLICATION | roof and wall,especially for factory wrorkroom,warehouse, steel construction |
| 3 | ITEM NO. | 65-13-850 steel panel |
| 4 | THICKNESS | 0.3-0.8mm |
| 5 | COVER WIDTH | 850mm |
| 6 | COIL WIDTH | 1000mm |
| 7 | WAVE HEIGHT | 13mm |
| 8 | WAVE LENGTH | 65mm |
| 9 | COLOR | red or blue |
| 10 | ADVANTAGE |
easy to install than wood or brick more space and less cost |
850/988 aluminium corrugated sheet panel making machine
1 aluminium sheet
2 corrugated panel
3 automatic
4 easy
THE MACHINE

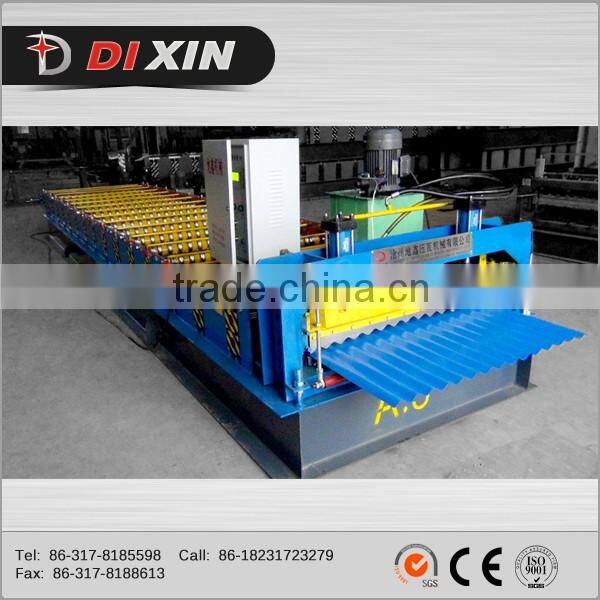

What produce it? The following good machine- DIXIN aluminium roofing sheet making machine

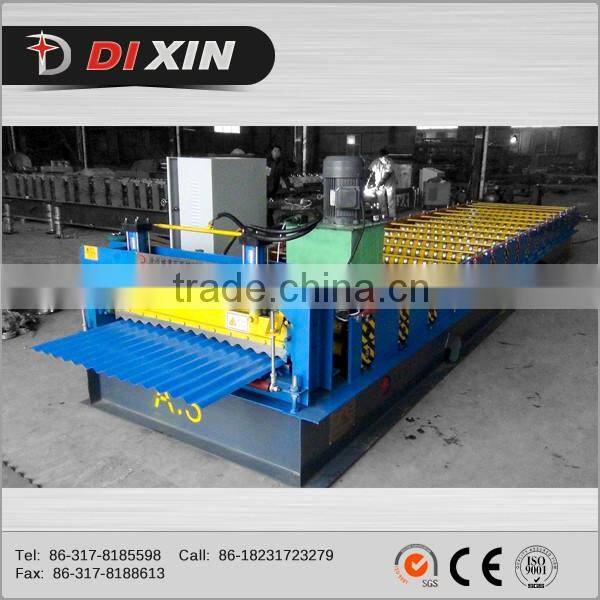

Below machine another kind of 825-75-18 corrugated roof sheet making machine.
DETAILED INFORMATION
| 1 | NAME | DX corrugated iron sheet making machine |
| 2 | APPLICATION | roll forming machine used for producing metal roof or wall panel |
| 3 | MATERIAL SPEC | colored steel sheet,galvanized steel sheet, aluminium sheet |
| 4 | THICKNESS OF COIL | 0.3-0.8 mm |
| 5 | ROLLER MATERIAL | high grade NO.45 forged steel,with hard chrome plating on the surface of roller withthickness 0.05 mm |
| 6 | SHAFT MATERIAL | high grade NO.45 carbon wrought steel |
| 7 | CUTTING BALDE | Cr 12 mould steel with quenched treatment |
| 8 | DIAMETER OF SHAFT | 75mm |
| 9 | THICKNESS OF MEDIUM PLATE | 16mm |
| 10 | MAIN FRAME | 300 H/U steel |
| 11 | NUMBER OF FORMING STEPS | 13 rows |
| 12 | PRODUCTIVITY | 10-12 m/min |
| 13 | MAIN MOTOR POWER | 4000W |
| 14 | HYDRAULIC STATION POWER | 4000W |
| 15 | HYDRAULIC PRESSURE | 10-12 MPa |
| 16 | CONTROLLING SYSTEM | PLC computer control |
| 17 | APPEARANCE SIZE | 6500mm*1500mm*1200mm |
| 18 | TOATL WEIGHT | 3.2 tons |
| 19 | VOLTAGE | 380V 3 Phase 60Hz or up to you |
| 20 | COLOR | blue or green |
| 21 | PACKING | waterproof package |
The whole introduction of roll forming machine
850 small type of corrugated steel roll froming equipment is divided into three parts,
roller forming parts, pressing parts, cutting knife.
Processes: Uncoiler—Roll forming machine—PLC system—Hydraulic system—
Mold pressing machine-Post cut
consist of

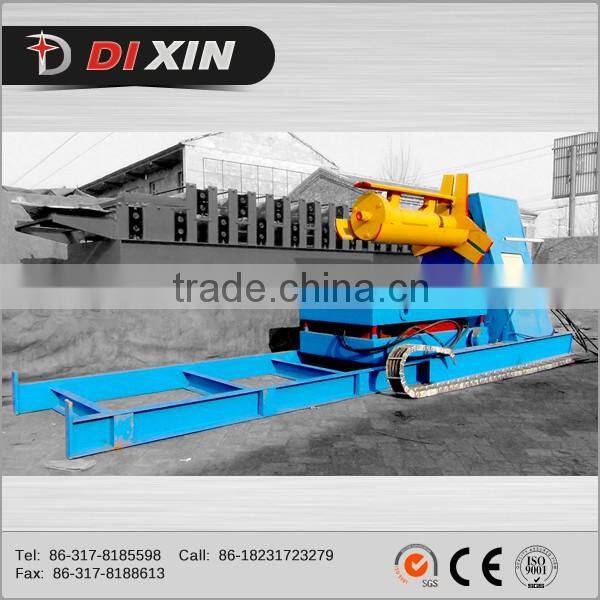

1 uncoiler and its base,
2 coil sheet guiding equipment
3 coll forming system
4 post cutting equipment
5 hydraulic station
6 controlling system
7 supporter table.
MAIN CONCERNS ABOUT steel sheet roller machine
1 Equipment maintenance. Easily.
| 1 | Roll forming machine can be installed and work at a workshop for a long time use and low maintenance cost against rust from rain or water.Also keep the air flow to make it dry |
| 2 | Lubricant should be feeded regularly to the machine gear,chain and moving parts to reduce friction. |
| 3 | Check the power lines connected right before starting roll forming machine by clicking the button |
| 4 |
Any inquiry about panel roll forming machine,just call us or e-mail us.A instant response and better advice will be available in 12 hours.If necessary,sevearl related technicans of forming machine will offer on-site service. TEL:0086-0317-8185598 |
2 Packing,shipping and installing
| packing | waterproof plastic package |
| shipping | ship by tianjin port in a container |
| installing | easy and safe.if necessary we can offer on-site technican |
3 Sale ends ,not service (service system)
| after-sale service |
one year warrantly and lifelong technical suport will be kind and effective provided. |
| on-site service |
we can send our technicians to you to give you onsite training. The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations and a daily wage of USD 50. |
4 Why us? We offer both-roof panel and forming machine
| ADVANTAGE of company | direct factory in China,hebei,botou good color steel sheet better steel roll forming machine warm-hearted service quatity gurantee |
| PROFILE of company | Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping. |
| CONTACT |
ADD: Fuzhuang Development Zone,Botou City,Hebei Province,Chima. TEL:0086-0317-8185598 FAX:0086-0317-8183398 |
Trapezoidal roof panel forming machine Click here directly
