High speed metal hat roll forming machine
- 30 Set / Sets per Month
- Tianjin
- T/T
Product Details
| Condition: | New | Type: | Tile Forming Machine | Tile Type: | Colored Steel |
| Use: | Step | Production Capacity: | 8-12m/min | Place of Origin: | Hebei, China |
| Brand Name: | DIXIN | Model Number: | hi speed roll forming machine, Customized according to customer requirement | Power(W): | 4KW |
| Voltage: | 380V | Dimension(L*W*H): | 7M*1.5M*1.5M | Weight: | 1.5T |
| Certification: | CE BV TUV SGS ISO | Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
High speed metal hat roll forming machine

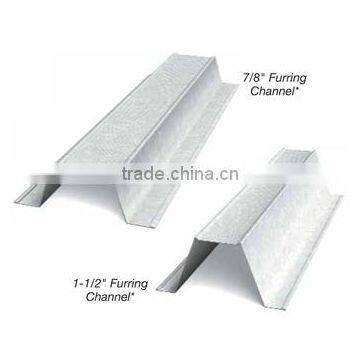

1. The panel drawing

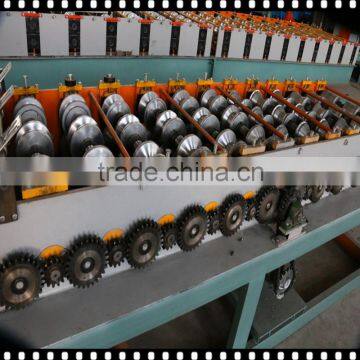

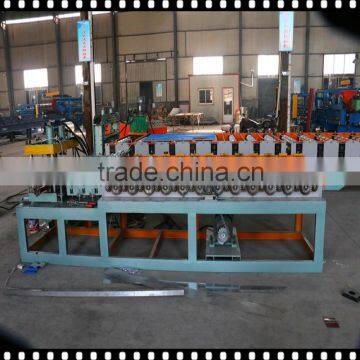

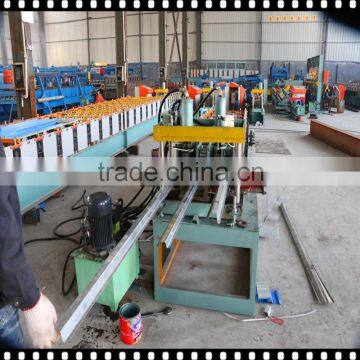

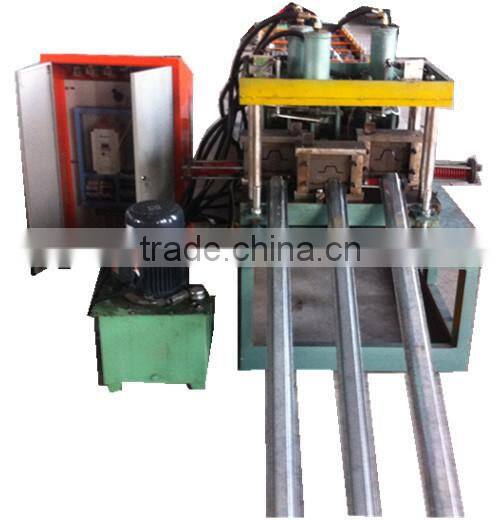

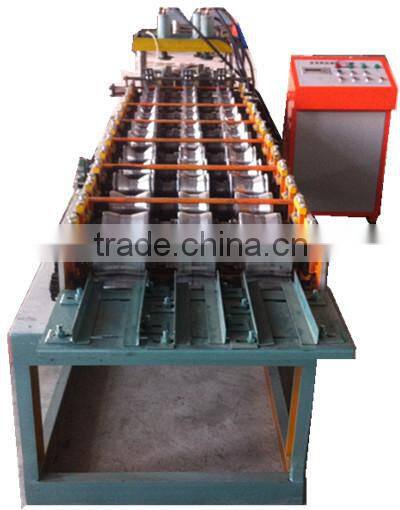

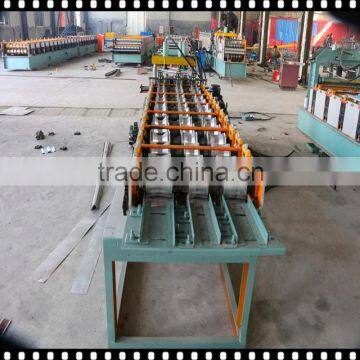

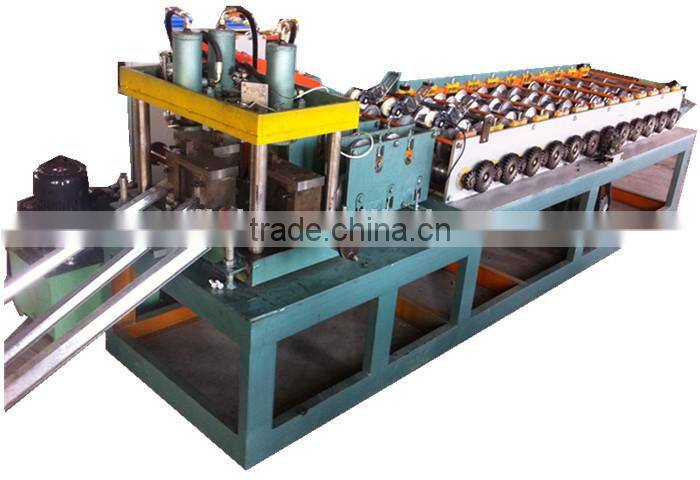

2. The real pictures
3. Technical parameters
| Model number | DX New Type Metal Stud and Track Roll Forming Machine |
| Rolled material | 0.3-0.8mm thickness, aluminium sheet, galvanized sheet, colored steel sheet and various steel plates |
| Effective width | 35mm |
| Feeding width | 50mm |
| Forming steps | 13 |
| Roller | 45# forged steel, hard chrome plating within 0.05mm |
| Diameter of shaft | 70mm |
| Main frame | 300H steel |
| Main motor power | 4 kw |
| Pump power | 3 kw |
| Medium plate thickness | 14mm |
| Sprocket chain | 1 inch |
| Drive type | by chain |
| Cutting Blade | Cr12, heat treatment 60-62°C |
| Frequency Converter | It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm). |
Remark: Above parameters are standard, we can design and make some change exactly according to your requirements.
4. The structure
1 set of manual decoiler
| Un-powered; Single head; |
1 set of main roll forming machines
| Steps: 13 Roller Material: 45# steel Line speed: 12m/min; |
1 set of computer control cabinet
| It adopts Taida PLC to control. The target piece length is adjustable and digit of it can be adjusted. It contains transducer, which can ensure the accuracy of length is ± 1mm. 5.7 inch touch screen, easy to operate Computed mode has two modes: Automatic and manual one. |
1 set of hydraulic System
| It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutter machine to begin the cutting job. |

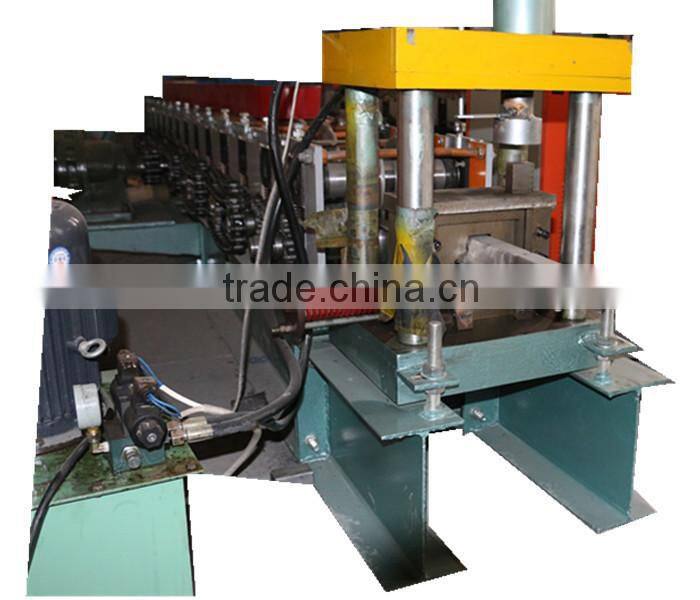

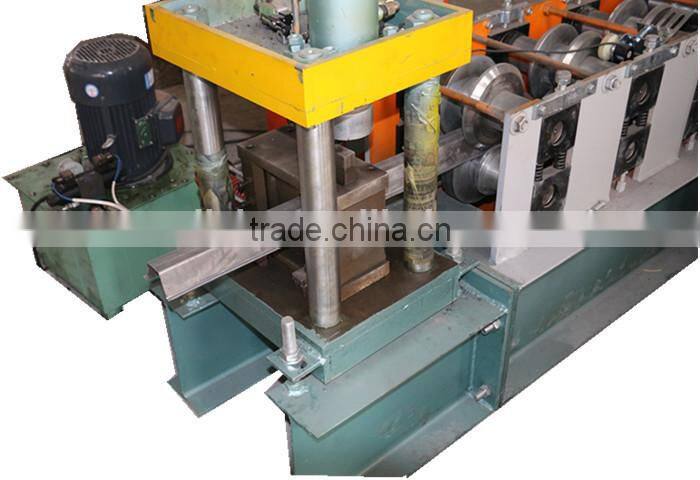

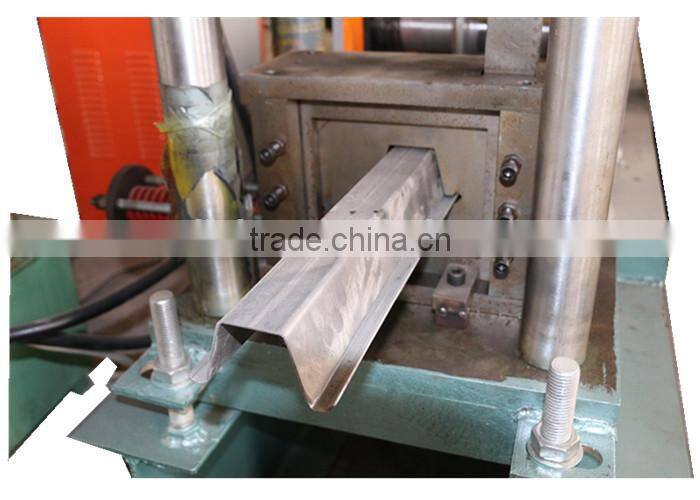

1 set of cutting mechanism
| It adopts hydraulic drive and automatic location to decide the dimention and cut the target products. |
1 set of counter
| One counter gauges length, pulses, and decides length |
1 set of output table
| It used to load the finished products |

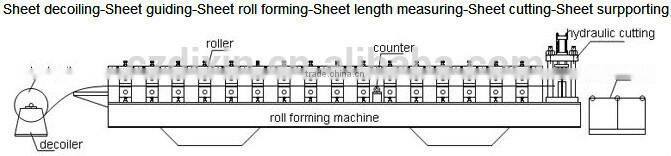

5. Working flow
We have professional foreign trade and design team. All kinds of roll forming machine can customized, so just send your panel profile and real enquiry to me.
6. Application
The roof tiles manufatured by our Roll Forming Machine Line are beautiful and durable. With advantages of saving space and easy operation. They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands, ancient architectures and modern villas.
We can professional manufacture all kinds of roll forming machines. For example:
hydraulic decoiler, roof and wall panel sheet roll forming machne, C/Z purlin roll forming machine, glazed tile roll forming machine, JCH hidden roof panel roll formin machine, sandwich panel production line, keel molding equipment, door frame roll forming machine, roller shutter making machine, arch bending machine, hydraulic shearing machine, simple slitting machine, etc.
We can customize your panel profile drawing well.
We have the most excellent technician.
Why choose us?
Professional | with 8 years' profesional manufacturing experience in roll forming machinery |
Profesinal production line,well -trained workers,strict QC standard | |
Main market | Our products have shipped around the world |
Norway,Denmark,Sweden ,Germany,Australia,USA,Brazil, Italy etc | |
Service | We have good and professional team |
We accept any drawings or your samples to develop new product | |
Any small problems will be solved at the most prompt time | |
We always offer relateive technical support,,quick response,all your inquire will replied within 24 hours | |
Certification | CE, SGS, ISO, BV, TUV |
Are you a trading company or manufacturer? | Manufacturer with factory |
What kinds of roll forming machine do you produce? | Roof and wall panel roll forming machine, glazed tile roll forming machine, C/Z purlin roll forming machine, door frame roll forming machine, curving machine, floor deck roll forming machine, double layer roll forming machine and all kinds of roll forming machine |
Is Customized filter available? | Yes,please offer your required specifications and drawing |
Do you Accept OEM service? | YES! |
what’s your delivery terms? | (1)FOB (2)CFR (3)CIF |
What's your Delivery Time? | Normally within 30 days,please confirm with us before order! |
What's the Payment Terms? | Usually,30% T/T as deposit,70% before shipment by T/T |
L/C acceptable for large amount. | |
Scrow ,Paybal,Alipay are also ok | |
How you pack products? | Normally, plastic film package, fixed in container very well, we will according to customers’ requirement. |
What'syouravailable port of Shipment? | Main Market Western European 20% |
