Roll Slitting Machine

Roll Slitting Machine thumbnail-1
Roll Slitting Machine thumbnail-2
Roll Slitting Machine thumbnail-3
Roll Slitting Machine thumbnail-4
Roll Slitting Machine thumbnail-5
Roll Slitting Machine thumbnail-6
Roll Slitting Machine photo-1
Roll Slitting Machine photo-2
Roll Slitting Machine photo-3
Roll Slitting Machine photo-4
Roll Slitting Machine photo-5
Roll Slitting Machine photo-6
US$ 3,500 - 5,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
dixin
Model Number:
slitter
Contact Supplier Request Quote Chat Now
Cangzhou Dixin Roll Forming Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name dixin
Model Number slitter
After-sales Service Provided Engineers available to service machinery overseas

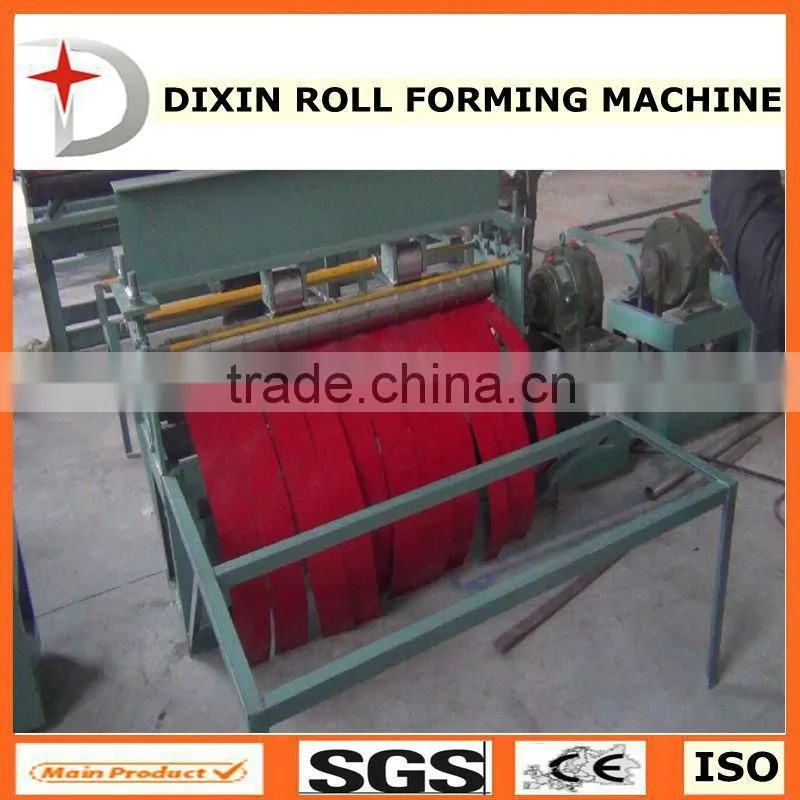

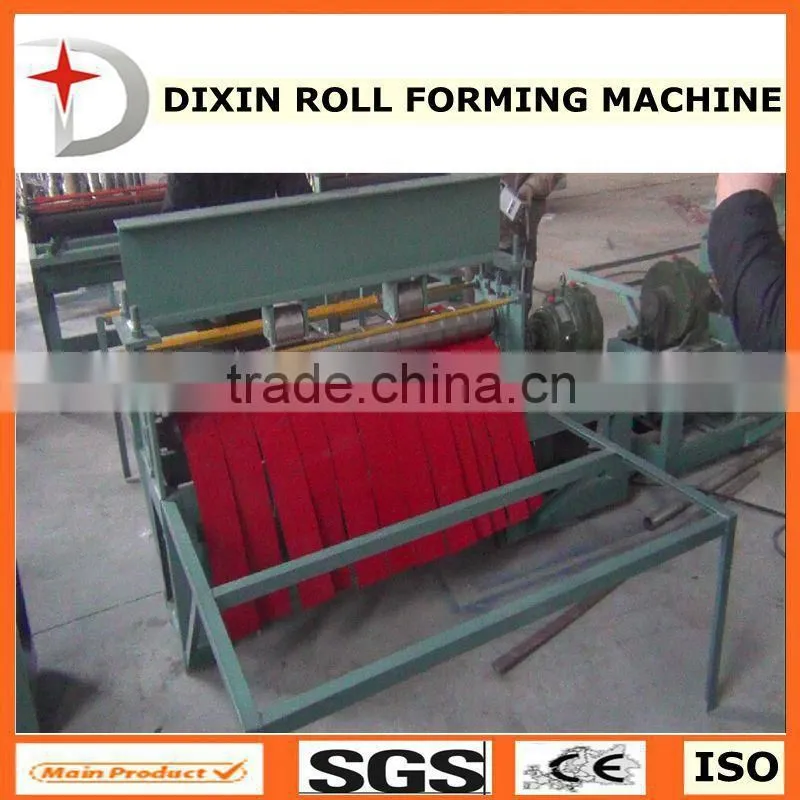

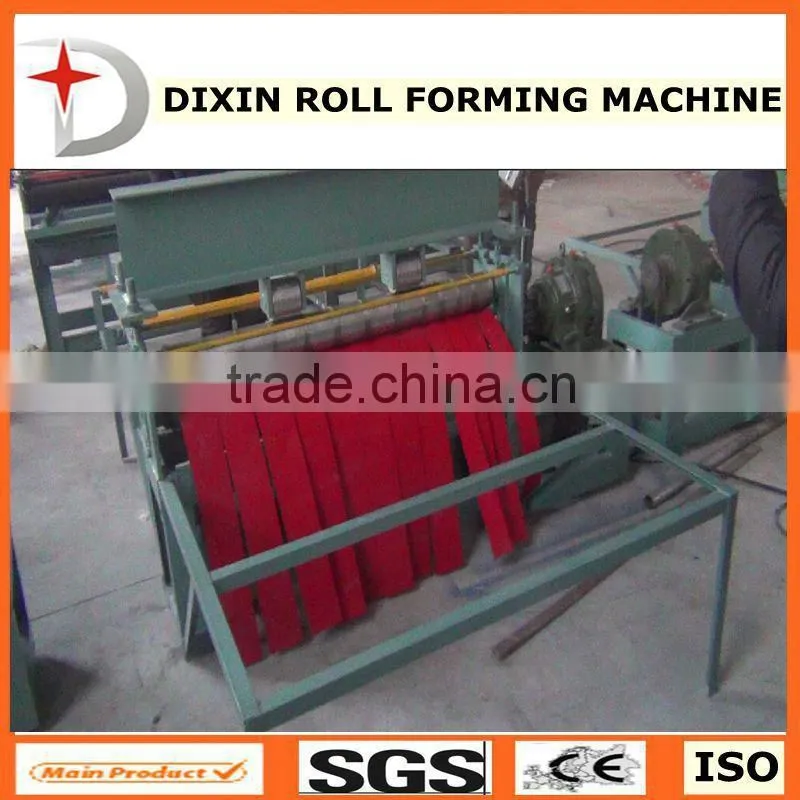

Roll slitting machine



Product Description
Roll slitting machineRoll slitting machineRoll slitting machineRoll slitting machineRoll slitting machine

 Roll slitting machineRoll slitting machineRoll slitting machine





(1) Material of frame: (high grade) 80mm H shape steel welding
(2) Thickness of middle plate: 12mm
(3) Step of forming roller: 2steps
(4) Diameter of shaft (solid shaft): 61mm
(5) Material of shaft (solid shaft): (high grade) 45# Steel, quenching and tempering treatment
(6) Treatment of rollers: Hard chromize coated
(7) Drive type of roll forming machine: Drive by chain
(8) Chain: 19.05 mm (high grade)
(9) Bearing: 6210 (high grade)
(10) Reducer: 5# (high grade)
(11) Power of main motor: 2.2KW
(12) Voltage: 380V/50Hz/3phase
(13) Line speed: About 10-12 m/min
(14) Feeding width: 1000-1200mm
(15) Suitable coil thickness: Accepted thickness for steel coil is 0.35mm-0.80mm.
(16) Cutter: 3sets
(17) Appearance size of main forming machine: 1.5m (length)*1.0m (width) *1.2m (height)
(18) Weight of main forming machine: About 0.9T
(19) Electrical parts: DELIXI or CHINT



many pieces available,width can be adjusted.



We can design machine according to your request,please send your panel profile to me!



Email:cocowang @



Tel:+86 18231737651



Skype:105
