dixin 2015 new design steel coil slitting and winding machine:
1.Parameters:
1) Max width:1300mm thickness:0.3-2mm prepainted sheet, galvanized sheet,zinc sheet
2) Slitting pieces:adjustable (cutting blades can be adjustable for any width pieces; different width already slitted for recoiler adjusted by spacer:the core of recoiler)
3) Working speed:10-15m/min,
4) Total power:about 22 KW
5) Simple automatic uncoiler(uncoiler core can be easily taken away and changed)
Power:4KW
PLC control system
Foreward and backward
Two speed control
Automatic stop bar(to make the whole line work at the same speed automaticly)
6) Electric control system (Famous Delta PLC controller + Delta inverter + Button control (same as your factory machine,same use method)

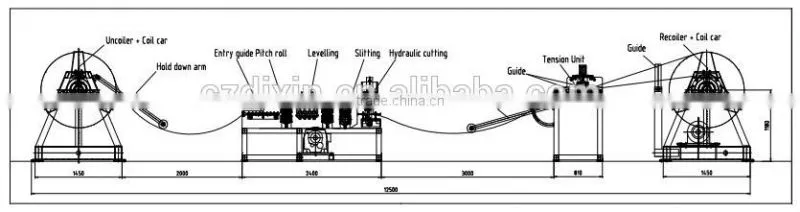

2.Production line
Include:
1) Simple automatic uncoiler without moving car.adjustable coil core diameter
2) Entry guide pitch roll;leveling part (5+7 rollers);adjust slitting shaft and blades;hydraulic cutting by PLC control and set length;4KW Motor and 4 KW Pump station; scrap recoiler
3) Tension unit:Hold down arm+Separator + Tension Unit

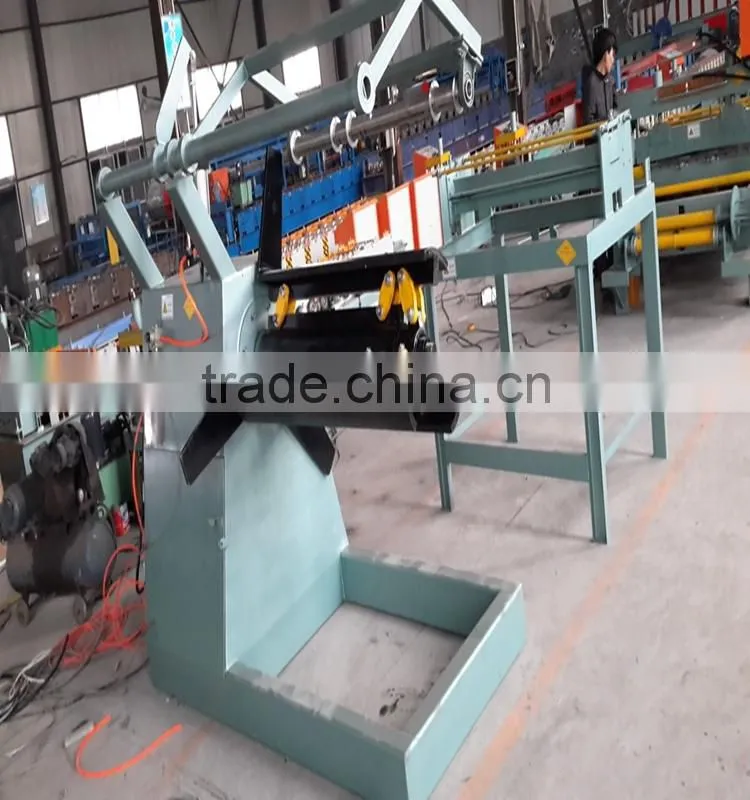

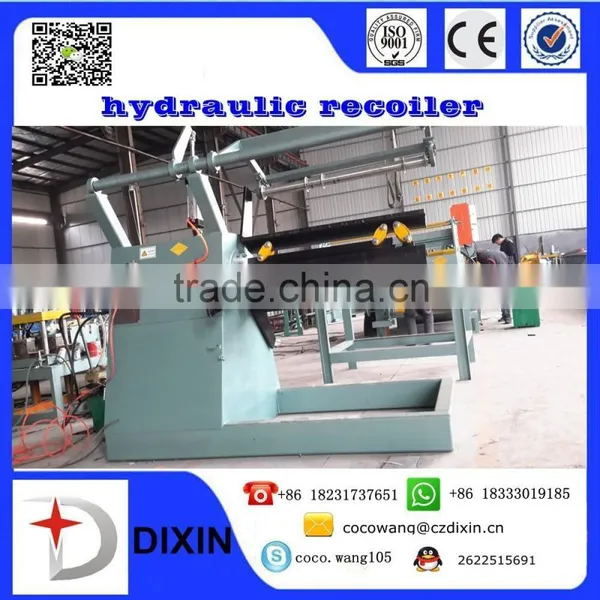

4) Hydraulic recoiler with moving car:
Guide as shanghai picture shows with hold arms.
With moving car for more easy and fast work.
Coil core diameter:508-610mm
3 Machine Picture

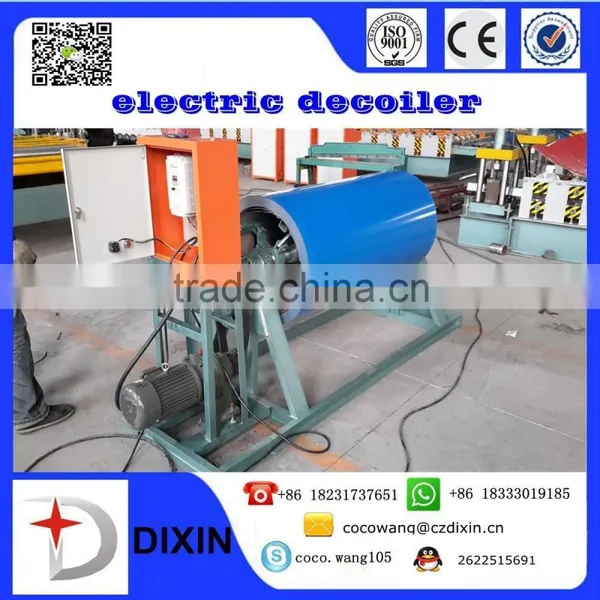

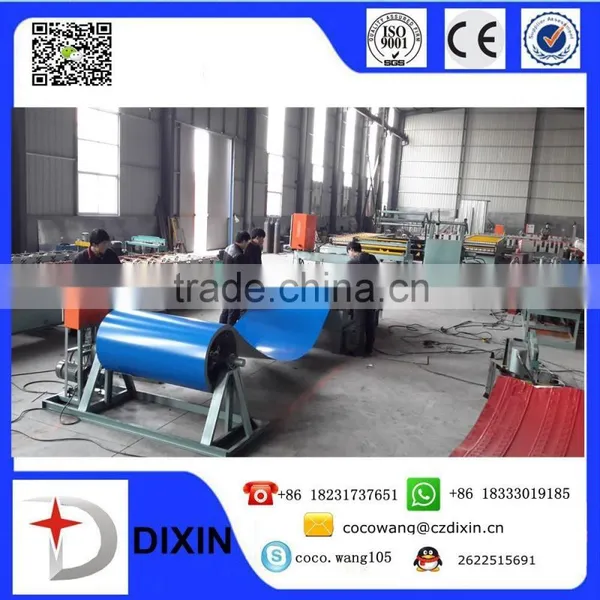

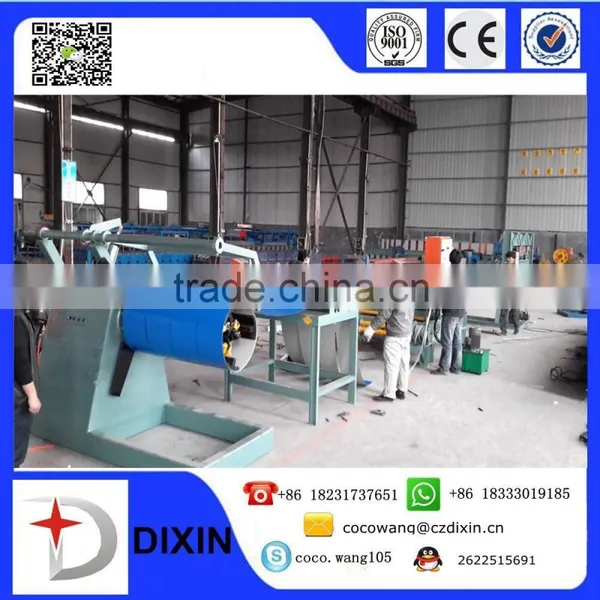

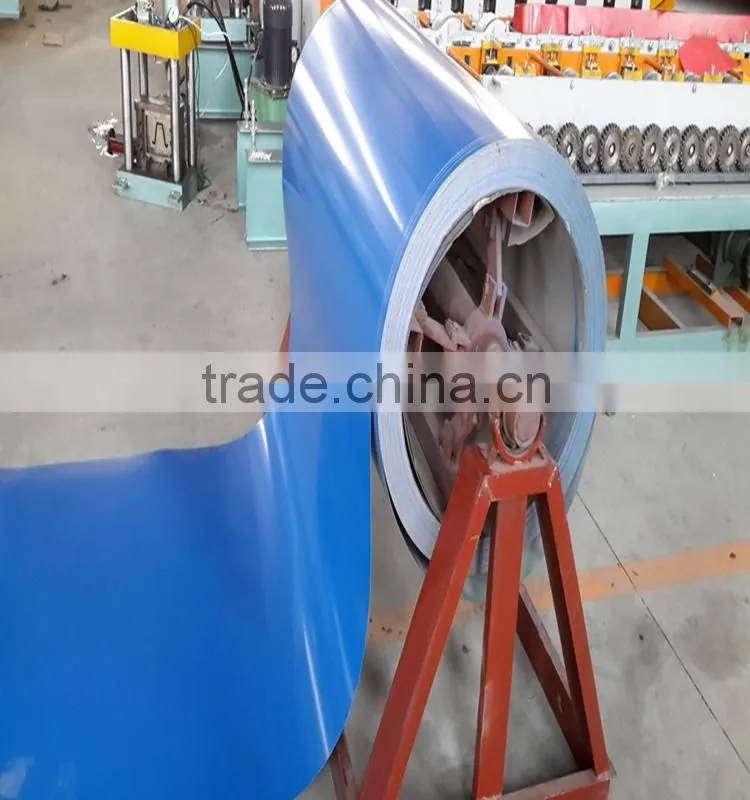

A sample automatic decoiler
Simple automatic uncoiler(uncoiler core can be easily taken away and changed)
Power:4KW
PLC control system
Foreward and backward
Two speed control
Automatic stop bar(to make the whole line work at the same speed automaticly)

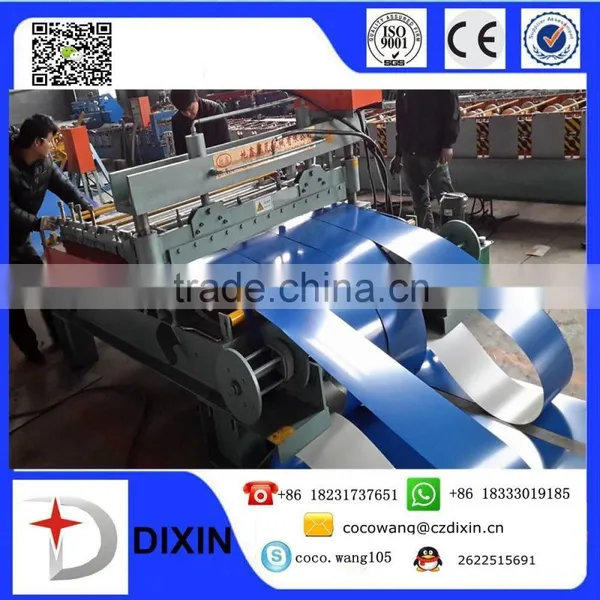

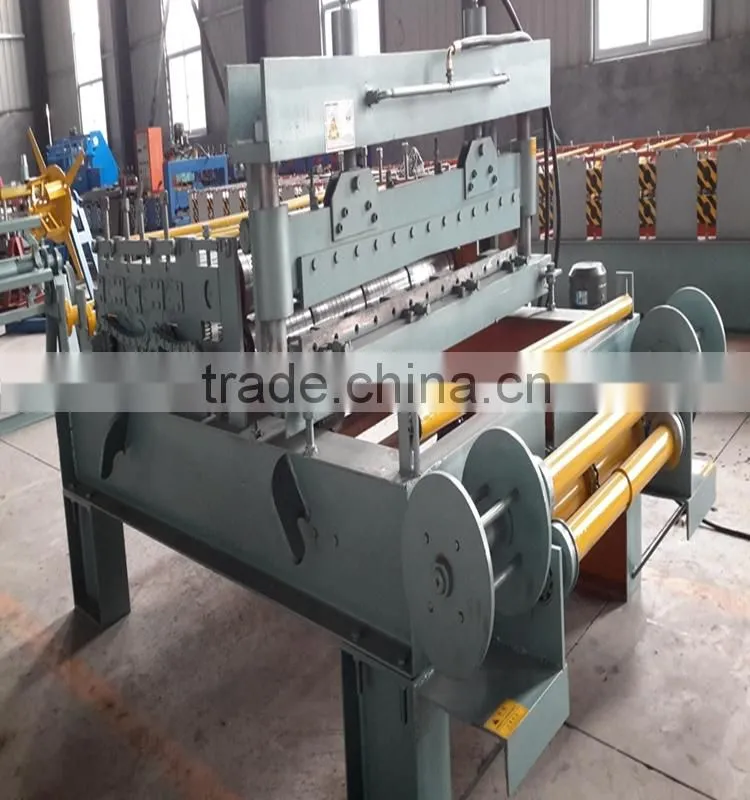

B. Slitter and Cutter as picture show
1) We add PLC control part for hydraulic cutting and length setting additionally(the picture and their design does not have)
2) Entry guide pitch roll;leveling part (5+7 rollers);adjust slitting shaft and blades;hydraulic cutting by PLC control and
Length set;4KW Motor and 4KW Pump station; scrap recoiler
3) PLC control+4KW Motor and 4 KW pump station

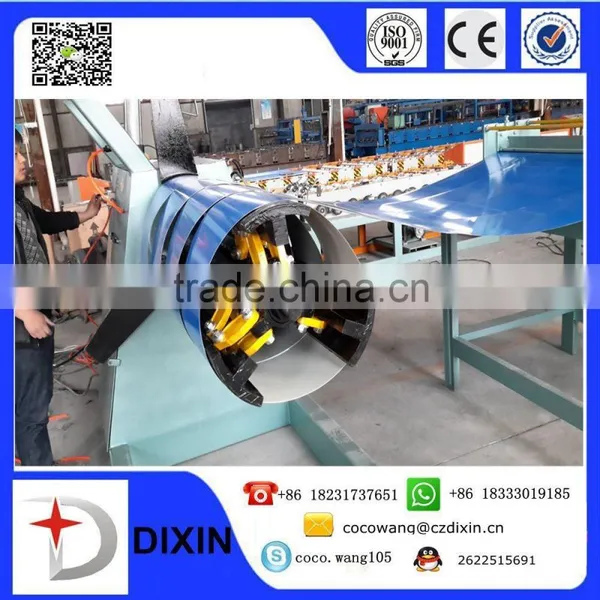

C. Tension Unit as picture show
Tension unit:Hold down arm+Separator + Tension Unit
Separator separate the steel strip. fabric, rubber roll, diameter 80mm.
1 We design the one with moving car.
2 Hold down arms
3 Separate spacer
4 PLC control speed and automatic touch stop bar.
5 Motor:4KW,Pump station:4 KW
6 Support Weight:5 tons

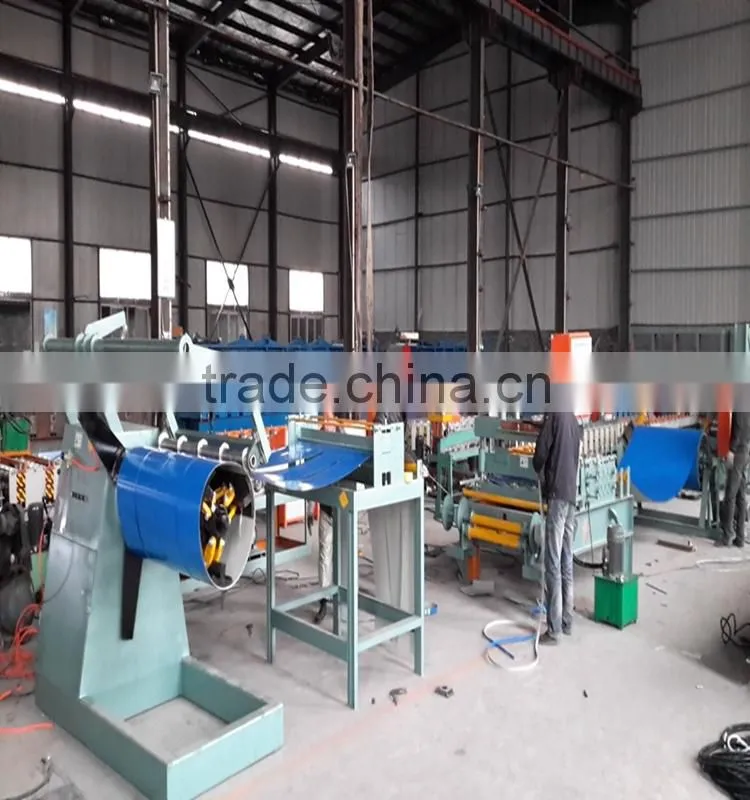

Whole line picture:
6. Payment term
TT, you should pay 30% as the deposit on the order day, then pay 70% before delivery when you inspect goods well in factory or by video
7. Warranty
12 months, and lifelong technical support service
8. Installation
If you need, we will send one technician to your factory to install & testing the machine. You should assist the technician to get Visa and pay for flight tickets and local accommodation, and pay 80 USD/day for salary.
9. Package
Standard export package, water-proof package, covered with plastic film
