populer rolling shutter machine price , roller shutter door machine , rolling shutter strip making machine

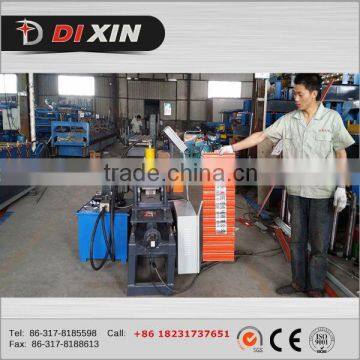

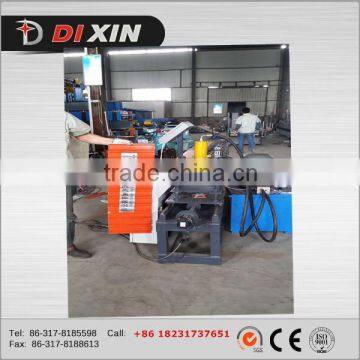

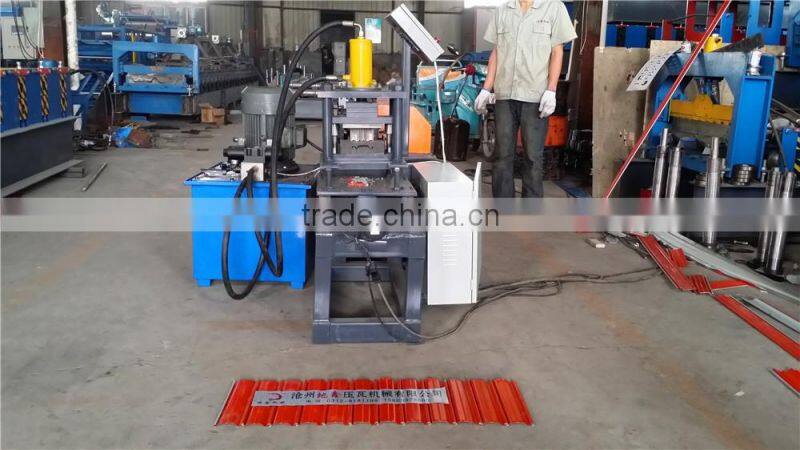

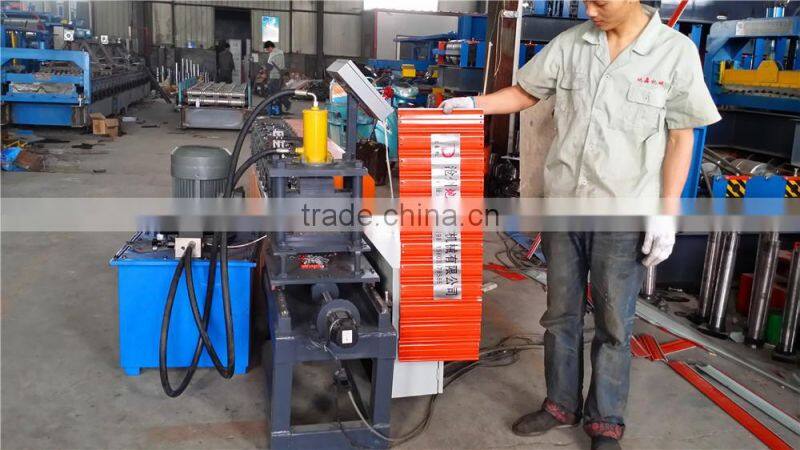

Shutter door roll forming machine
For the Shutter door roll forming machine, it is a machine will make shutter door slats, Our machine can do thickness for 0.3-1.2mm, the shape will be design by your demand.

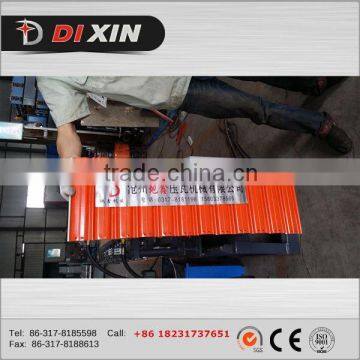

The product we can do :

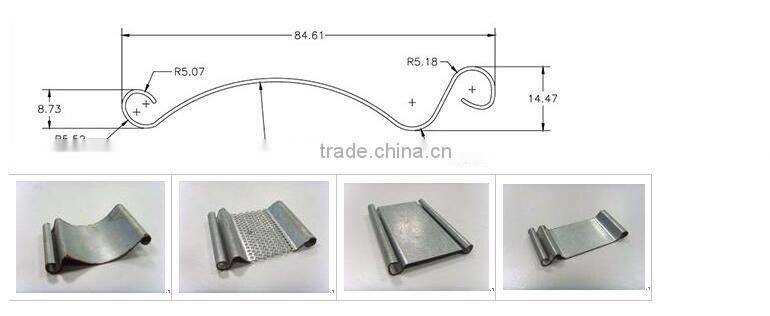

As a manufacturers,we can make the High Quality Roller Shutter Slat Roll Forming Machine Price by customer`s demand, with a profile drawing and thickness, we can do design the machine quickly.Here is some profile drawings for you reference.
Parameters of Shutter door roll forming machine
Raw material
Type: colored steel plate, galvanized plate, or aluminium plate
Thickness: 0.5---1.5 mm (As customer`s need)
Material hardness: 550 Mpa---350 Mpa
Material width: 117mm-310mm (According to customer`s profile)

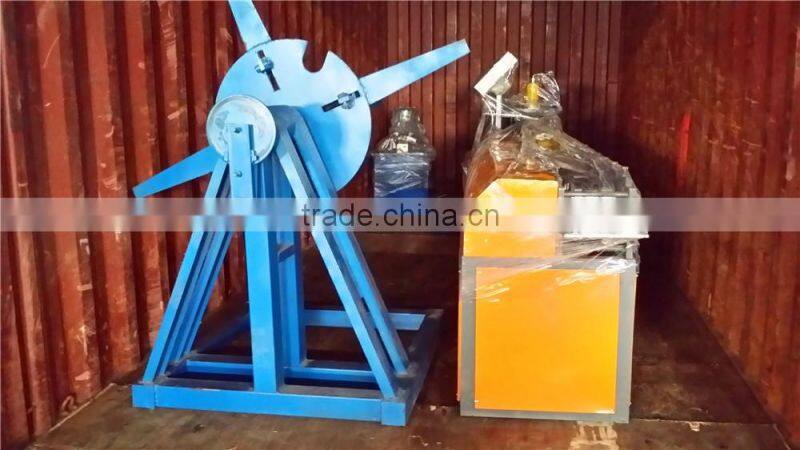

Decoiler
Max width: 300mm (According to customer`s profile)
Inner diameter: 450-650mm (According to customer`s profile)
Max Loading capacity: 5 T

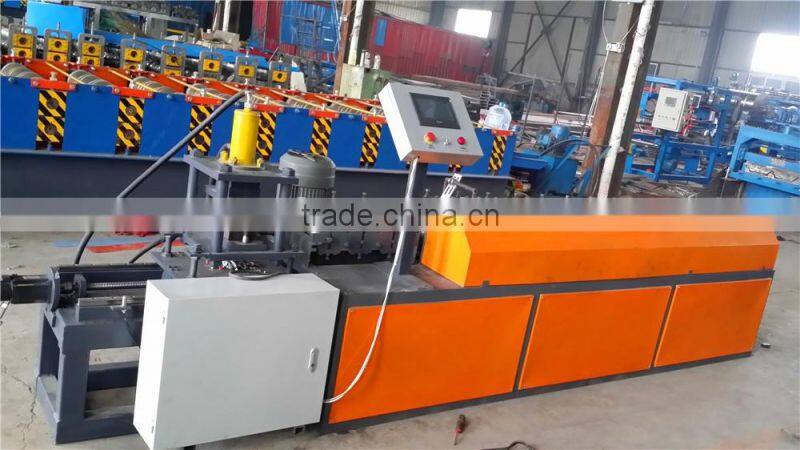

Main roll machine of Shutter door roll forming machine
Working efficiency: 0-30m/min
Forming by rolling: Roll 12 rows (Final rollers depend on the design)
Roller material: Gcr12MoV quenched
Shaft material: 45#steel processing
Diameter of shaft: 50mm (Final rollers depend on the design)
Main part power: 5.5kw (Depend on the thickness of material and size of machine)
Hydraulic motor power: 3kw (Depend on the thickness)
Scissor material: Gcr12MoV quenched
Roller material: Gcr15MoV
Voltage: 380V, 50HZ,3 phase (As customer`s need)
Transmission: Gear box (Chain and gear box depend on thickness and customer`s need)

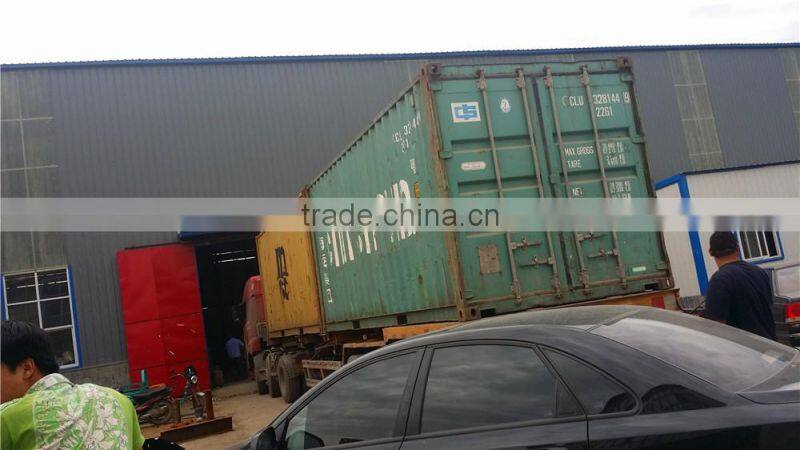

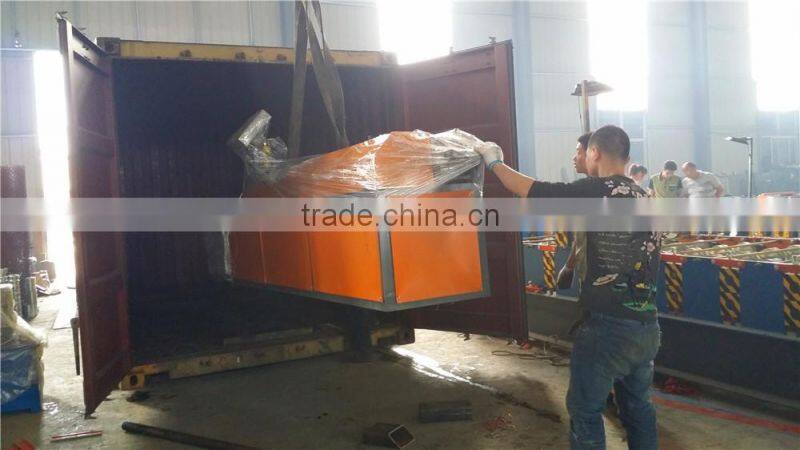

Shipping
