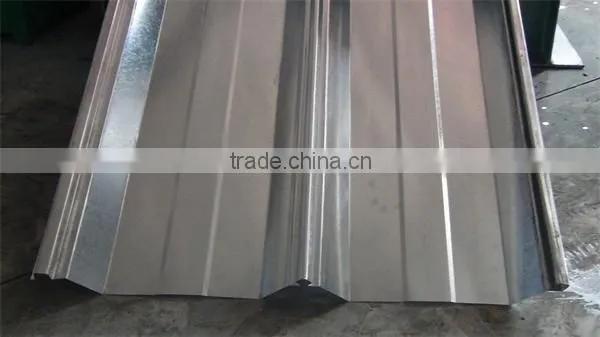

820 joint hidden roof panel roll forming machine is used for producing joint hidden roof panels.
This kind of panels is applicable to the different roofings and buildings.
The water proof capacity is good. It is convenient to fix. Avoidal the harmful resulit from the screw.
This kind of machine has the best quality and the best price.
It has accurate measurement and easy operating.
We can design and manufacture the special type machine according the customers’ requirement
and we could provide technical guiding, production, installation, debugging and maintenance service
to all customers.

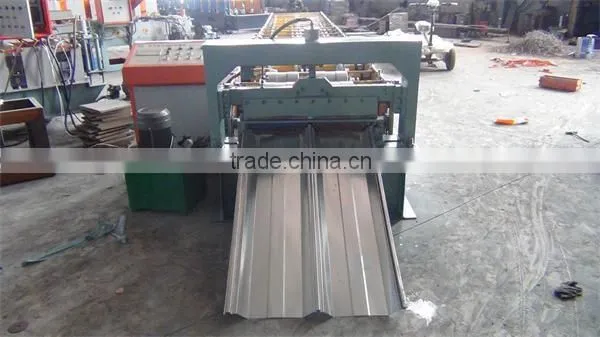

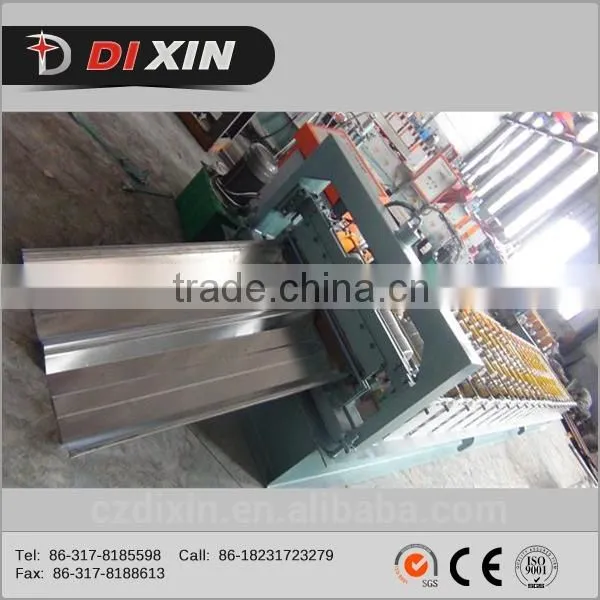

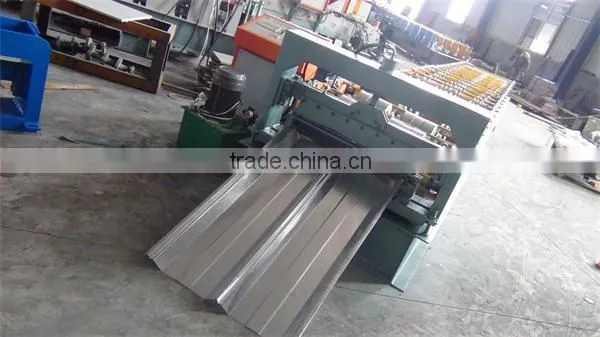

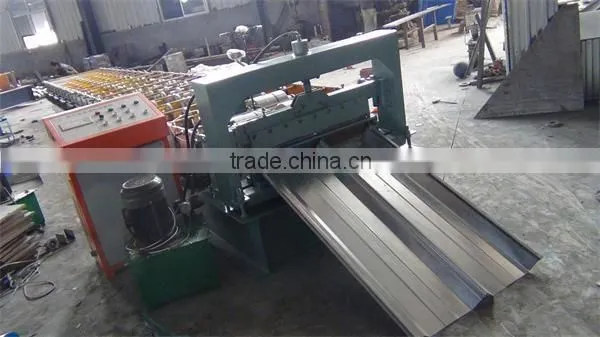

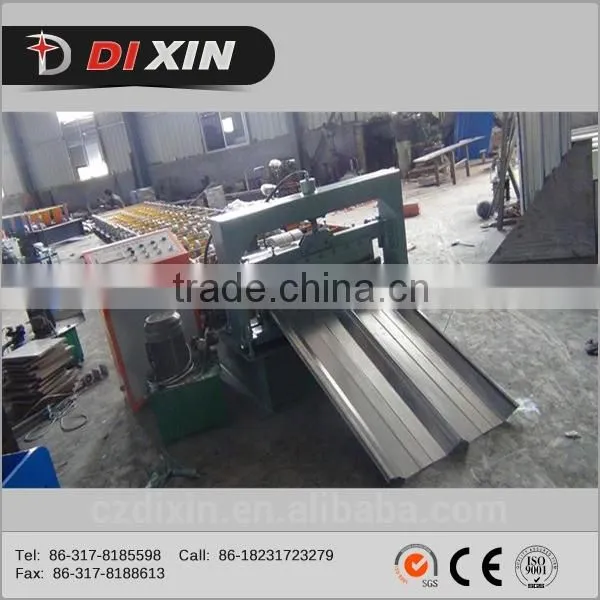

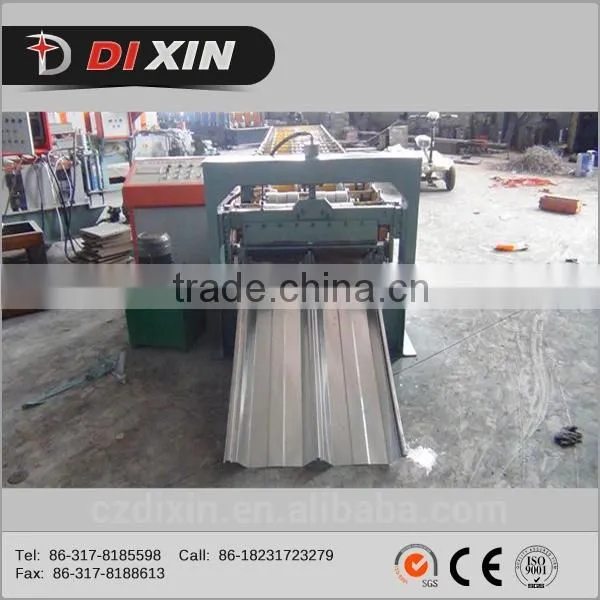

The machine consist of uncoiler and its base, coil sheet guiding equipment, roll forming system,
post cutting equipment, hydraulic station, controlling system, supporter table.
Technical parameters:
1.machine sizes: 9.6m*1.3m*1.5m4 kw
2.main motor power: 4kw with cycloidal reducer
3.hydraulic station power: 4kw
4.raw material thickness: 0.2-1.2mm
5.diameter of principal axis: 70mm
6.electric tension: 380V 50Hz 3Phase or as the customer’s requirement
7.material of roller: high grade 45# forged steel plated with hard chrome
8.processing speed: 8-10m/min
9.material of cutting: Cr12 mould steel with quenched treatment
10.kind of drive: 0.6 inch chain link bearing model 6210
11.roller station: 20 rows
12.weight: 5T
Equipment maintenance
Maintenance of roof panel roll forming machine is quite easy.
We recommend that you regularly feed lubricant to the machine gear, chain and moving parts to reduce
friction and avoid rusting. Make sure the power lines are properly connected before starting the machine,
and at regular intervals, change the gear oil and hydraulic oil.
Packaging
Our roof panel roll forming machine is wrapped in a waterproof package
Service
We provide a one year warranty and lifelong technical support will be provided
We can send our technicians to you to give you onsite training.
The training period would be for no more than one week with the customer paying for the visa, return ticket,
food, accommodations and a daily wage of US100.
