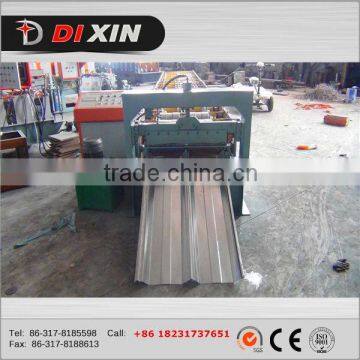

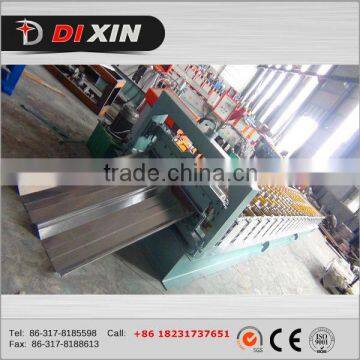

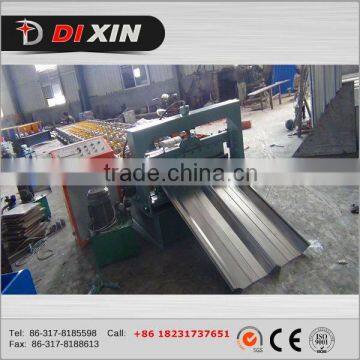

high quality standing seam metal roof machine used in stadium and gymnasium
1.Panel Profile:
We also can design and produce orther size self lock standing seam roofing tile ,welcome to send us your specification or drawing ,we will give you satisfied solution.
Machine components:
De-coiler------------------------------------------1set
Forming machine--------------------------------1set
Cutting device -----------------------------------1set
PLC control box --------------------------------1set
Hydraulic pump station-------------------------1set
Production support table-----------------------1set
Techincal description:
Decoiler
Coil inner diameter:500-600mm
Max coil width:1000-1250mm
Carrying capacity:5000kg

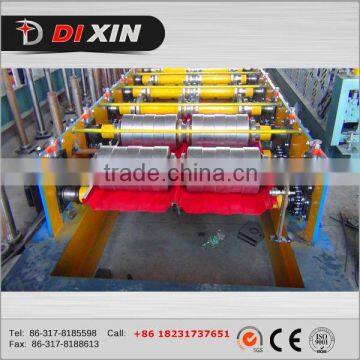

Forming Device
Shaft material:high grade No.45 steel after treatment
Roller diameter:70mm
Roller Material:45# steel polished and coated with chrome HRC55-60°
Roller steps:14groups
Chains transport:1inch chains transmission
Forming Speed:10-12m/min
Main motor power:380V 3PHASE 50HZ
Power:4kw
Mid-plate thickness:16mm
Frame.300 “H”steel
Plating hard chrome,then forming.
Cutting Device
Hydraulic shearing
Hydraulic power:3kw
Blade material,Cr12 steel with quenched treated 60-62°C
Cutting system,Adopt hydraulic drive,automatic cutting after forming,no distorting and wasting,high level safety factor.
Controlling System
Type: PLC Frequency Control System with touch screen
PLC Brand: Japan Panasonic
Encoder Brand: Omron
Length Error: ±2mm
Output table
It is simple and used to load finished product.
Length:6m
